DN50 2＂BSP Double Connection Airline Ball Valve

2＂BSP Double Connection Airline Ball Valve, with flange inlet and 2X 2”BSP thread outlet. The air through it when loading and discharging. It also used with N2 protection in special condition. 1/4”BSP gauge connection and handle with TIR. The airline valve must be opened before other operations.

Email : panlijuan@bgjx.cn

WhatsApp : +8618136395626

PDF Download

Product Details

Specification

Design Press. 10bar（145PSI）

Test Press. 15Bar （217.5PSI）

Temperature -40℃～200℃ （-40℉～392℉）

Standard EN14432 AND ASME Ⅷ DIV 1

Sealing PTFE

Weight 2.5Kg

Fitting Details

BG0234X0X-X

TYPE

DWG	Thread TYPE
BG023400X-X	2X2＂BSP Male
BG023410X-X	2X2＂NPT Male
BG023420X-X	2＂BSP Male +2＂NPT Male

DWG	Material
BG0234X0P-X	304
BG0234X0R-X	316L
BG0234X0T-X	WCB/Carbon

DWG	Options
DWG	Handle Direction: L or R	Pressure Gauge Bracket Y
BG0234X0X-L	L	×
BG0234X0X-LY	L	√
BG0234X0X-R	R	×
BG0234X0X-RY	R	√

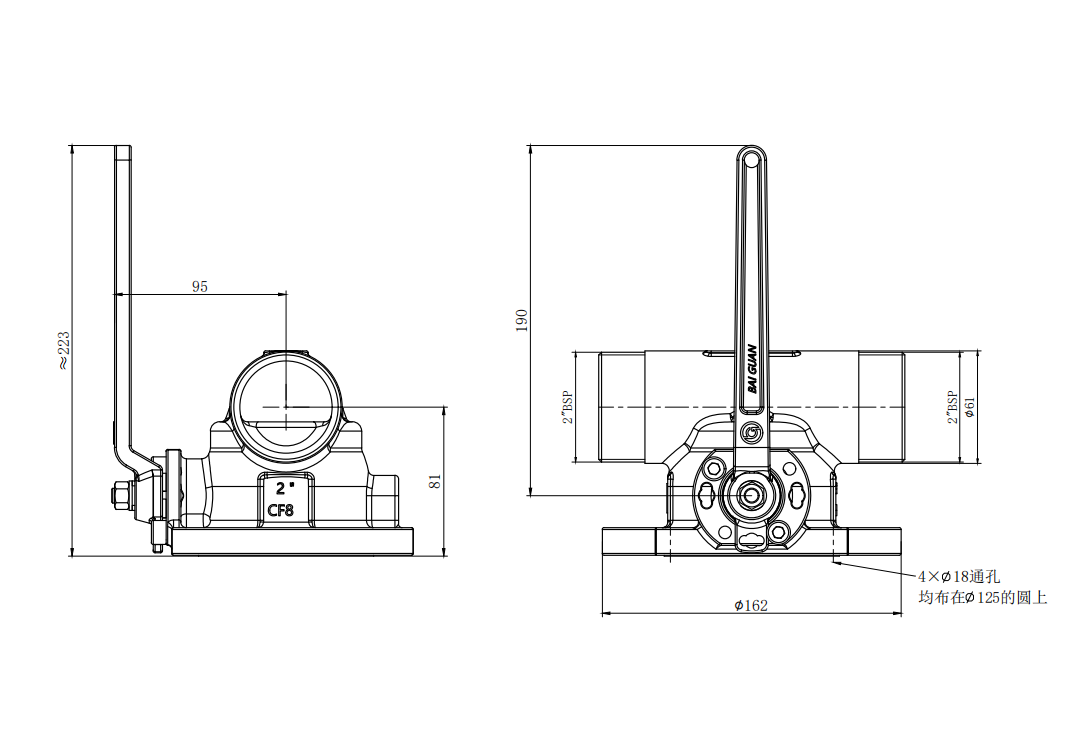

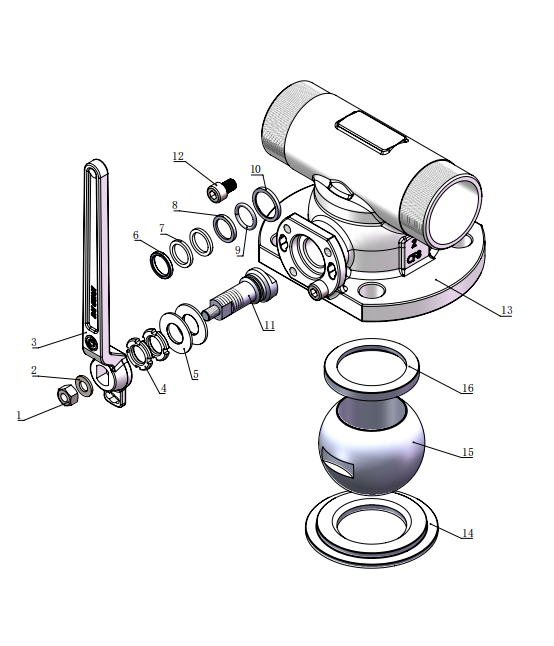

Part Drawing

No.	Part No.	Part Name
1	BG800306P	Nut
2	BG800604P	Washer
3	BG021711P	Handle
4	BG800314P	Nut
5	BG800608P	Spring washer
6	BG025901P	Ring
7	BG025902F	PTFE
8	BG025903F	PTFE
9	BG025904U	O Ring
10	BG025902F	PTFE
11	BG025905RS	Stem
12	BG800105P	Bolts
13	BG023401X	Valve body
14	BG025909F	PTFE
15	BG025906X	Ball
16	BG025907F	PTFE

Installation Drawing

Item	Part Name	Part No.
1	Weld In Flange	BG2500P-190X
2	PTFE Gasket	BG802842FQ
3	Screw Kits	BG820109P
4	Gauge guard	BG023905P
5	Pressure Gauge(Range 0-Xbar，1/4＂BSP) Gauge	BG804500P-X
6	2＂BSP Double Connection Airline Ball Valve	BG0234X0X-X
7	Dust Cover ASSY	BG807530X-X
7	Dust Cover ASSY	BG807531X-X
