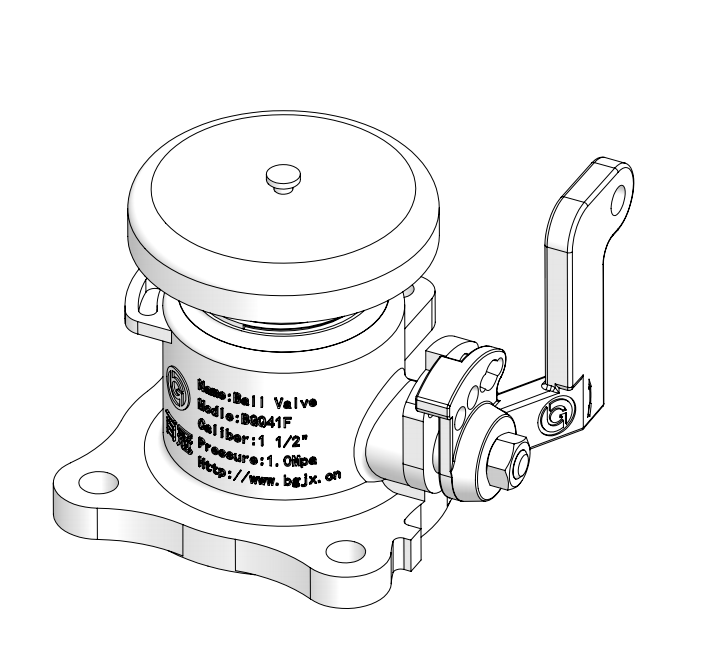

DN40 1.5” BSP Airline Ball Valve(Synchronous action with Bottom valve)

BG022100P-X

304

BG022100R-X

316L

BG022100T-X

WCB/Carbon

Filter ASSY

Gauge ASSY

BG022100X-N

×

×

BG022100X-WY

√

√

BG022100X-W

√

×

BG022100X-Y

×

√

BG0025F-350P/R/T

Welded Flange

BG901071P/R/T-B

Welded Flange (Welded U-Shaped Bend)

BG0032F-350P/R/T

Welded Flange (Recessed Flange)

BG901303P//R/T

Adapter Flange

BG5700P-192P/R/T

Flange Cover (Spare Port)

BG820130P

Bolt Package（4×M10）

BG804500P-X

Pressure Gauge(Range-0-Xbar，1/4＂BSP)

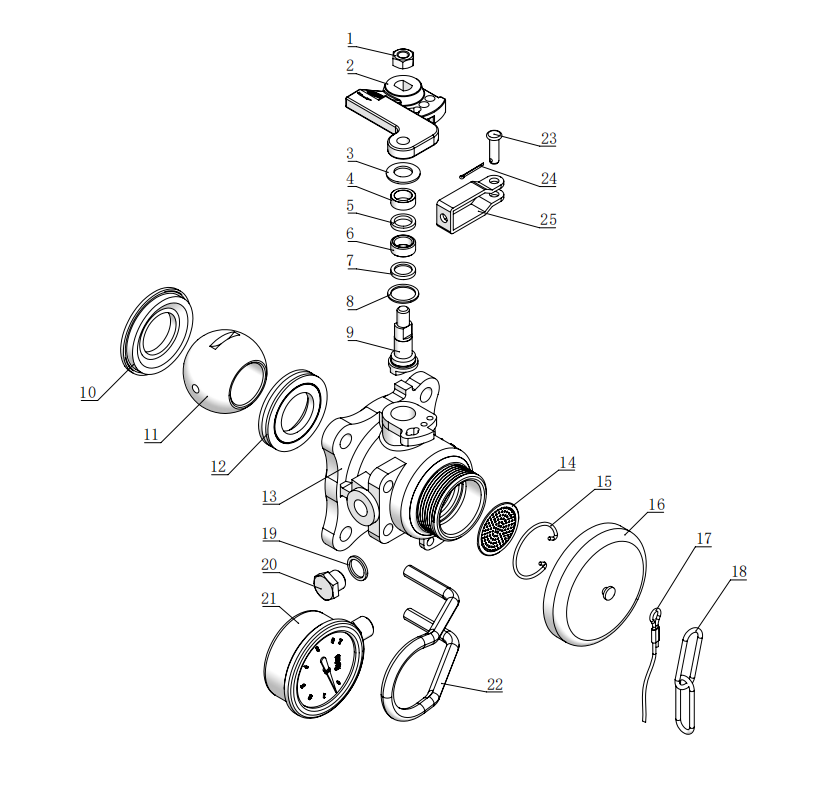

1

BG800313P

Self-locking nut

2

BG022102P

Handle

3

BG801001P

Washer

4、6

BG020111R

SS ring

5、7、8

BG020116F

Seal PKG for spindle

9

BG020112RS

Spindle

10、12

BG020117F

Seal PKG for ball

11

BG020103X

Ball

13

BG020102X

Valve body

14、15

BG020119R

Filter ASSY

16、17

BG022010X

Dust cover ASSY

16、18

BG022011X

Dust cover ASSY

19、20

BG020118X

Screw and seal

21

BG804500P-7

Gauge

22

BG020115P

Gauge guard

23

BG802502P

Shaft

BG803501P

Locking ASSY

24

BG800518P

Pin

25

BG022103P

U Connection

Repair Kit

BG022012X

9、11、25、26

Seal Kit

BG020127F

5、7、8、10、12、19

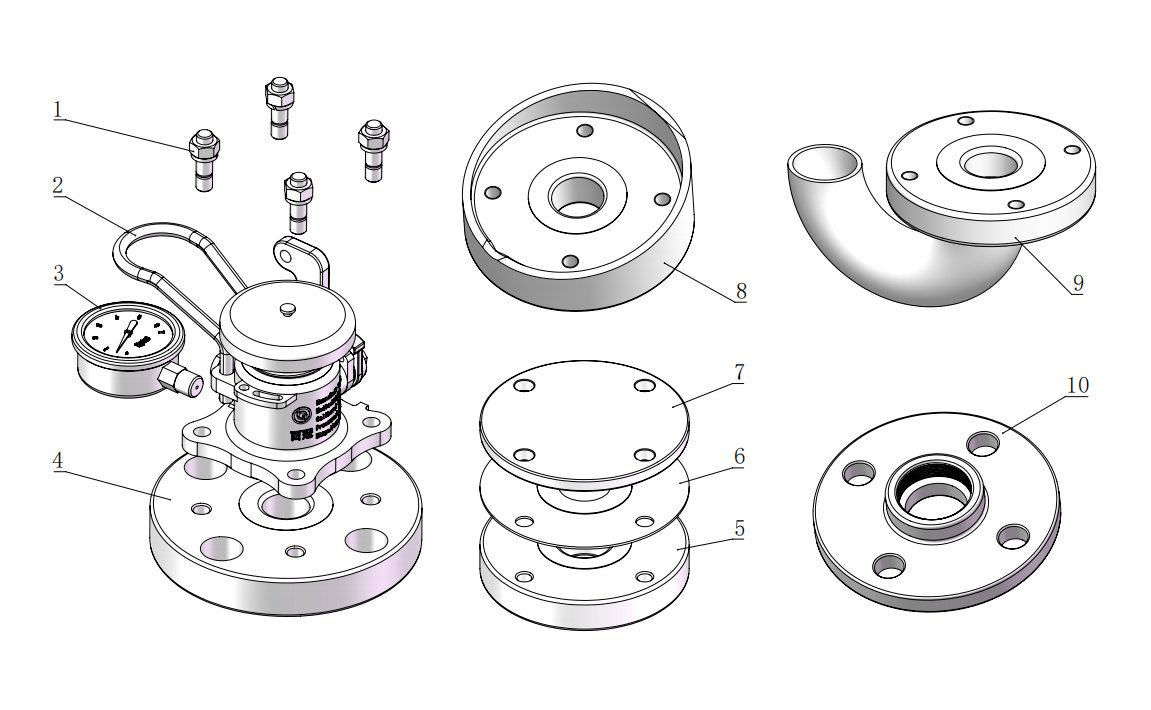

1

Screw Kits

BG820130P

2

DN40 BSP Airline Ball Valve

BG020100X-X

3

Pressure Gauge(Range-0-Xbar，1/4＂BSP)

BG804500P-X

4

Adapter Flange

BG0060P-350X

5

Weld In Flange

BG0025F-350X

6

PTFE Gasket

BG802870FQ

7

Blind Flange

BG5700P-192X

8

Weld In Flange

BG0032F-350X

9

Welded Flange (Welded U-Shaped Bend)

BG901071X-B

10

Adapter

BG901303X
