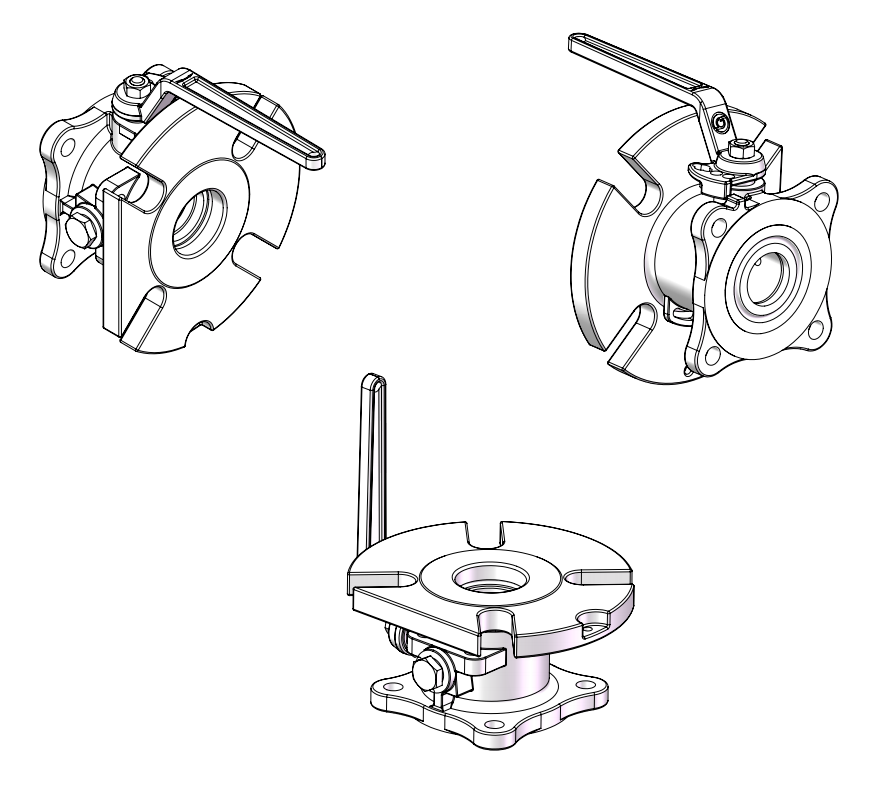

DN40 1.5” Flanged Airline Ball Valve

1.5” Flanged Airline ball valve, with flange inlet and DN40 flange outlet. The air through it when loading and discharging. It also used with N2 protection in special condition. 1/4”BSP gauge connection and handle with TIR. The airline valve must be opened before other operations.

Email : panlijuan@bgjx.cn

WhatsApp : +8618136395626

PDF Download

Product Details

Specification

Design Press. 10bar（145PSI）

Test Press. 15Bar （217.5PSI）

Temperature -40℃～200℃ （-40℉～392℉）

Standard EN14432 AND ASME Ⅷ DIV 1

Sealing PTFE

Weight 1.5Kg

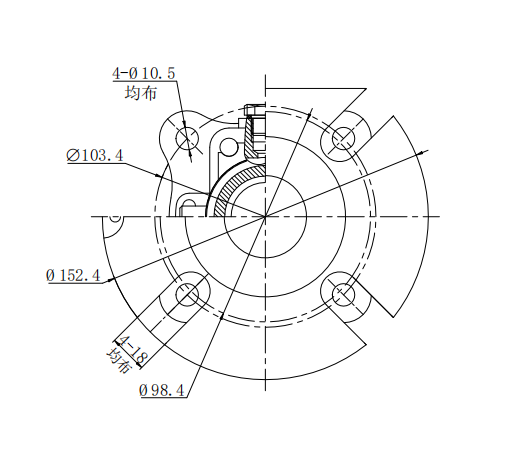

Fitting Details

BG020200X-X

TYPE

DWG	Material
BG020200P-X	304
BG020200R-X	316L
BG020200T-X	WCB/Carbon

DWG	Options
DWG	Filter ASSY	Gauge ASSY
BG020200X-N	×	×
BG020200X-WY	√	√
BG020200X-W	√	×
BG020200X-Y	×	√

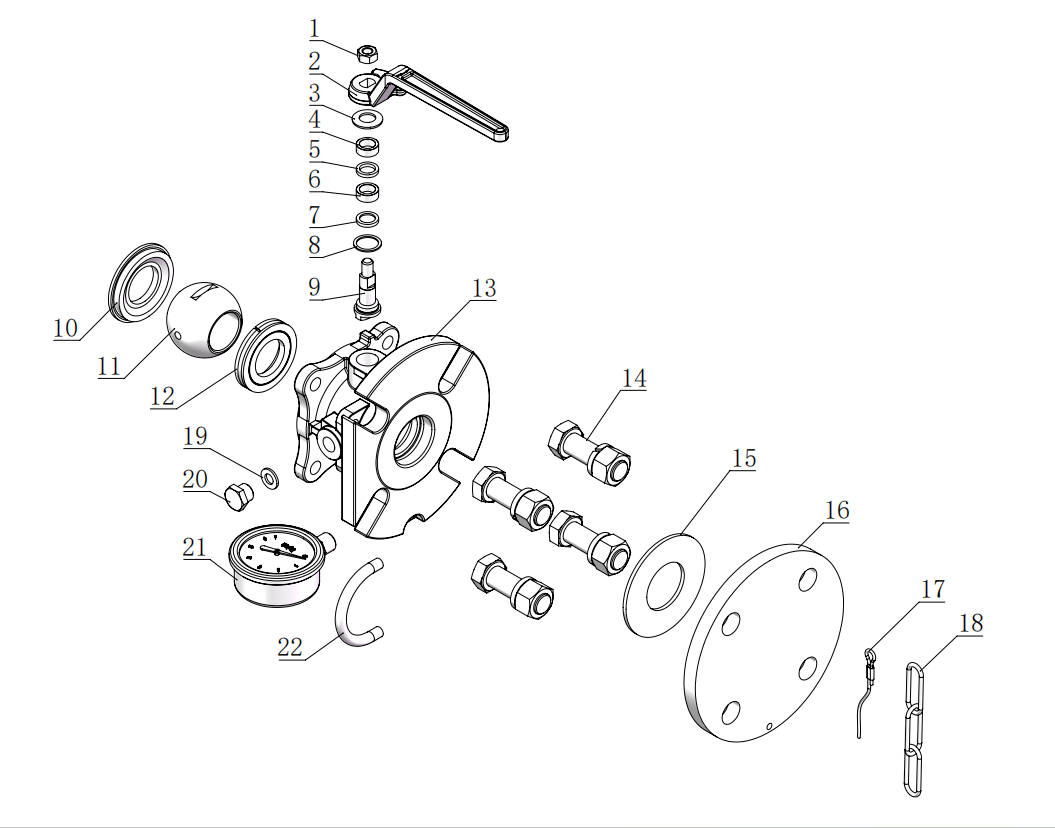

Part Drawing

No.	Part Number	Part Name
1	BG800313P	Self-locking nut
2	BG020207P	Handle
3	BG801001P	Washer
4、6	BG020111R	SS ring
5、7、8	BG020116F	Seal PKG for spindle
9	BG020112RS	Spindle
10、12	BG020117F	Seal PKG for ball
11	BG020103X	Ball
13	BG020201X	Valve body
14、15、 16、17	BG020220X	Dust cover ASSY
14、15、 16、18	BG020221X	Dust cover ASSY
19、20	BG020118X	Screw and seal
21	BG801106P	Pressure Gauge(Range-0-7bar，1/4”BSP)/Gauge
22	BG020115P	Pressure Gauge Bracket(Material-304)/Gauge guard
Repair Kit	BG020126X	9、11
Seal Kit	BG020222F	5、7、8、10、12、15、19

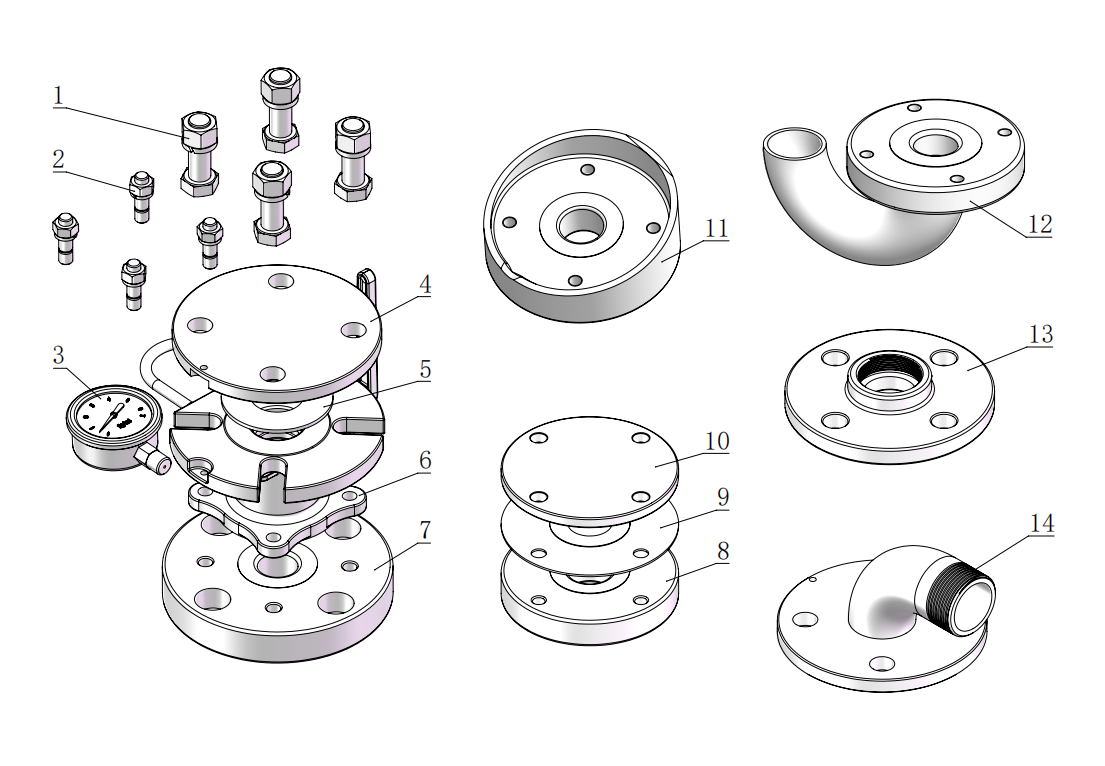

Installation Drawing

Item	Part Name	Part No.
1	Screw Kits	BG820078P
2	Screw Kits	BG820130P
3	Pressure Gauge(Range-0-Xbar，1/4＂BSP)/Gauge	BG804500P-X
4	DN40/Blind Flange	BG029703X
5	Seal	BG029502F
6	DN40 Flanged Airline Ball Valve	BG020200X-X
7	Adapter Flange	BG0060P-350X
8	Weld In Flange	BG0025F-350X
9	PTFE Gasket	BG802870FQ
10	Blind Flange	BG5700P-192X
11	Weld In Flange	BG0032F-350X
12	Welded Flange (Welded U-Shaped Bend)	BG901071X-B
13	Adapter	BG901303X
14	1.5" BSP Pipe Assembly (Outlet Flange Welded To 90° Elbow And Bsp)	BG901500X
You can contact us if you need anything else！
