DN50 2” Flanged Airline Butterfly Valve

2” Flanged butterfly, Left handle to open. Equipped with position pins to prevent leakage caused by butterfly plate displacement due to bumps during transportation. Handle with TIR.

Email : panlijuan@bgjx.cn

WhatsApp : +8618136395626

PDF Download

Product Details

Specification

Design Press. 7Bar

Test Press. 12.5bar

Nominal diameter DN50

Temperature -40℃～200℃

Material 304 / 316

Tank Connection 4×Φ18×PCD128

Outlet 4×Φ18×PCD114.3

Seal PTFE

Standard EN14432 AND ASME Ⅷ DIV 1

Weight 6Kg

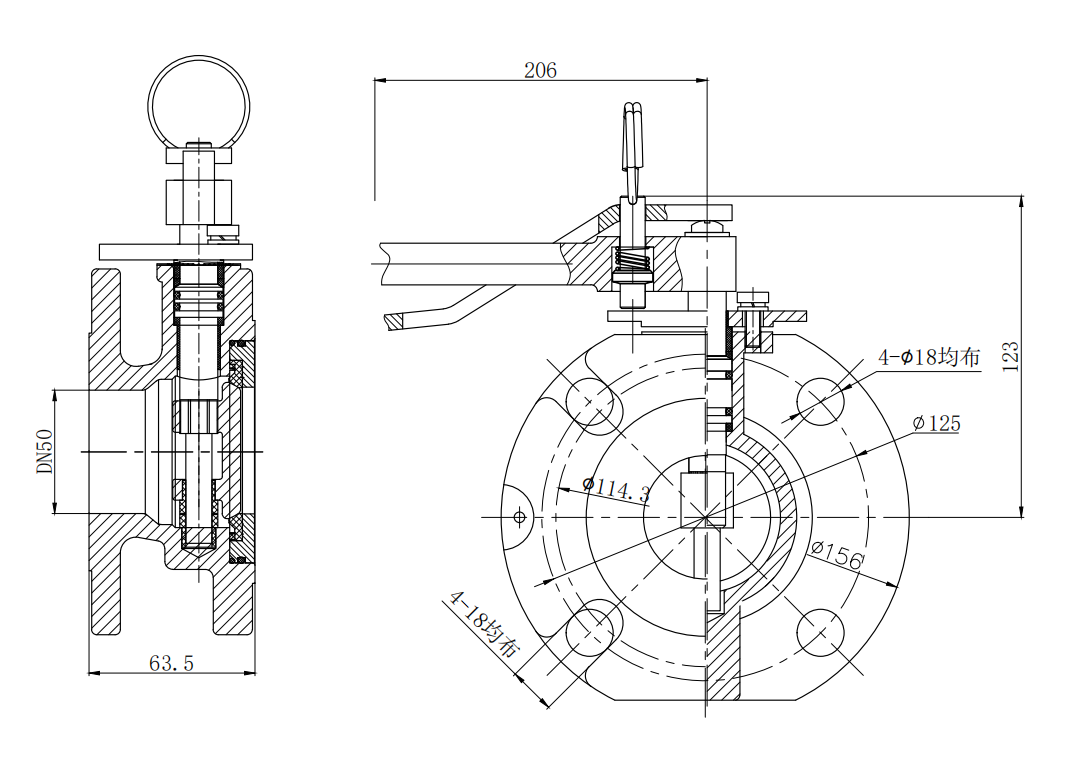

Fitting Details

BG031500X-X

TYPE

DWG	Material
BG031500P	304
BG031500R	316L
BG031500T	Carbon

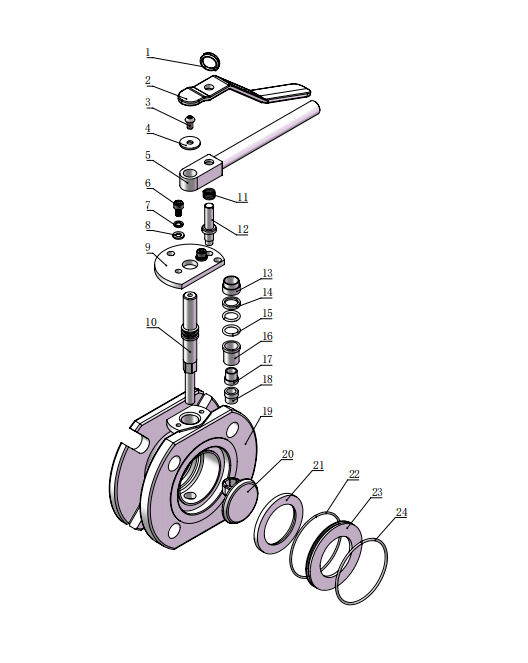

Part Drawing

No.	DWG	Part Name
1	BG802203P	Split ring
2	BG030113RS	Operating lever
3	BG800453P	Screw
4	BG802503P	Washer
5	BG031510P	Handle
6	BG800102P	M6/Bolt
7	BG800613P	Washer
8	BG800603P	Spring washer
9	BG031509P	Plate
10	BG031505RS	Stem
11	BG801002P	Spring
12	BG803002P	Pin
13	BG031508F	SS ring
14	BG031507F	PTFE
15	BG801206U	O-ring
16	BG031906F	PTFE
17	BG031906F	SS ring
18	BG031503F	SS ring
19	BG031901X	Valve body
20	BG031905X	Closure plate
21	BG031903X	Clamp plate
22	BG801228U	O-ring
24	BG801227U	O-ring

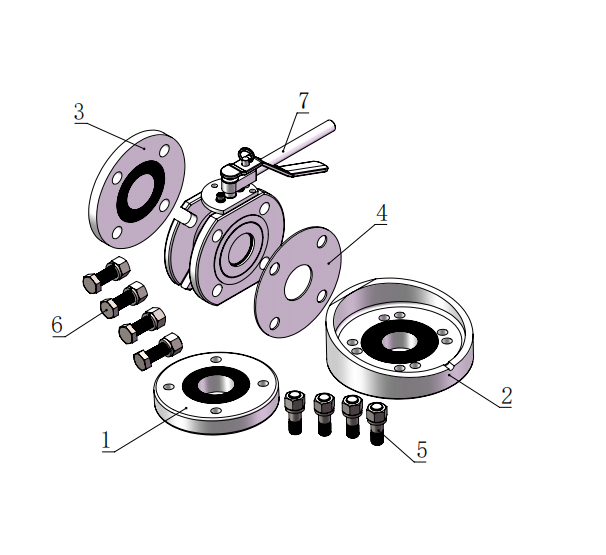

Installation Drawing

Item	Part Name	Part No.
1	Weld In Flange	BG2500P-190X
2	Weld In Flange	BG3140F-355-3X
3	Blind Flange	BG4239F-370-CX
4	PTFE Gasket	BG802842FQ
5	Screw Kits	BG820127P
6	Screw Kits	BG820078P
7	2” Flanged Airline Butterfly Valve	BG031500X-X
8	Pressure Gauge(Range 0-Xbar，1/4＂BSP) Gauge	BG804500P-X
