DN50 1.5＂BSP Double Connection Airline Ball Valve

1.5＂BSP Double Connection Airline Ball Valve, with flange inlet and 2X 1.5”BSP thread outlet. The air through it when loading and discharging. It also used with N2 protection in special condition. 1/4”BSP gauge connection and handle with TIR. The airline valve must be opened before other operations.

Email : panlijuan@bgjx.cn

WhatsApp : +8618136395626

PDF Download

Product Details

Specification

Design Press. 10bar（145PSI）

Test Press. 15Bar （217.5PSI）

Temperature -40℃～200℃ （-40℉～392℉）

Standard EN14432 AND ASME Ⅷ DIV 1

Sealing PTFE

Weight 2Kg

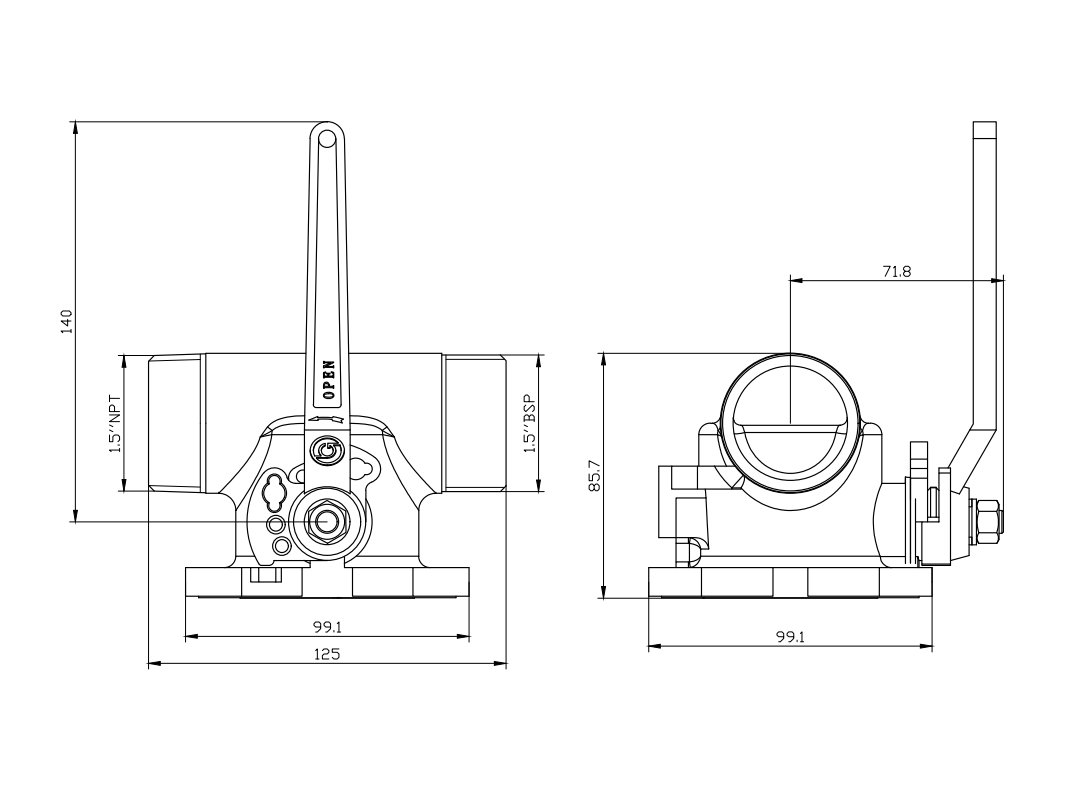

Fitting Details

BG0223X0X

TYPE

DWG	Thread TYPE
BG022300X	2X1.5＂BSP Male
BG022310X	2X1.5＂NPT Male
BG022320X	1.5＂BSP Male +1.5＂NPT Male

DWG	Material
BG022300P	304
BG022300R	316
BG022300T	Carbon

DWG	Gauge ASSY
BG022300X	×
BG022300X-Y	√

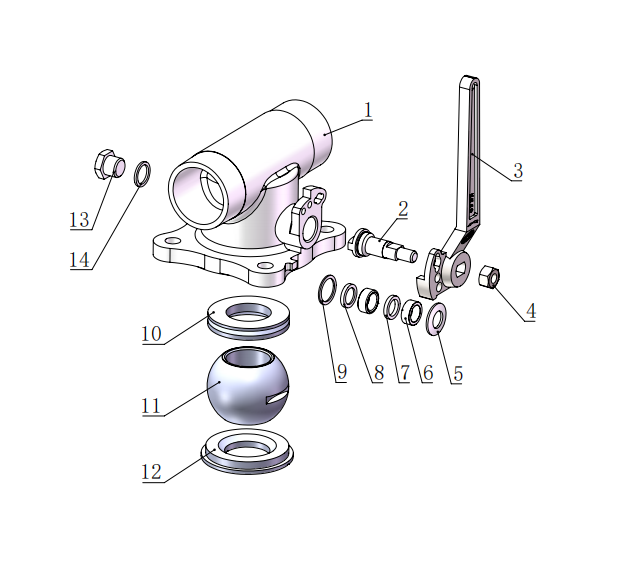

Part Drawing

No.	Part Number Part No.	Part Name
1	BG022301X	Valve body
2	BG022312RS	Valve Stem
3	BG020107P	Handle
4	BG800313P	Self-locking nut
5	BG801001P	Washer
6	BG020111R	SS ring
7、8、9	BG022316F	Valve Stem Sealing Package (Upper Seal + Lower Seal + Packing) MaterialPTFE
10、12	BG020117F	Seal PKG for ball
11	BG020103X	Ball
13、14	BG020118X	Screw and seal

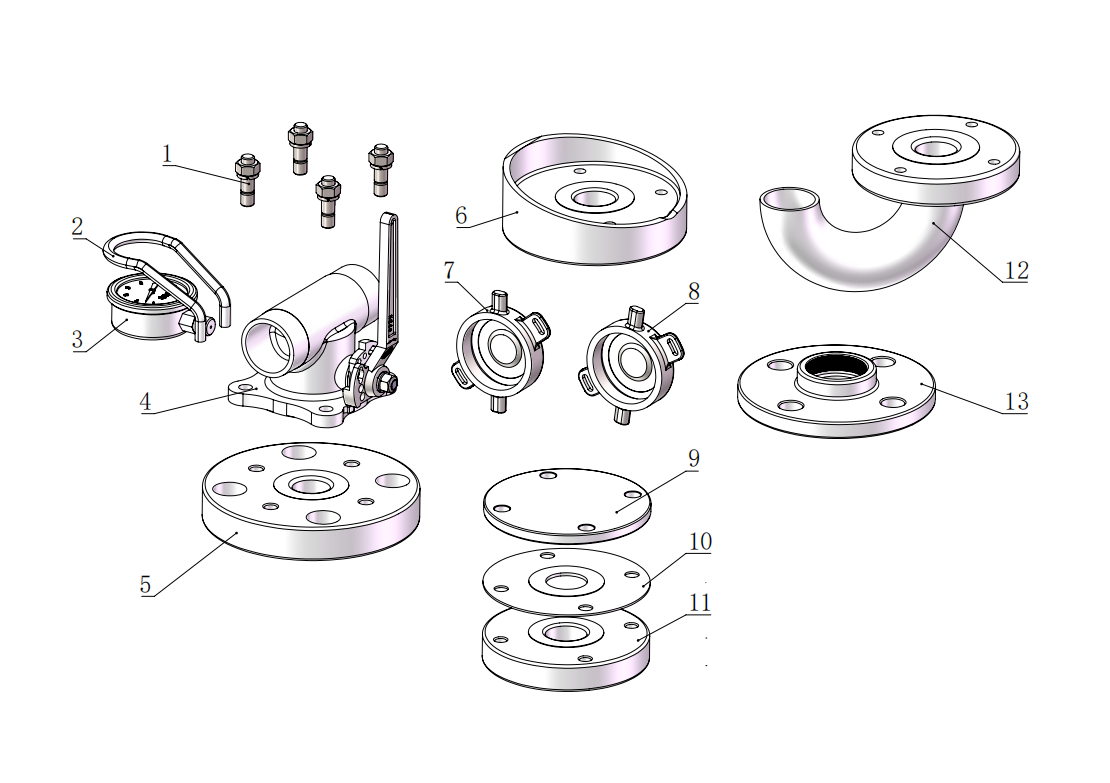

Installation Drawing

Item	Part Name	Part No.
1	Screw Kits	BG820130P
2	Gauge guard	BG022315P
3	Pressure Gauge(Range 0-Xbar，1/4＂BSP)	BG804500P-X
4	1.5＂ BSP Double Connection Airline Ball Valve	BG0223X0X-X
5	Adapter Flange	BG0060P-350X
6	Weld In Flange	BG0032F-350X
7	Dust Cover ASSY	BG022320X
8	Dust Cover ASSY	BG022321X
9	Blind Flange	BG5700P-192X
10	PTFE Gasket	BG802870FQ
11	Weld In Flange	BG0025F-350X
12	Welding flange with U pipe	BG901071X-B
13	Adapter	BG901303X
