DN80 3＂Flanged Ball Valve

3” Flanged Ball Valve, designed with TIR and closing pin. The character of ball valve is it has two stable sealing. As top discharge，it installed on top of tank container with syphon flange. It also can be used at the bottom.

Email : panlijuan@bgjx.cn

WhatsApp : +8618136395626

PDF Download

Product Details

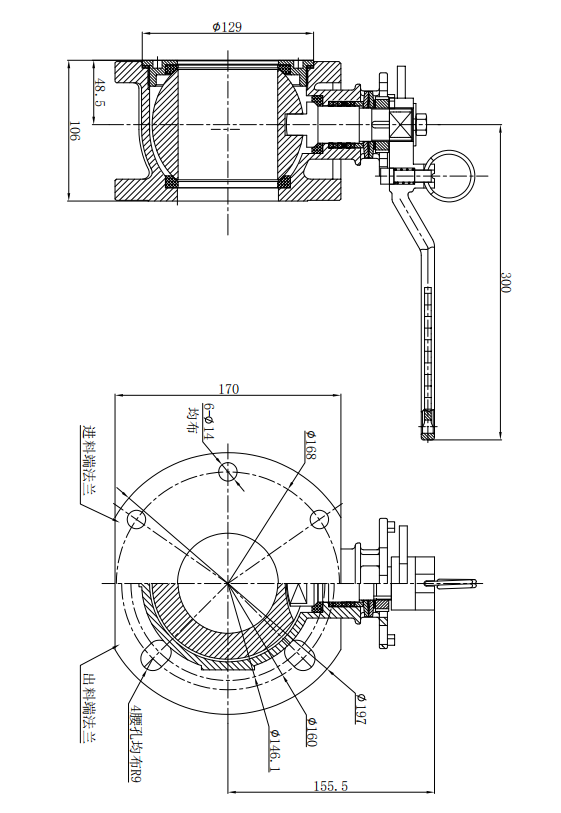

Specification

Design Press. 16bar（232PSI）

Test Press. 24Bar （348PSI）

Temperature -40℃～200℃ （-40℉～392℉）

Standard EN14432 AND ASME Ⅷ DIV 1

Sealing PTFE

Connection Tank pad 6×φ14×PCD168

Outlet 4×φ18×PCD146.1-160

Weight 12Kg

Fitting Details

BG020900X-X

TYPE

DWG	Material
BG020900P-X	304
BG020900R-X	316
BG020900T-X	Carbon

DWG	Handle position
BG020900X-L	Left handle
BG020900X-R	Right handle(Normal)

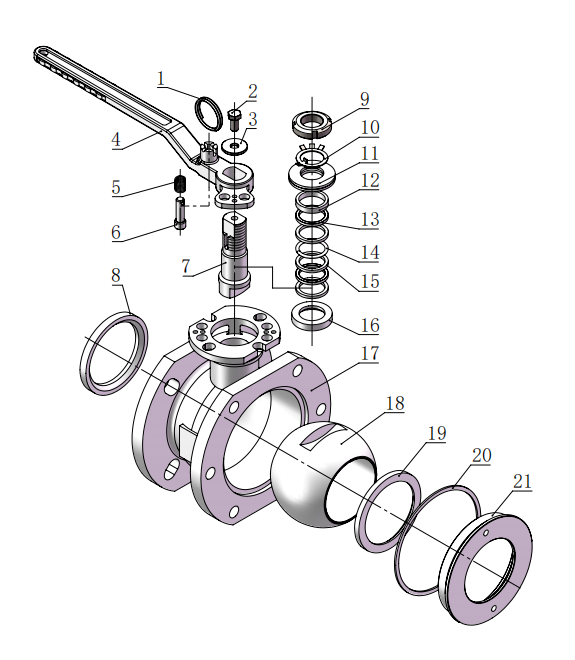

Part Drawing

No.	Part No.	Part Name
1	BG802202P	Split ring
2	BG800110P	Bolt
3	BG020912P	Washer
4	BG020911P	Handle
5	BG801007P	Spring
6	BG803003P	Pin
7	BG020906RS	Stem
8	BG020913F	PTFE
9	BG800329P	Nut
10	BG031505R	Fixed washer
11	BG801002P	Butterfly spring
12	BG020910P	Clamp plate
13	BG020909F	PTFE
14	BG801203U	O ring
15	BG020908F	PTFE
16	BG020907F	PTFE
17	BG020901X	Valve body
18	BG020905X	Ball
19	BG020904F	PTFE
20	BG020902F	PTFE
21	BG020903X	Seal clamp plate

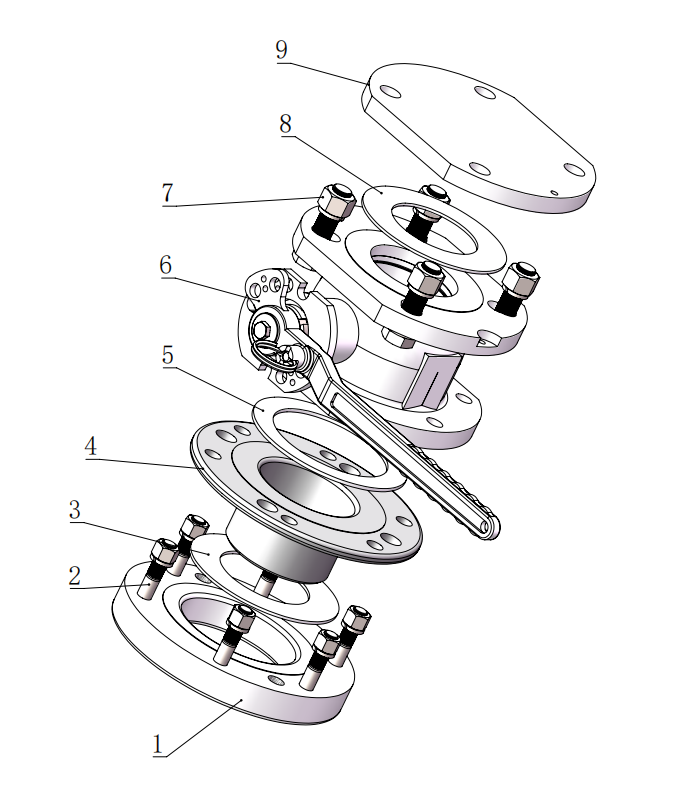

Installation Drawing

No.	Part No.	Part Name
1	BG902080P/R/T	Welding flange
2	BG820105P	Feed End Bolt Package(6×M12) Tank pad bolts Kit
3	BG811008F-B	Gasket(Material PTFE) PTFE
4	BG902100P/R/T	Siphon Flange - 3" Syphon flange
5	BG802826F-B	Feed End Gasket(Material PTFE) PTFE
6	BG020900X-X	DN80 Flanged Ball Valve
7	BG820048P	Discharge End Bolt Package(4×M16) Outlet bolts Kit
8	BG020914F	Discharge End Gasket PTFE
9	BG020915P/R/T	Blind flange
