DN80 3＂BSP Butterfly Valve

3”BSP Butterfly Valve, designed with 3”BSP outlet thread ,TIR and closing pin. The character of butterfly valve is the lower height. As top discharge，it installed on top of tank container with syphon flange. It also can be used with bottom valve.

Email : panlijuan@bgjx.cn

WhatsApp : +8618136395626

PDF Download

Product Details

Specification

Design Press. 6Bar（87PSI）

Test Press. 9Bar （130.5PSI）

Temperature -40℃～200℃ （-40℉～392℉）

Standard EN14432 AND ASME Ⅷ DIV 1

Sealing PTFE

Connection Tank pad 6×φ11×PCD128

Outlet 3”BSP Thread male

Weight 5Kg

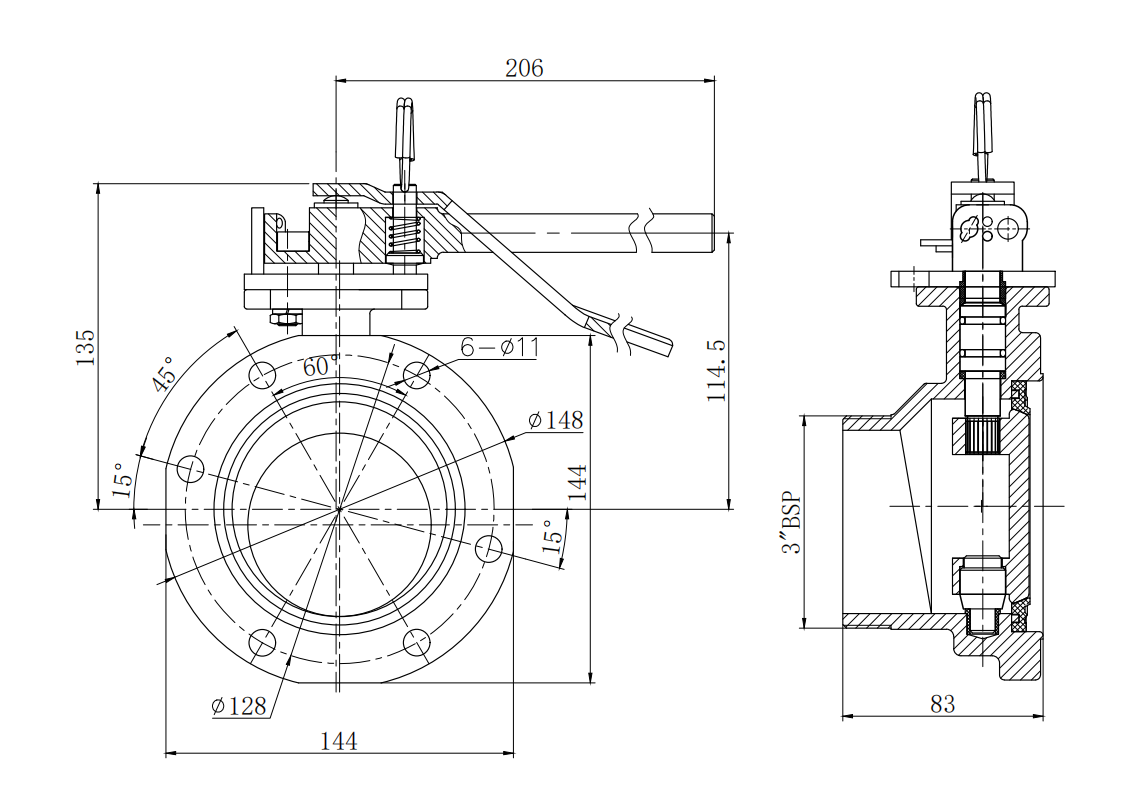

Fitting Details

BG031200X

TYPE

DWG	Material
BG031200P	304
BG031200R	316
BG031200T	Carbon

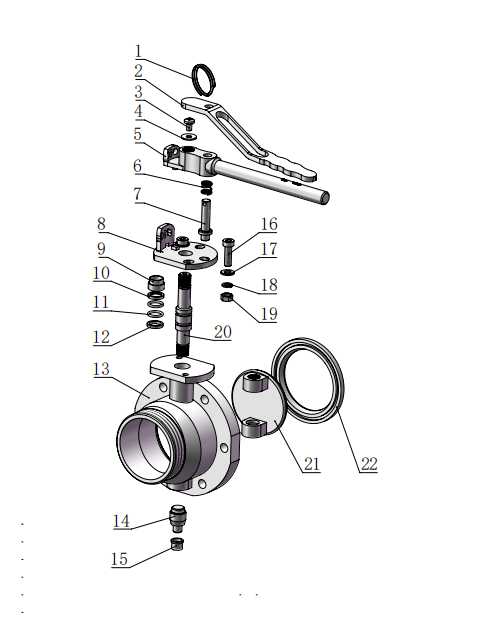

Part Drawing

No.	Part No.	Part Name
1	BG802201P	Split ring
2	BG030113RS	Operating lever
3	BG800453P	Screw
4	BG802503P	Washer
5	BG030112P	Handle
6	BG801005P	Spring
7	BG803002P	Handle location pin
8	BG030111P	Stuffing clamp
9	BG030110F	SS ring
10	BG030109F	PTFE
11	BG801206U	O ring
12	BG031204F	PTFE
13	BG031201X	Valve body
14	BG030103X	Shaft
15	BG030102F	SS ring
16	BG800405P	Screw
17	BG800604P	Washer
18	BG800614P	Spring washer
19	BG800324P	Nut
20	BG031202RS	Stem
21	BG030105X	Closure plate
22	BG030104F	PTFE
