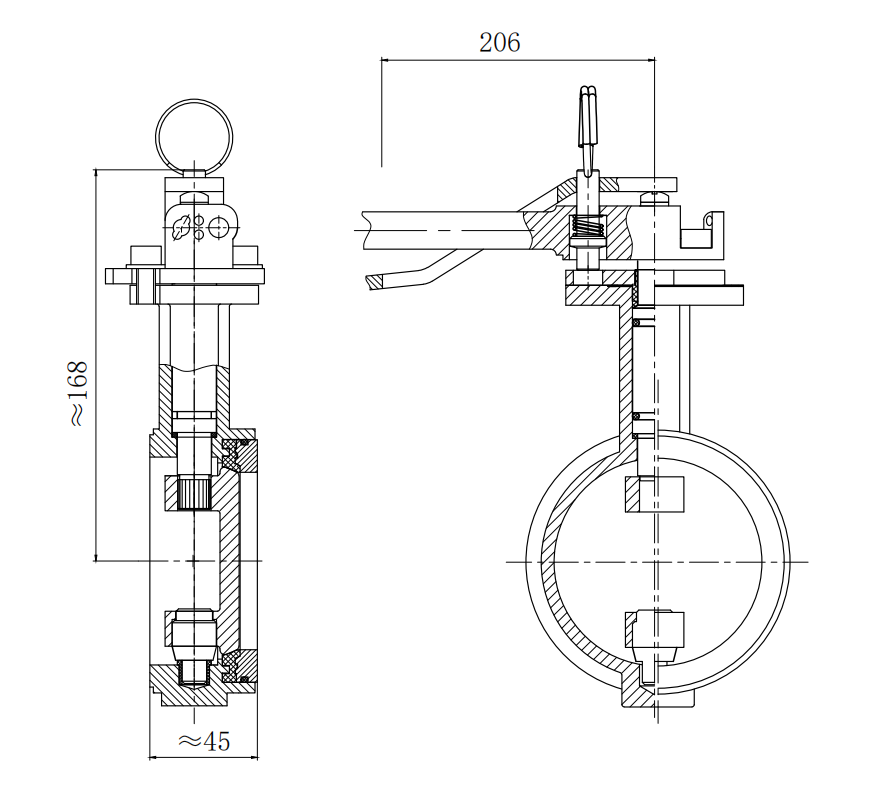

DN80 3＂Clamped Butterfly Valve

3＂ Clamped Butterfly Valve, Left handle to open. Equipped with position pins to prevent leakage caused by butterfly plate displacement due to bumps during transportation. Handle with TIR.

Email : panlijuan@bgjx.cn

WhatsApp : +8618136395626

PDF Download

Product Details

Specification

Design Press. 7bar（101.5PSI）

Test Press. 10.5Bar （152.3PSI）

Temperature -40℃～200℃ （-40℉～392℉）

Material 304 / 316

Seal PTFE

Standard EN14432 AND ASME Ⅷ DIV 1

Sealing PTFE

Weight Kg

Fitting Details

BG0314X0X

TYPE

DWG	Major Structure
BG031400X	With Seal clamp plate
BG031450X	Without Seal clamp plate

DWG	Material
BG0314X0P	304
BG0314X0R	316L
BG0314X0T	WCB/Carbon

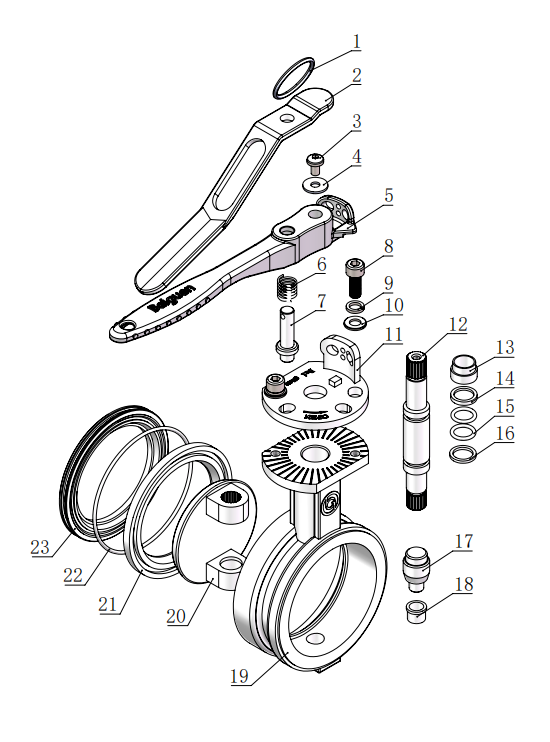

Part Drawing

No.	Part No.	Part Name
1	BG802203P	Split ring
2	BG030113RS	Operating lever
3	BG800453P	Screw
4	BG802503P	Washer
5	BG030112P	Handle
6	BG801005P	Spring
7	BG803002P	Handle location pin
8	BG800405P	Screw
9	BG800614P	Spring washer
10	BG800604P	Washer
11	BG030111P	Stuffing clamp
12	BG030107RS	Stem
13	BG030110F	SS ring
14	BG030109F	PTFE
15	BG801206U	O Ring
16	BG030108F	PTFE
17	BG030103X	Shaft
18	BG030102F	SS ring
19	BG030101X	Valve body
20	BG030105X	Closure plate
21	BG030104F	PTFE
22	BG801208U	O ring
23	BG031406X	Seal clamp plate
