DN80 3” Flanged Butterfly Valve

3” Flanged Butterfly Valve, designed with TIR and closing pin. The character of butterfly valve has a very low height and save the installation area. Normally it installed on top of tank container with syphon flange. It also can be used at the bottom.

Email : panlijuan@bgjx.cn

WhatsApp : +8618136395626

PDF Download

Product Details

Specification

Design Press. 7bar（101.5PSI）

Test Press. 10.5Bar （152.3PSI）

Temperature -40℃～200℃ （-40℉～392℉）

Standard EN14432 AND ASME Ⅷ DIV 1

Sealing PTFE

Weight 6.5Kg

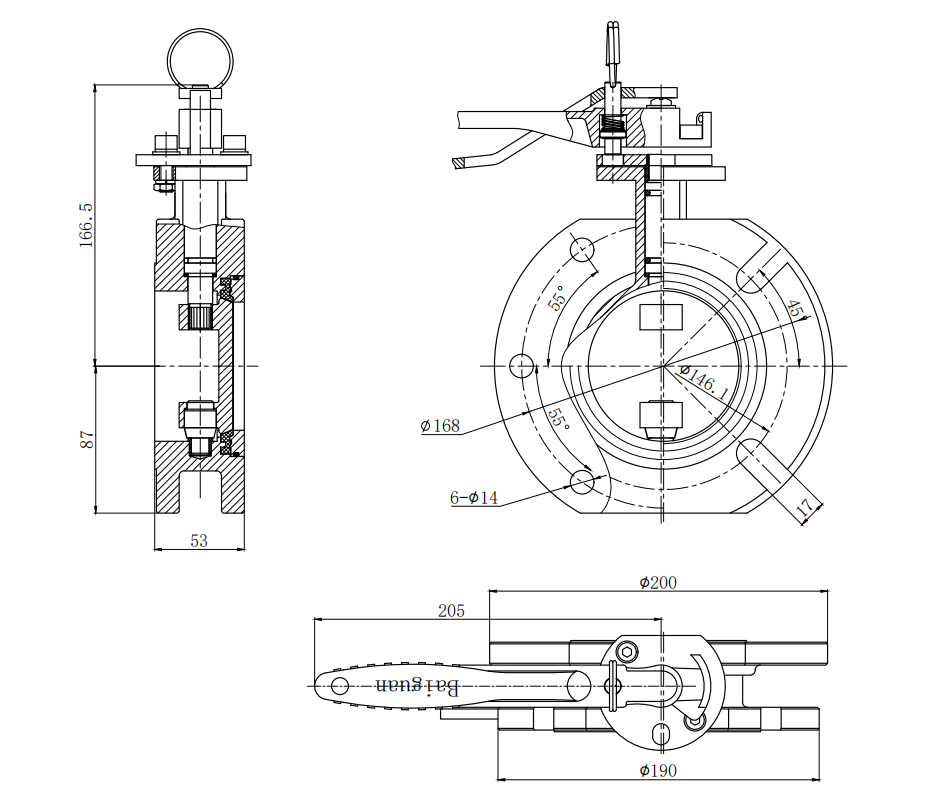

Fitting Details

BG030200X

TYPE

DWG	Material
BG030200P	304
BG030200R	316
BG030200T	WCB/Carbon

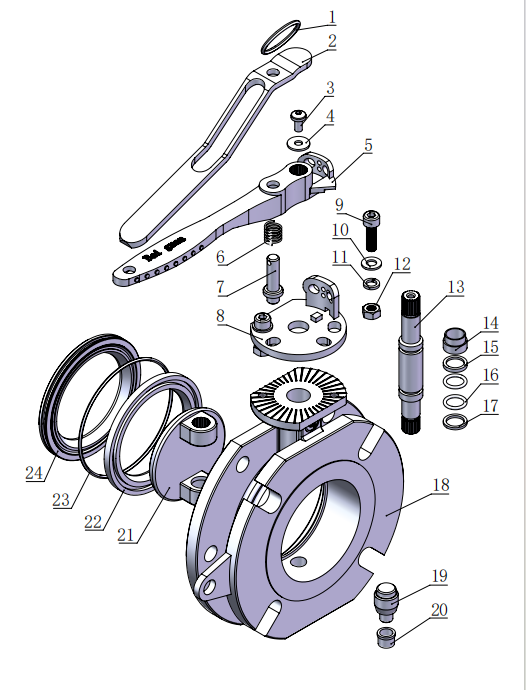

Part Drawing

No.	Part No.	Part Name
1	BG802201P	Split ring
2	BG030113RS	Operating lever
3	BG800453P	Screw
4	BG802503P	Washer
5	BG030112P	Handle
6	BG801005P	Spring
7	BG803002P	Handle location pin
8	BG030111P	Stuffing clamp
9	BG800406P	Screw
10	BG800604P	Washer
11	BG800614P	Spring washer
12	BG800324P	Nut
13	BG031407RS	Stem
14	BG030110F	SS ring
15	BG030109F	PTFE
16	BG801206U	O ring
17	BG030108F	PTFE
18	BG030201X	Valve body
19	BG030103X	Shaft
20	BG030102F	SS ring
21	BG030105X	Closure plate
22	BG030104F	PTFE
23	BG801208U	O ring
24	BG031406X	Seal clamp plate

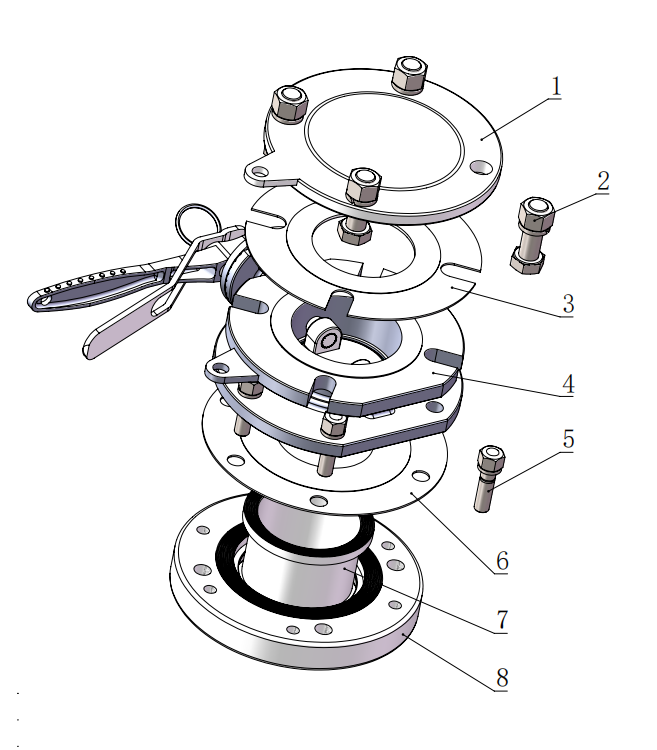

Installation Drawing 1

No.	Part No.	Part Name
1	BGS0022F-312P/R/T	Blind flange
2	BG820078P	Outlet bolts Kit
3	BG811010F	Gasket（Material PTFE）/PTFE
4	BG030200P/R/T	DN80 Flanged Butterfly Valve
5	BG820097P	Inlet bolts Kit
6	BG169F-5005	Gasket（Material PTFE/CNAF） PTFE+CNAF
7	BG902100P/R/T	Syphon flange
8	BG222F-5005	Gasket（Material PTFE/CNAF） PTFE+CNAF
9	BG902080P/R/T	Welding flange

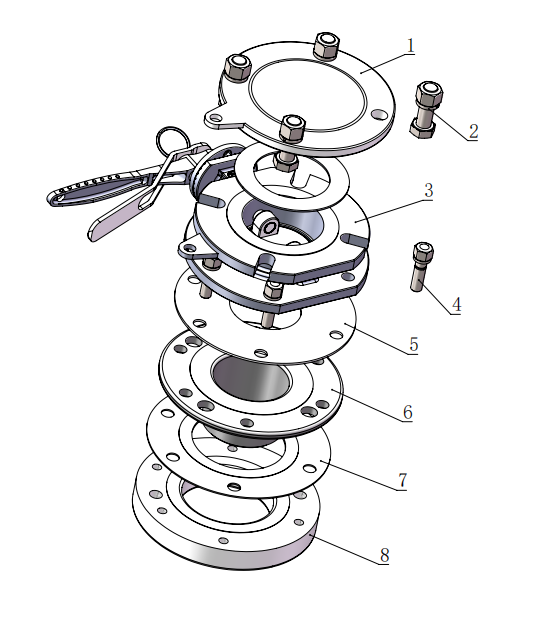

Installation Drawing 2

No.	Part No.	Part Name
1	BGS0022F-312P/R/T	Blind flange
2	BG820078P	Outlet bolts Kit
3	BG427F-5005	Gasket（Material PTFE/CNAF） PTFE+CNAF
4	BG030200P/R/T	DN80 Flanged Butterfly Valve
5	BG820095P	Inlet bolts Kit
6	BG169F-5005	Gasket（Material PTFE/CNAF） PTFE+CNAF
7	BG0850F-368-B	Syphon flange
8	BG222F-5005	Gasket（Material PTFE/CNAF） PTFE+CNAF
9	BG8700P-191P/R/T	Welding flange
