DN80 3＂180° Highlift Foot Valve

3＂180° Highlift Foot Valve installed to the bottom of tank container. We can open with foot and it can be closed quickly. Valve designed with shear groove， it breaks to protect the first sealing when accident hitting happens. Packed with
urgent pull ASSY.

Email : panlijuan@bgjx.cn

WhatsApp : +8618136395626

PDF Download

Product Details

Specification

Design Press. 6Bar（87PSI）

Test Press. 9Bar （130.5PSI）

Temperature -40℃～200℃ （-40℉～392℉）

Standard EN14433

Sealing PTFE、PFA+Si

Weight 8.5Kg

Connection Tank Pad 6×φ18×PCD172(Non-Uniform Distribution)

Tank Pad 4×φ18×PCD160

Outlet 6×φ11×PCD148(Non-Uniform Distribution)

Fitting Details

BG0508X0X

DWG	Tank pad size
BG050800X	6×Φ18×PCD172(Non-Uniform Distribution)
BG050850X	4×Φ18×PCD160

TYPE

DWG	Material
BG0508X0P	304
BG0508X0R	316L
BG0508X0T	Carbon

DWG	Special
BG0508X0X	Normal
BG0508X0X-L	L Handle
BG0508X0X-S	Shorted handle
BG0508X0X-Z	Straight handle
BG0508X0X-P	Food grade seal

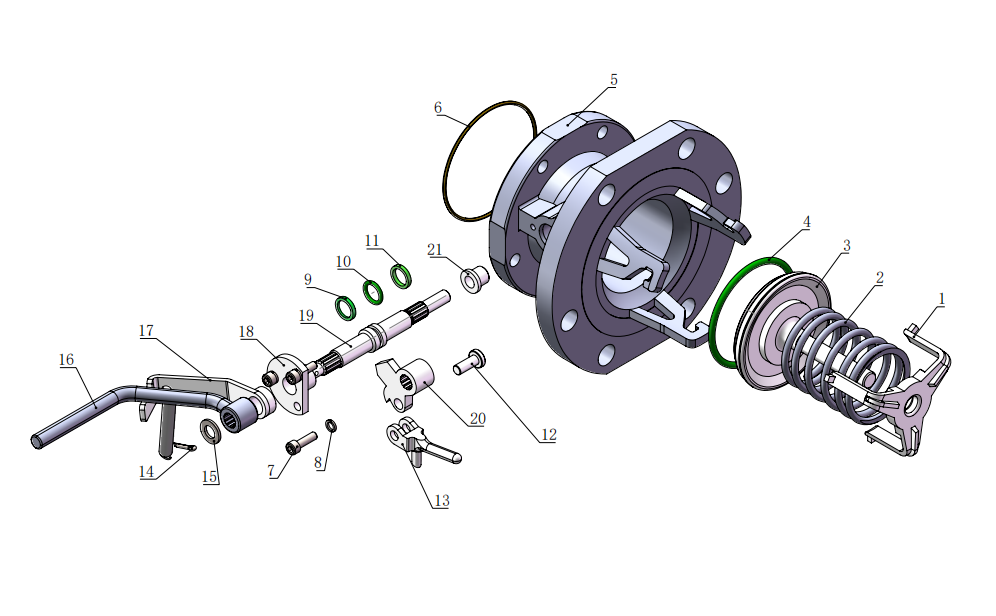

Part Drawing

No.	Part Drawing Number	Part Name
1	BG050403X	Spring top plate
2	BG050102X	Spring
3	BG050803X	Solid poppet
4	BG801207BJ	PFA+Si
5	BG050821X	Valve body
6	BG801208U	O Ring
7	BG800412P	Screw
8	BG800613P	Spring washer
9	BG050110F	PTFE
10	BG801206U	O ring
11	BG050110F	PTFE
12	BG800704R	Rivet
13	BG050811P	Crank block ASSY
14	BG800501P	Pin
15	BG800605P	Washer
16	BG050107P	Handle
17	BG805110P	Remote Control Device (Crank+Spring) Urgent pull ASSY
18	BG050805P	Stuffing Clamp
19	BG050108RS	Stem
20	BG050802X	Shaft
21	BG050804F	Shaft

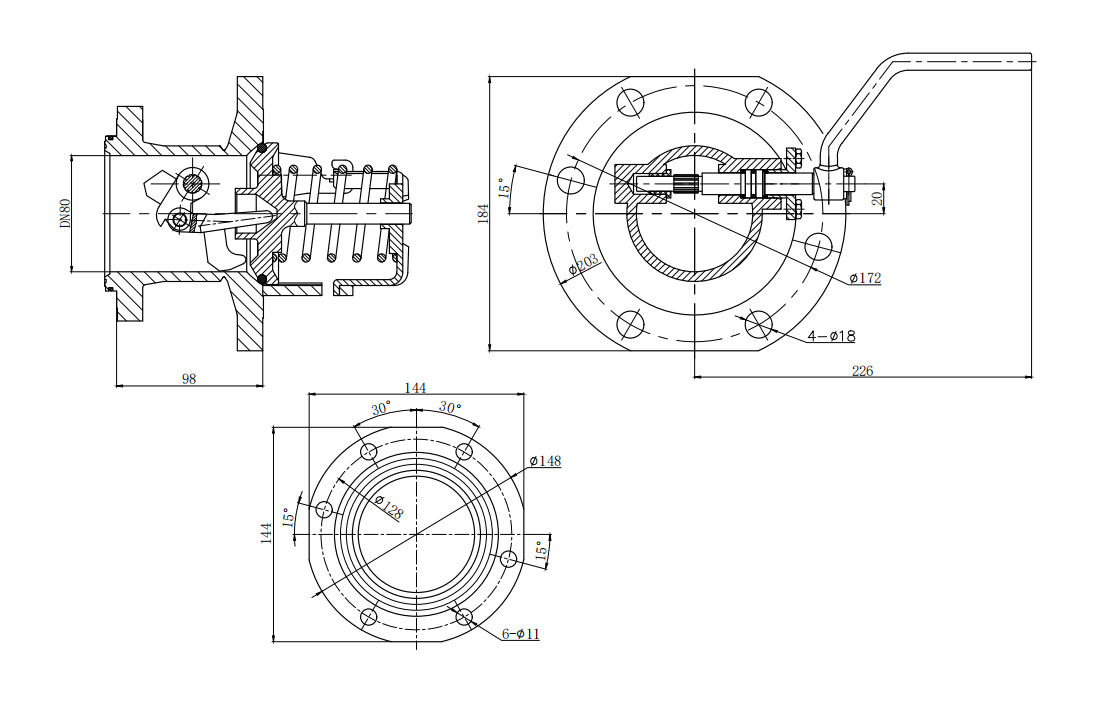

Installation Drawing

DWG	Name
BGS0656P/R/T-B	Welding flange（unequal）
BGS0656P/R/T	Welding flange
BG802835FQ	Inlet Gasket（Material PTFE/CNAF） Tank pad seal（6 holes unequal）
BG812006FQ	Inlet Gasket（Material PTFE/CNAF） Tank pad seal （4 holes equal）
BG802829F	Outlet Gasket (Non-Hole)（Material PTFE）
BG820059P	Entry Bolt Pack(6×M16)/Tank pad bolts Kit
BG805110P	Remote Control Device (Crank+Spring)/Urgent pull ASSY
