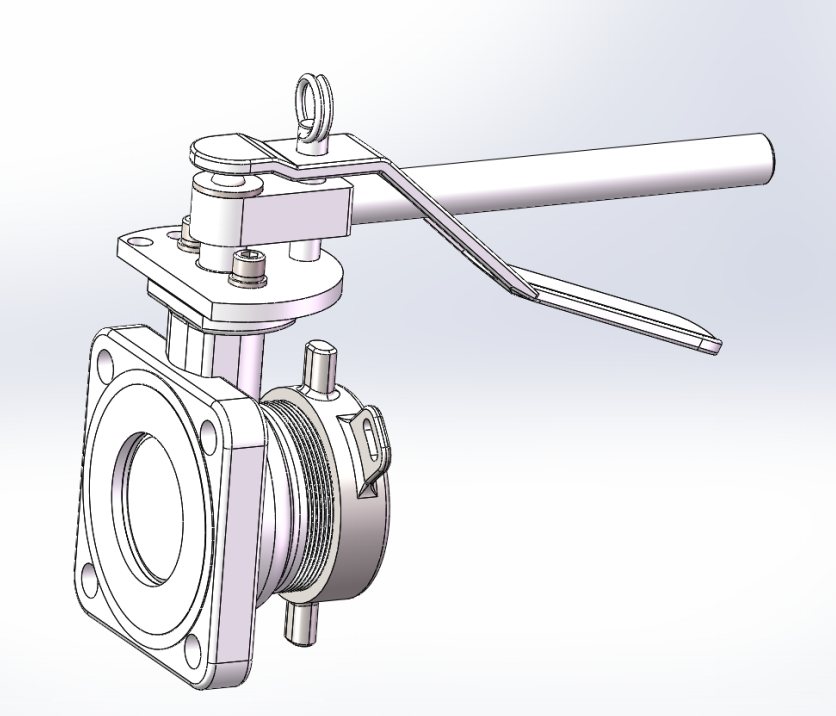

DN50 2”BSP Airline Butterfly Valve

2”BSP butterfly, Left handle to open. Equipped with position pins to prevent leakage caused by butterfly plate displacement due to bumps during transportation. Handle with TIR.

Email : panlijuan@bgjx.cn

WhatsApp : +8618136395626

PDF Download

Product Details

Specification

Design Press. 7Bar

Test Press. 12.5bar

Nominal diameter DN50

Temperature -40℃～200℃

Material 304 / 316

Tank Connection 4×Φ11×PCD100

Outlet 2＂BSP male

Seal PTFE

Standard EN14432 AND ASME Ⅷ DIV 1

Weight 3.7Kg

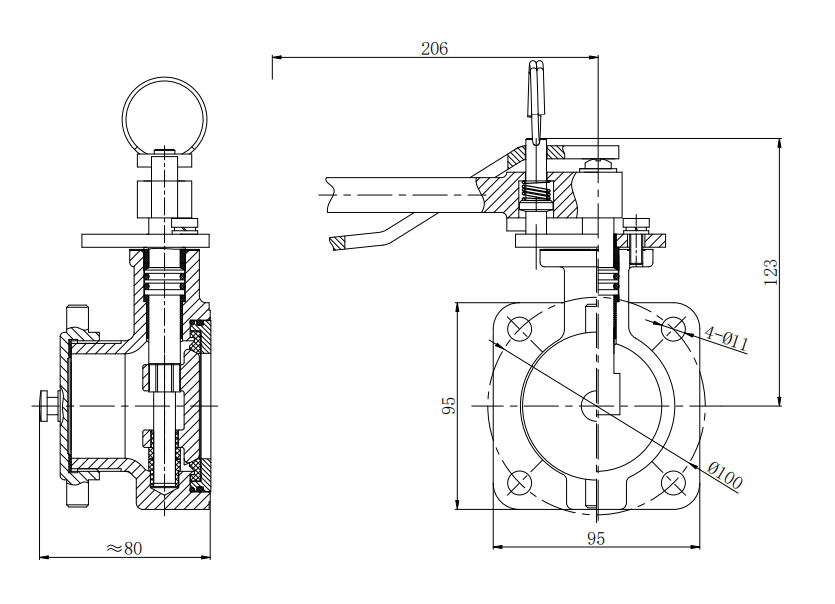

Fitting Details

BG031900X

TYPE

DWG	Material
BG031900P	304
BG031900R	316
BG031900T	Carbon

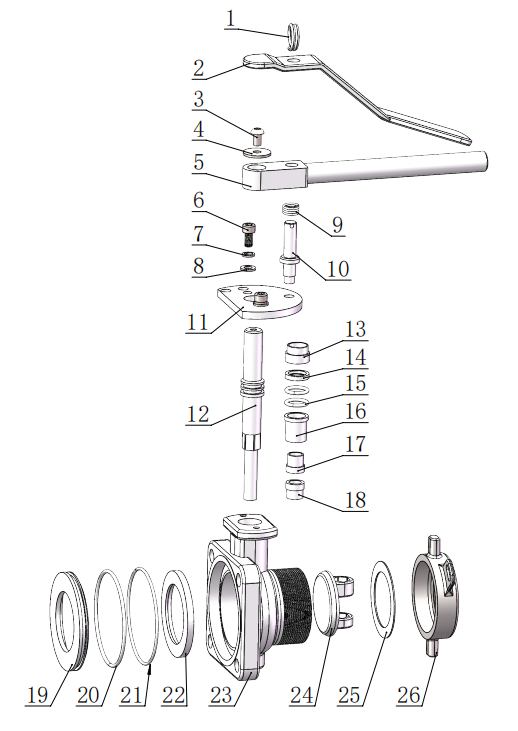

Part Drawing

No.	DWG	Part Name
1	BG802203P	Split ring
2	BG030113RS	Operating lever
3	BG800453P	Screw
4	BG802503P	Washer
5	BG031510P	Handle
6	BG800102P	M6/Bolt
7	BG800613P	Washer
8	BG800603P	Spring washer
9	BG801002P	Spring
10	BG803002P	Pin
11	BG031509P	Plate
12	BG031505RS	Stem
13	BG031508F	SS ring
14	BG031507F	PTFE
15	BG801206U	O-ring
16	BG031906F	PTFE
17	BG031906F	SS ring
18	BG031503F	SS ring
19	BG031903R	Clamp plate
20	BG801228U	O-ring
21	BG801227U	O-ring
22	BG031504F	Main seal
23	BG031901X	Valve body
24	BG031905X	Closure plate
25	BG810006X	Seal	BG807530X-X Dust Cover ASSY
26	BG802605X	Cover

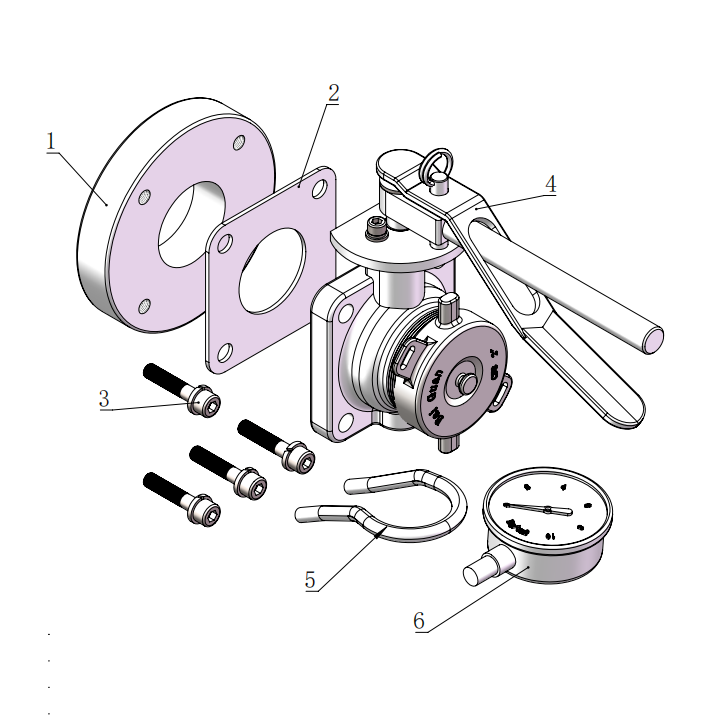

Installation Drawing

Item	Part Name	Part No.
1	Weld In Flange	BG901210X
2	PTFE Gasket	BG500F-5005
3	Screw Kits	BG820181P
4	2”BSP Airline Butterfly Valve	BG031900X-XX
5	Gauge guard	BG031905P
6	Pressure Gauge(Range 0-Xbar，1/4＂BSP) Gauge	BG804500P-X
