DN80 3＂30° Highlift Foot Valve（lightweight）

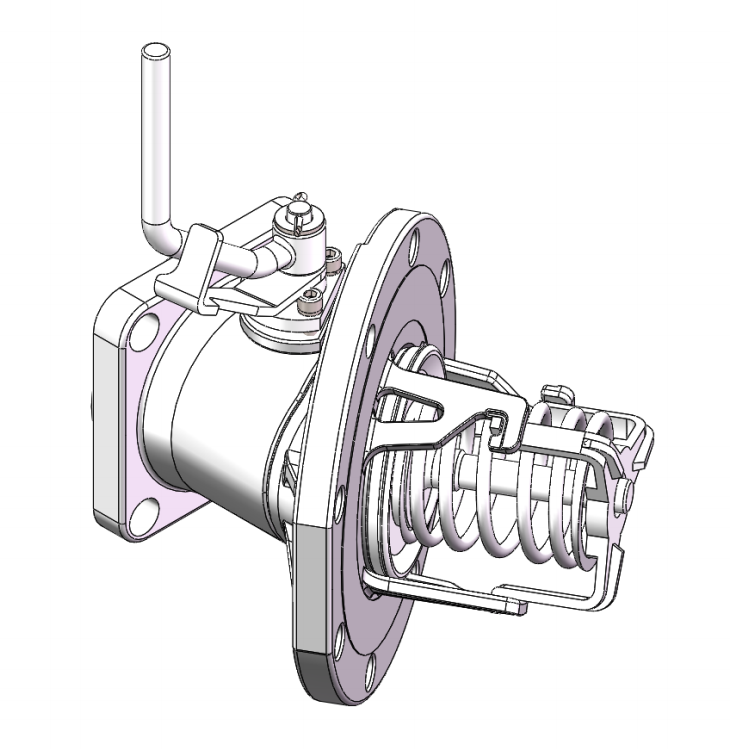

3＂30° Highlift Foot Valve installed to the bottom of tank container. We can open with foot and it can be closed quickly. Valve designed with shear groove， it breaks to protect the first sealing when accident hitting happens. Packed with
urgent pull ASSY. The outlet sizes narrowed to reduce weight.

Email : panlijuan@bgjx.cn

WhatsApp : +8618136395626

PDF Download

Product Details

Specification

Design Press. 6Bar（87PSI）

Test Press. 9Bar （130.5PSI）

Temperature -40℃～200℃ （-40℉～392℉）

Standard EN14433

Sealing PTFE、PFA+Si

Weight 7.5Kg

Connection Tank Pad 8×φ14×PCD178

Outlet 4×φ18×PCD129.5

Fitting Details

BG051500X

TYPE

DWG	Material
BG051500P	304
BG051500R	316
BG051500T	Carbon

DWG	Special
BG051500X	Normal
BG051500X-L	L Handle
BG051500X-S	Shorted handle
BG051500X-Z	Straight handle
BG051500X-P	Food grade seal

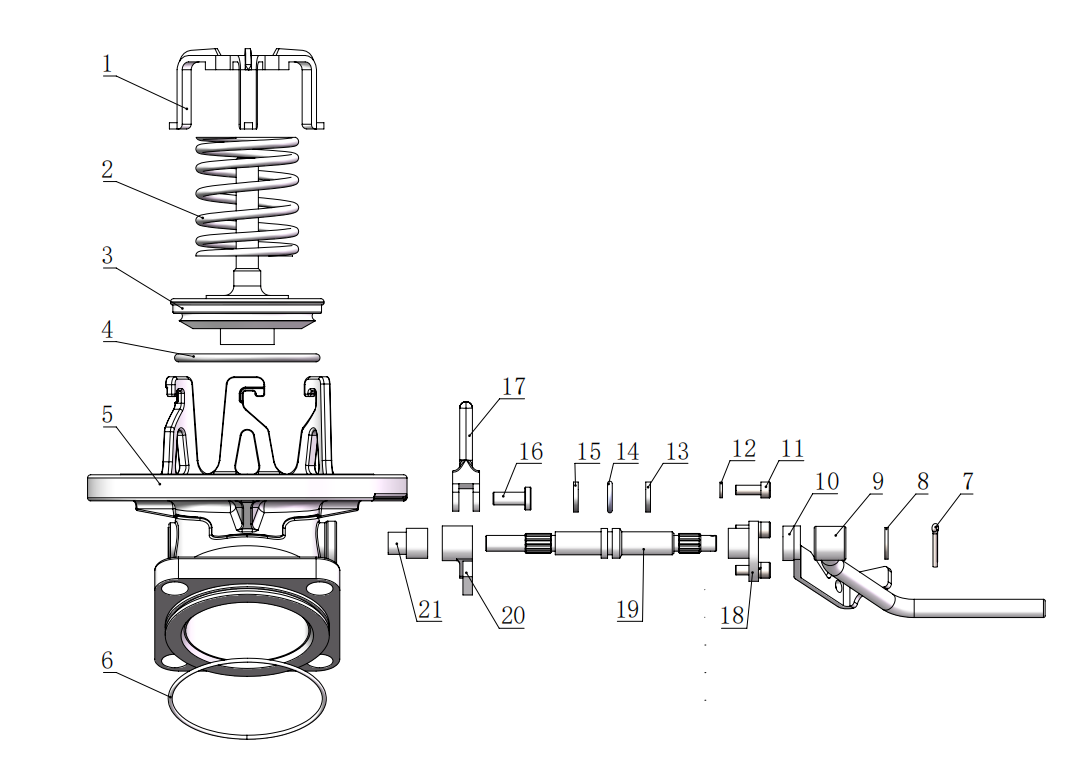

Part Drawing

No.	Part Number	Part Name
1	BG050403X	Spring top plate
2	BG050102X	Spring
3	BG050803X	Solid poppet
4	BG801207BJ	PFA+Si
5	BG051501X	Valve body
6	BG801208U	O Ring
7	BG800501P	Pin
8	BG800605P	Washer
9	BG050407P	Handle
10	BG805100P	Remote Control Device (Crank + Spring) Urgent pull ASSY
11	BG800412P	Screw
12	BG800613P	Spring washer
13	BG050110F	PTFE
14	BG801206U	O Ring
15	BG050110F	PTFE
16	BG800704R	Rivet
17	BG053602X	Crank Block ASSY
18	BG050805P	Stuffing Clamp
19	BG050108RS	Stem
20	BG050802X	Shaft
21	BG050113F	Shaft

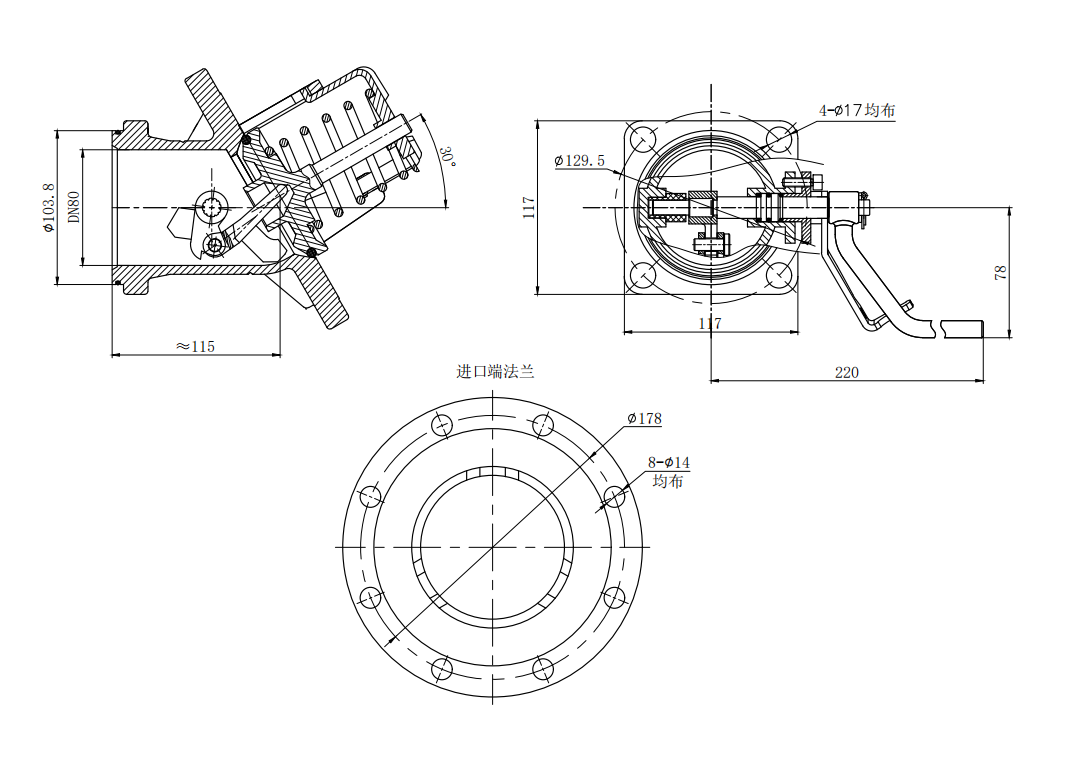

Installation Drawing

DWG	Name
BG9030F-324P/R/T	Welding flange
BG9030SHF-324P/R/T	Welding Flange (Heated Type) Welding flange with steam heating
BG015F-5005	Inlet Gasket（Material PTFE/CNAF） Tank pad seal
BG812008F	Inlet Gasket（Material PTFE） Tank pad seal
BG802829F	Outlet Gasket (Non-Porous)（Material PTFE）Outlet seal
BG820126P	Inlet Bolt Package(8×M12) Tank pad bolts Kit
BG805100P	Remote Control Device (Crank + Spring) Urgent Pull ASSY
