DN80 3＂30° Highlift Foot Valve

3＂30° Highlift Foot Valve installed to the bottom of tank container. We can open with foot and it can be closed quickly. Valve designed with shear groove， it breaks to protect the first sealing when accident hitting happens. Packed with
urgent pull ASSY.

Email : panlijuan@bgjx.cn

WhatsApp : +8618136395626

PDF Download

Product Details

Specification

Design Press. 6Bar（87PSI）

Test Press. 9Bar （130.5PSI）

Temperature -40℃～200℃ （-40℉～392℉）

Standard EN14433

Sealing PTFE、PFA+Si

Weight 8.5Kg

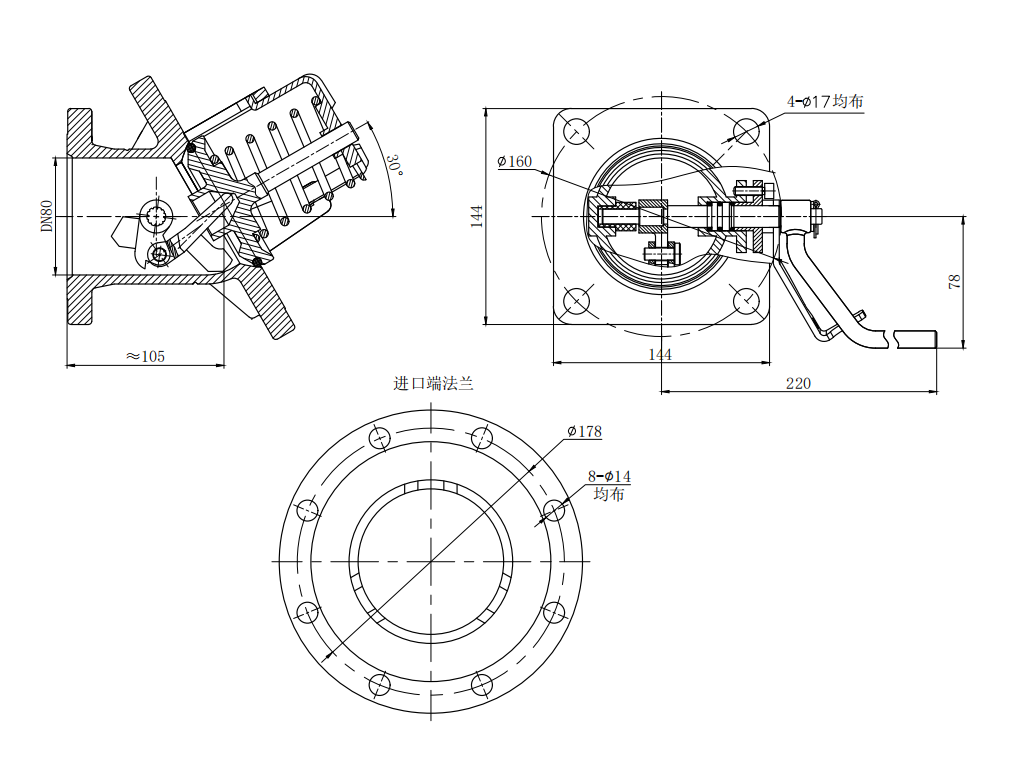

Connection Tank Pad 8×φ14×PCD178

Outlet 4×φ18×PCD160

Fitting Details

BG053500X

TYPE

DWG	Material
BG053500P	304
BG053500R	316
BG053500T	Carbon

DWG	Special
BG053500X	Normal
BG053500X-L	L Handle
BG053500X-S	Shorted handle
BG053500X-Z	Straight handle
BG053500X-P	Food grade seal

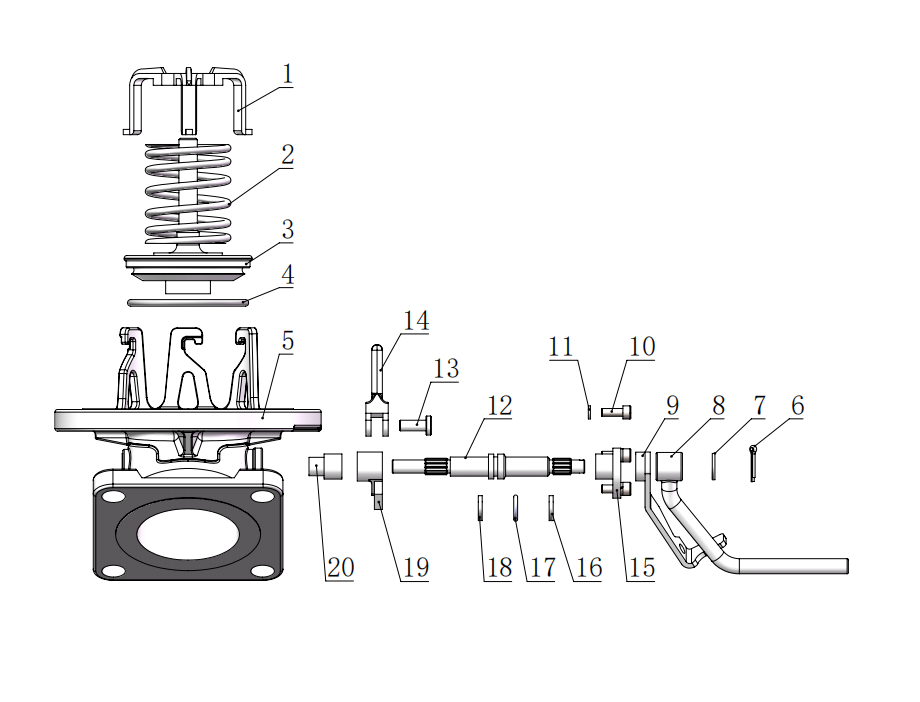

Part Drawing

No.	Part No.	Part Name
1	BG050403X	Spring top plate
2	BG050102X	Spring
3	BG050903X	Solid poppet
4	BG801207BJ	PFA+Si
5	BG053501X	Valve body
6	BG800501P	Pin
7	BG800605P	Washer
8	BG050407P	Handle
9	BG805100P	Urgent pull
10	BG800412P	Screw
11	BG800613P	Spring washer
12	BG050108RS	Stem
13	BG800704R	Rivet
14	BG053502X	Crank Block ASSY
15	BG050805P	Stuffing Clamp
16	BG050110F	PTFE
17	BG801206U	O Ring
18	BG050110F	PTFE
19	BG050802X	Shaft
20	BG050113F	Shaft

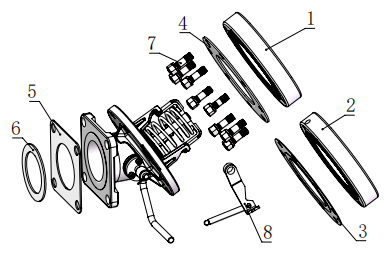

Installation Drawing

DWG	Name
BG9030F-324P/R/T	Welding flange
BG9030SHF-324P/R/T	Welding flange with steam heating
BG015F-5005	Tank pad seal
BG812008F	Tank pad seal
BG802814FQ	Export Gasket (With Holes)（Material PTFE/CNAF） Outlet seal
BG802829F	Export Gasket (Non-Porous)（Material PTFE） Outlet seal
BG820126P	Entrance Bolt Package(8×M12) Tank pad bolts Kit
BG805100P	Remote Control Device (Crank + Spring) Urgent pull ASSY
