DN80 3＂45° Cleanflow Foot Valve

3＂45° Cleanflow Foot Valve installed to the bottom of tank container. We can open with foot and it can be closed quickly. The cleanflow design makes discharge faster. Valve designed with shear groove，it breaks to protect the first sealing when accident hitting happens. Packed with urgent pull ASSY.

Email : panlijuan@bgjx.cn

WhatsApp : +8618136395626

PDF Download

Product Details

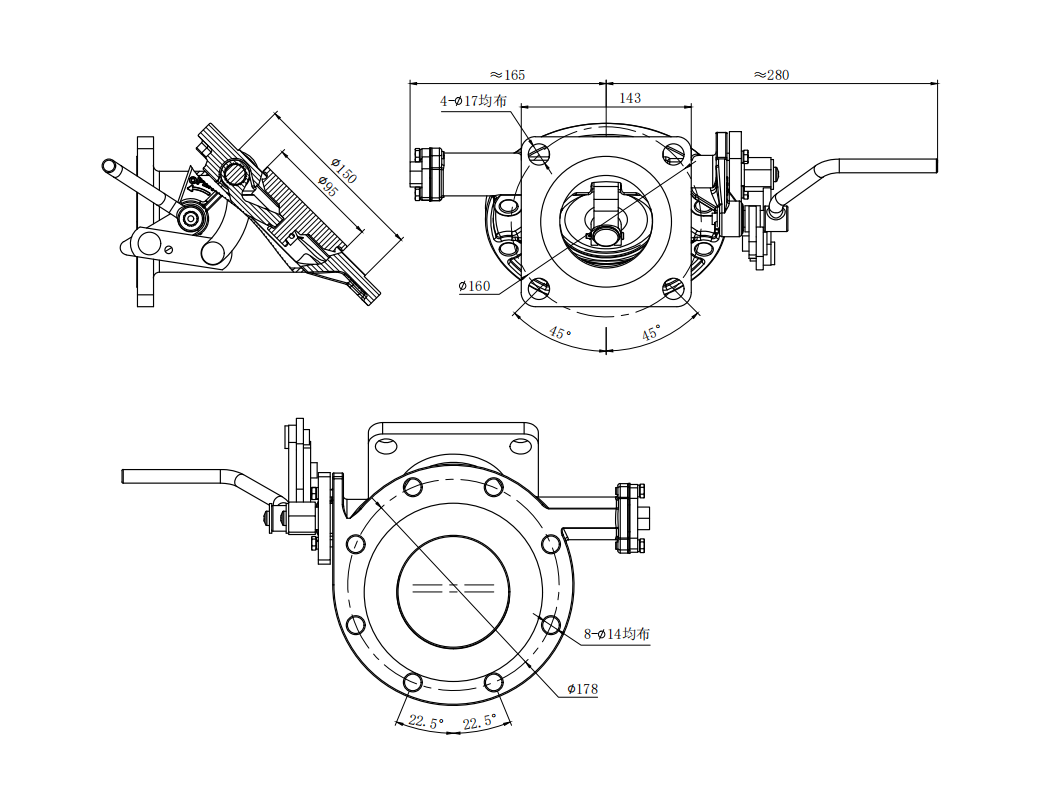

Specification

Design Press. 6Bar（87PSI）

Test Press. 9Bar （130.5PSI）

Temperature -40℃～200℃ （-40℉～392℉）

Standard EN14433

Sealing PTFE、PFA+Si

Weight 16Kg

Connection Tank Pad 8×φ14×PCD178

Outlet 4×φ18×PCD160

Outlet 4×φ17×PCD129.5

Fitting Details

BG0512X0X

TYPE

DWG	Outlet Size
BG051200X	4×φ18×PCD160
BG051250X	4×φ17×PCD129.5

DWG	Material
BG0512X0P	304
BG0512X0R	316L
BG0512X0T	Carbon

DWG	Special
BG0512X0X	Normal
BG0512X0X-S	Shorted handle
BG0512X0X-P	Food grade seal

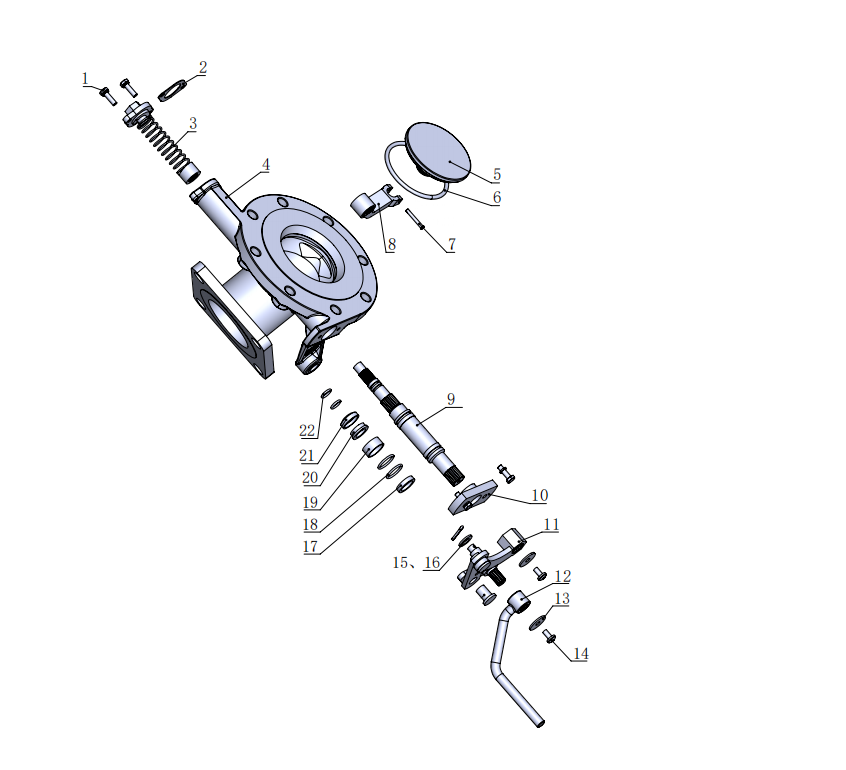

Part Drawing

No.	Part Number	Part Name
1	BG800102P	Bolt
2	BG051214F	Seal
3	BG051209X	Spring ASSY
4	BG0512X1X	Valve body
5	BG051210X	Poppet
6	BG801207BJ	PFA+Si
7	BG800596X	R Pin
8	BG051206P	Lifting fork
9	BG051211RS	Stem
10	BG051203P	Stuffing clamp
11	BG051202P	Holding ASSY
12	BG050107P	Handle
13	BG051201P	Washer
14	BG800458P	Screw
15	BG800501P	Pin
16	BG800605P	Washer
17	BG051204F	PTFE
18	BG801241U	O Ring
19	BG051205F	SS Ring
20	BG051207P	Ring
21	BG051208P	PTFE
22	BG801242U	O Ring

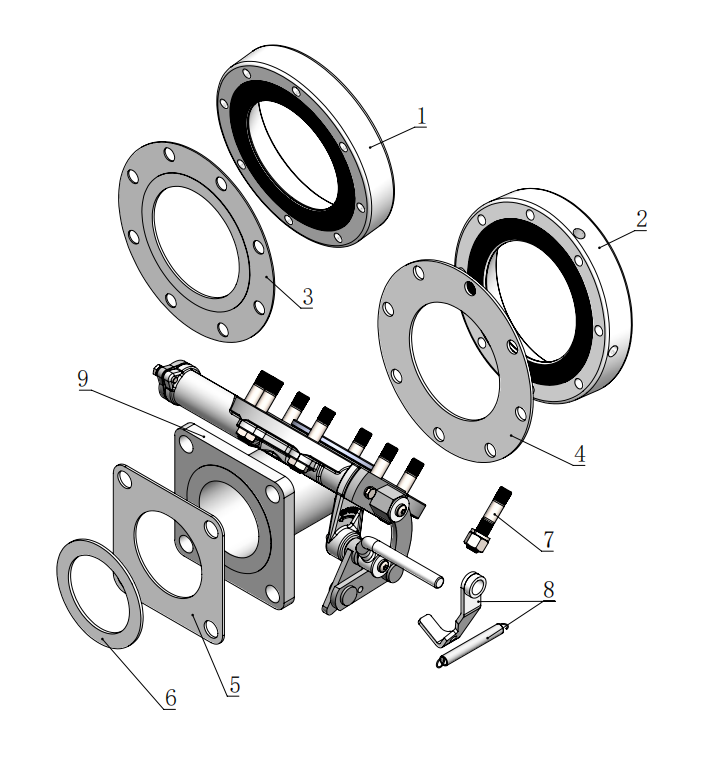

Installation Drawing

DWG	Name
BG9000F-324P/R/T	Welding flange
BG93SHF-324P/R/T	Welding flange with steam heating
BG015F-5005	Inlet Gasket（Material PTFE/CNAF） Tank pad seal
BG812008F	Inlet Gasket（Material PTFE） Tank pad seal
BG802814FQ	Outlet Gasket (With Holes)（Material PTFE/CNAF） Outlet seal
BG802829F	Outlet Gasket (No Holes)（Material PTFE） Outlet seal
BG820106P	Inlet Bolt Pack(8×M12) Tank pad bolts Kit
BG805130P	Remote Control Device (Crank + Spring) Urgent pull ASSY
