DN80 3＂45° Highlift Foot Valve（With heating）

3＂45° Highlift Foot Valve（With heating）installed to the bottom of tank container. We can open with foot and it can be closed quickly. We can use steam or oil to heat valve body from pipes on the valves. Valve designed with shear groove， it breaks to protect the first sealing when accident hitting happens. Packed with urgent pull ASSY.

Email : panlijuan@bgjx.cn

WhatsApp : +8618136395626

PDF Download

Product Details

Specification

Design Press. 6Bar（87PSI）

Test Press. 9Bar （130.5PSI）

Temperature -40℃～200℃ （-40℉～392℉）

Standard EN14433

Sealing PTFE、PFA+Si

Weight 8.5Kg

Connection Tank Pad 8×φ14×PCD178

Outlet 4×φ18×PCD160

Fitting Details

BG053900X-X

TYPE

DWG	Material
BG053900P-X	304
BG053900R-X	316L
BG053900T-X	Carbon

DWG	The size of heating pipe
BG053900X-2	1/4＂BSP
BG053900X-3	3/8＂BSP
BG053900X-4	1/2＂BSP
BG053900X-6	3/4＂BSP

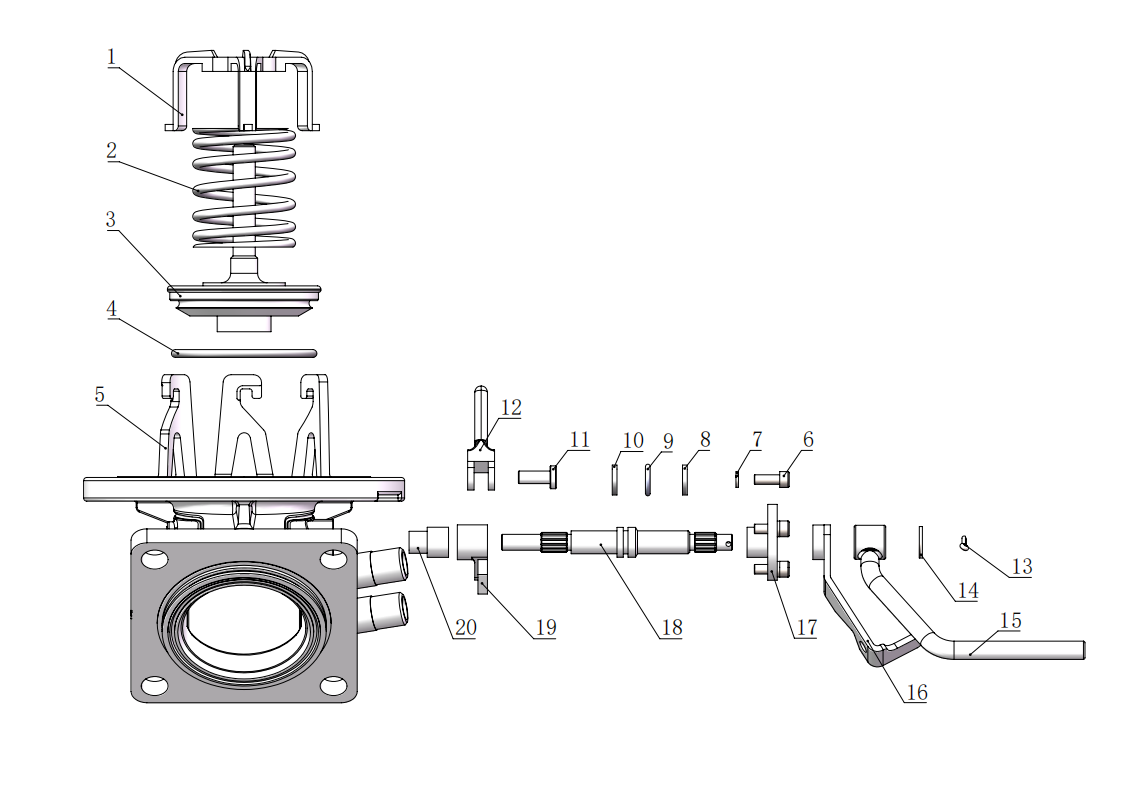

Part Drawing

No.	Part Number	Part Name
1	BG050403X	Spring top plate
2	BG050102X	Spring
3	BG050803X	Solid poppet
4	BG801207BJ	PFA+Si
5	BG053901X	Valve body
6	BG800412P	Screw
7	BG800613P	Spring washer
8	BG050110F	PTFE
9	BG801206U	O Ring
10	BG050110F	PTFE
11	BG800704R	Rivet
12	BG050811P	Crank block ASSY
13	BG800501P	Pin
14	BG800605P	Washer
15	BG050107P	Handle
16	BG805100P	Urgent pull ASSY
17	BG050805P	Stuffing clamp
18	BG050108RS	Stem
19	BG050802X	Shaft
20	BG050113F	Shaft

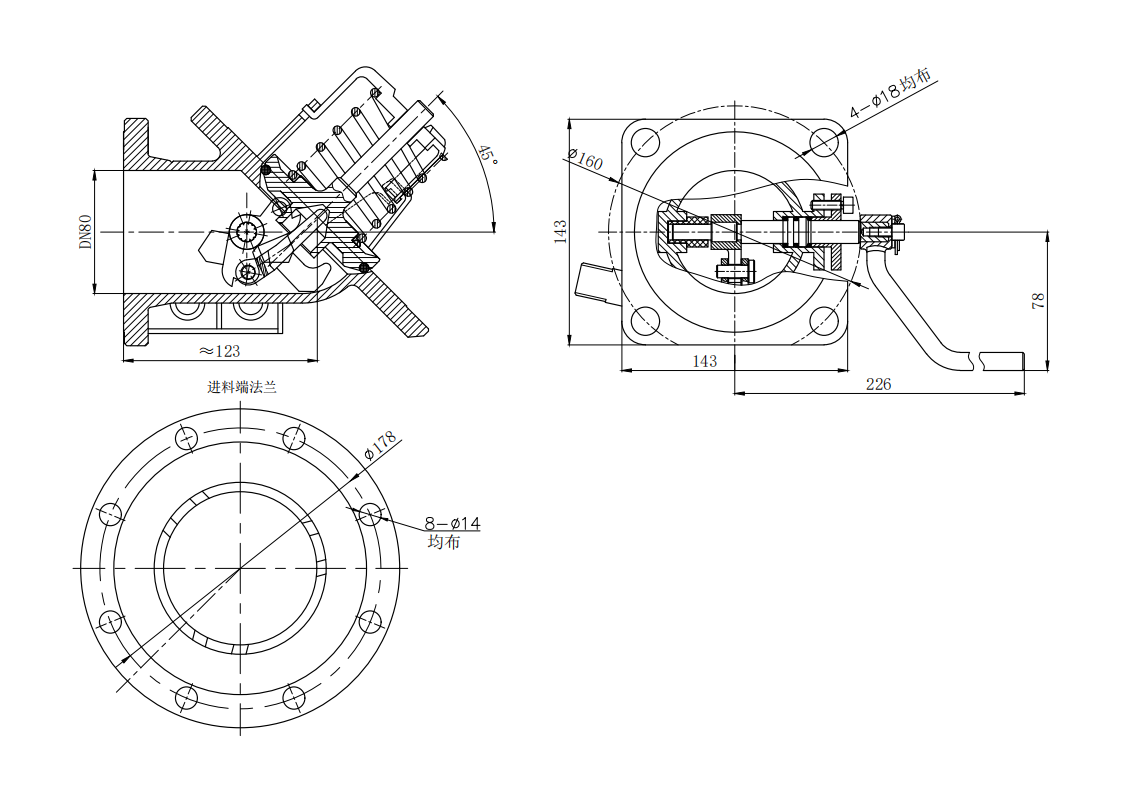

Installation Drawing

DWG	Name
BG9000F-324P/R/T	Welding flange
BG015F-5005	Inlet Gasket（Material PTFE/CNAF） Tank pad seal
BG812008F	Inlet Gasket（Material PTFE） Tank pad seal
BG802814FQ	Outlet Gasket (With Holes)（Material PTFE/CNAF） Outlet seal
BG802829F	Outlet Gasket (No Holes)（Material PTFE） Outlet seal
BG820141P	Inlet Bolt Pack(8×M12) Tank pad bolts Kit
BG805100P	Remote Control Device (Crank + Spring) Urgent pull ASSY
