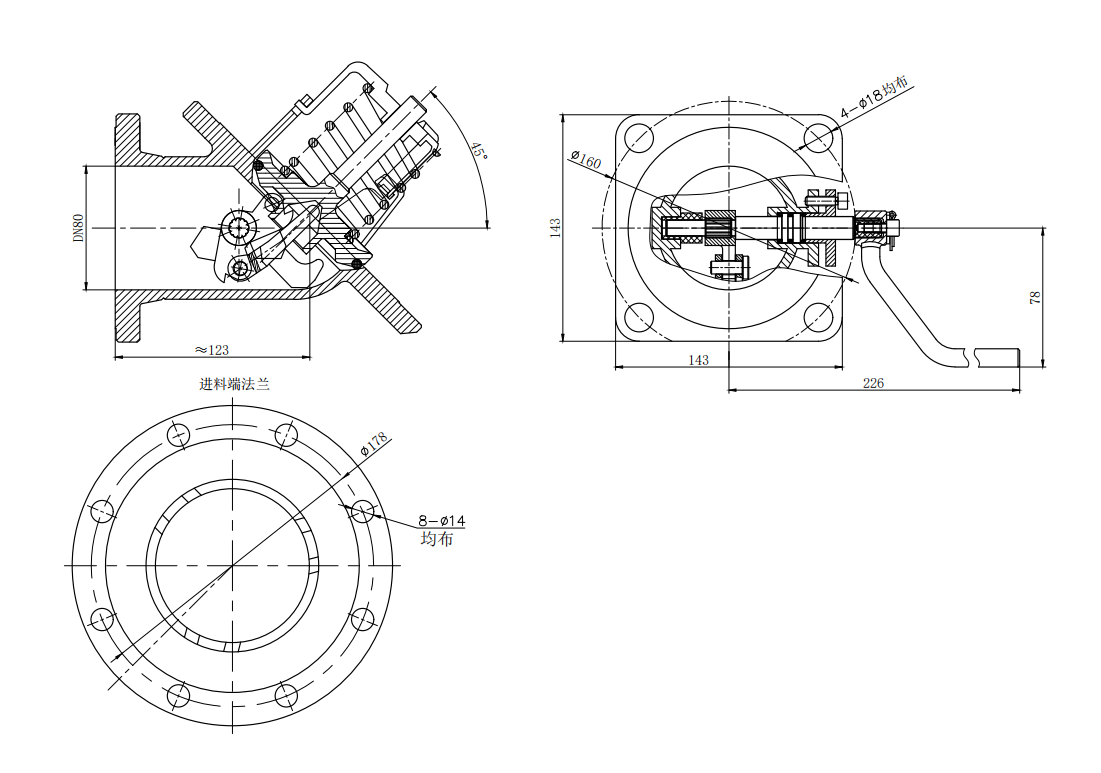

DN80 3＂45° Highlift Foot Valve

3＂45° Highlift Foot Valve installed to the bottom of tank container. We can open with foot and it can be closed quickly. Valve designed with shear groove， it breaks to protect the first sealing when accident hitting happens. Packed with
urgent pull ASSY.

Email : panlijuan@bgjx.cn

WhatsApp : +8618136395626

PDF Download

Product Details

Specification

Design Press. 6Bar（87PSI）

Test Press. 9Bar （130.5PSI）

Temperature -40℃～200℃ （-40℉～392℉）

Standard EN14433

Sealing PTFE、PFA+Si

Weight 8.5Kg

Connection Tank Pad 8×φ14×PCD178

Outlet 4×φ18×PCD160

Fitting Details

BG053600X

TYPE

DWG	Material
BG053600P	304
BG053600R	316L
BG053600T	Carbon

DWG	Special
BG053600X	Normal
BG053600X-L	L Handle
BG053600X-S	Shorted handle
BG053600X-Z	Straight handle
BG053600X-P	Food grade seal

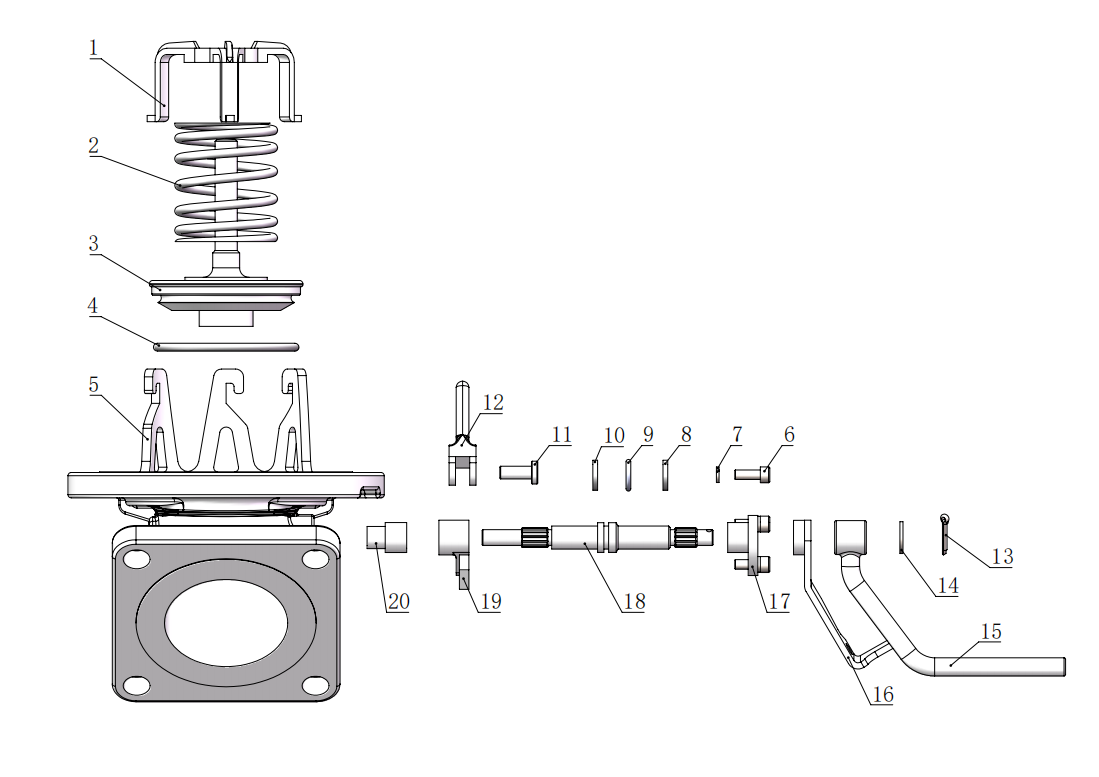

Part Drawing

No.	Part No.	Part Name
1	BG050403X	Spring Top Plate
2	BG050102X	Spring
3	BG050803X	Solid poppet
4	BG801207BJ	PFA+Si
5	BG053601X	Valve Body
6	BG800412P	Pin
7	BG800613P	Washer
8	BG050110F	Handle
9	BG801206U	Remote Control Device (Crank + Spring)Urgent pull ASSY
10	BG050110F	Screw
11	BG800704R	Spring washer
12	BG050811X	Stem
13	BG800501P	Rivet
14	BG800605P	Crank block ASSY
15	BG050407P	Stuffing clamp
16	BG805100P	PTFE
17	BG050805P	O Ring
18	BG050108RS	PTFE
19	BG050802X	Shaft
20	BG050113F	Shaft

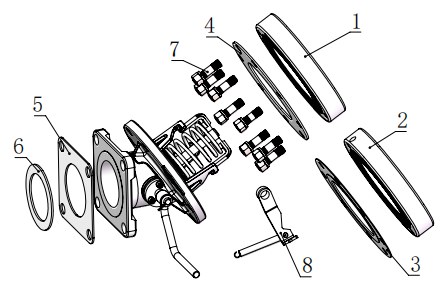

Installation Drawing

DWG	Name
BG9000F-324P/R/T	Welding Flange
BG93SHF-324P/R/T	Welding flange with steam heating
BG015F-5005	Inlet Gasket（Material PTFE/CNAF） Tank pad seal
BG812008F	Inlet Gasket（Material PTFE） Tank pad seal
BG802829F	Outlet Gasket (No Holes)（Material PTFE） Outlet seal
BG820126P	Inlet Bolt Pack（8XM12） Tank pad bolts Kit
BG805100P	Remote Control Device (Crank + Spring) Urgent pull ASSY
