DN80 3＂45° Highlift Foot Valve（Lightweight）

3＂45° Highlift Foot Valve installed to the bottom of tank container. We can open with foot and it can be closed quickly. Valve designed with shear groove， it breaks to protect the first sealing when accident hitting happens. Packed with
urgent pull ASSY. The outlet sizes narrowed to reduce weight.

Email : panlijuan@bgjx.cn

WhatsApp : +8618136395626

PDF Download

Product Details

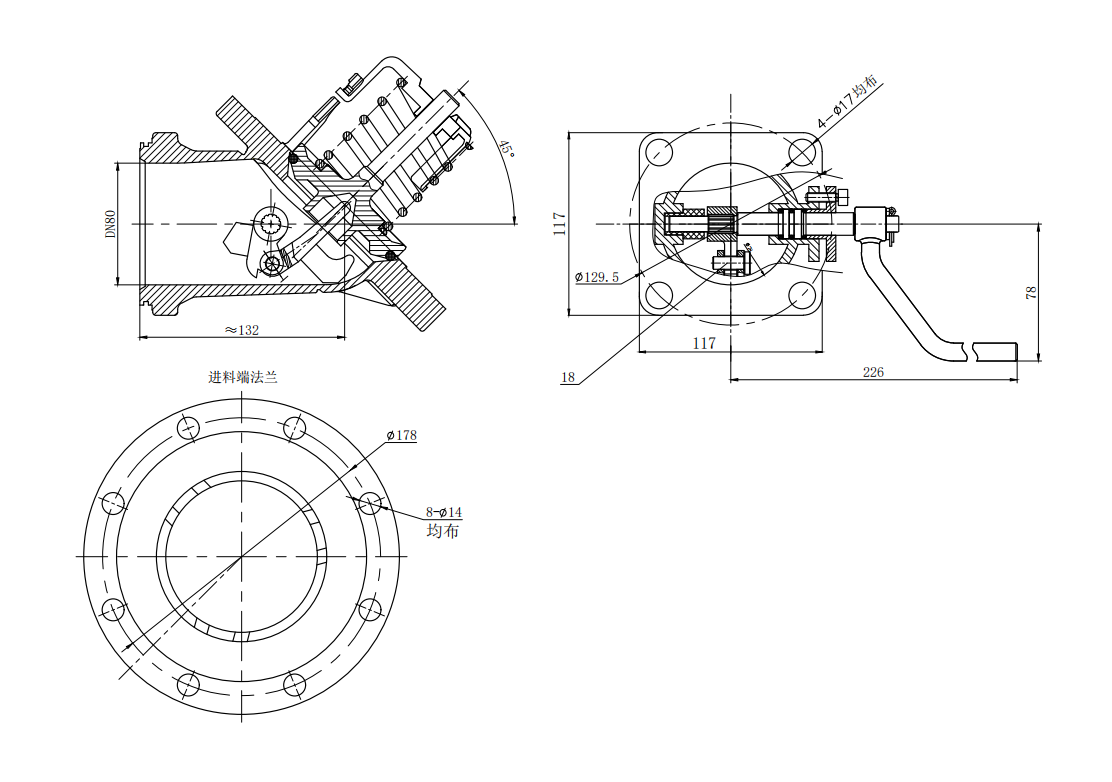

Specification

Design Press. 6Bar（87PSI）

Test Press. 9Bar （130.5PSI）

Temperature -40℃～200℃ （-40℉～392℉）

Standard EN14433

Sealing PTFE、PFA+Si

Weight 7.5Kg

Connection Tank Pad 8×φ14×PCD178

Outlet 4×φ18×PCD129.5

Fitting Details

BG051600X

DWG	Material
BG051600P	304
BG051600R	316L
BG051600T	Carbon

DWG	Special
BG051600X	Normal
BG051600X-L	L Handle
BG051600X-S	Shorted handle
BG051600X-Z	Straight handle
BG051600X-P	Food grade seal

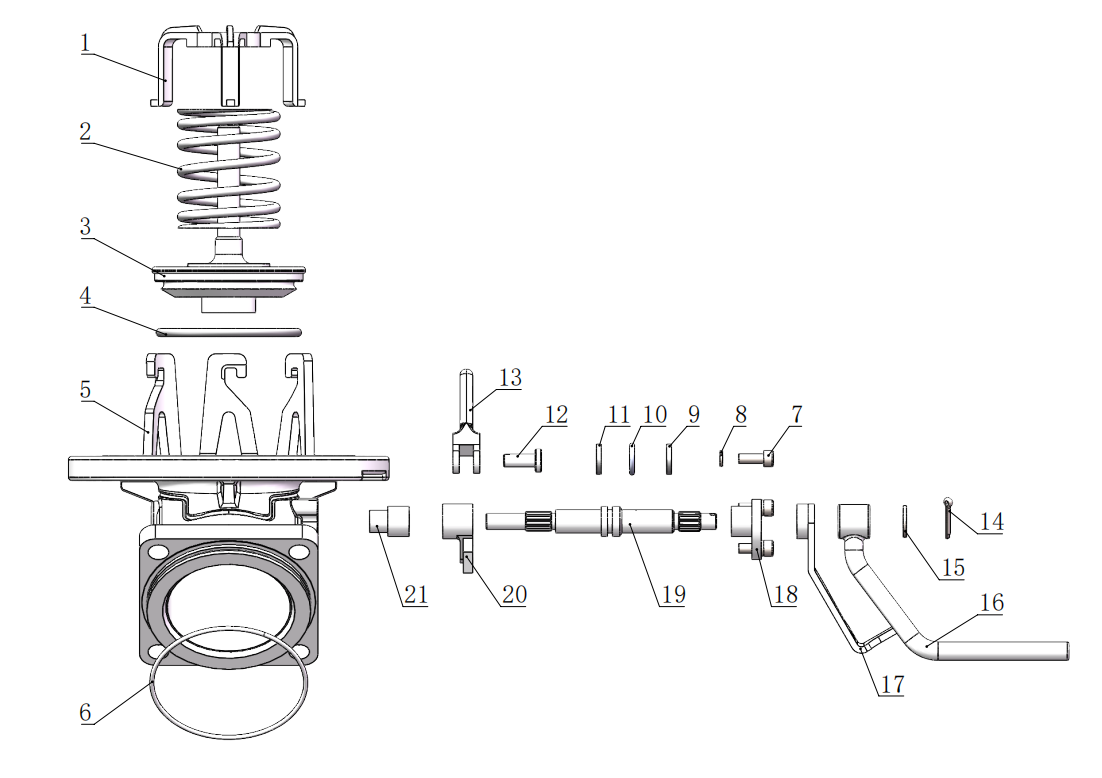

Part Drawing

No.	Part No.	Part Name
1	BG050403P	Spring top plate
2	BG050102P	Spring
3	BG050803P	Solid poppet
4	BG801207BJ	PFA+Si
5	BG051601P	Valve body
6	BG801208U	O ring
7	BG800412P	Screw
8	BG800613P	Spring washer
9	BG050110F	PTFE
10	BG801206U	O ring
11	BG050110F	PTFE
12	BG800704R	Rivet
13	BG050811P	Crank block ASSY
14	BG800501P	Pin
15	BG800605P	Washer
16	BG050107P	Handle
17	BG805100P	Remote Control Device (Crank + Spring)Urgent pull ASSY
18	BG050805P	Stuffing clamp
19	BG050108RS	Stem
20	BG050802P	Shaft
21	BG050113F	Shaft

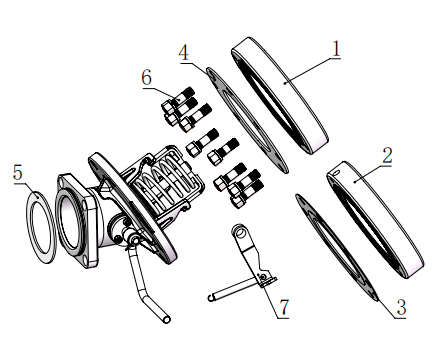

Installation Drawing

DWG	Name
BG9000F-324P/R/T	Welding flange
BG93SHF-324P/R/T	Welding flange with steam heating
BG015F-5005	Inlet Gasket（Material PTFE/CNAF） Tank pad seal
BG812008F	Inlet Gasket（Material PTFE） Tank pad seal
BG802829F	Outlet Gasket (No Holes)（Material PTFE） Outlet seal
BG820126P	Inlet Bolt Pack（8XM12） Tank pad bolts Kit
BG805100P	Remote Control Device (Crank + Spring) Urgent pull ASSY
