DN80 3＂BSP Discharge Ball Valve

3”BSP Flanged Ball Valve, designed with 3”BSP outlet thread ,TIR and closing pin. The character of ball valve is it has two stable sealing. As top discharge，it installed on top of tank container with syphon flange. It also can be used at the bottom.

Email : panlijuan@bgjx.cn

WhatsApp : +8618136395626

PDF Download

Product Details

Specification

Design Press. 16bar（232PSI）

Test Press. 24Bar （348PSI）

Temperature -40℃～200℃ （-40℉～392℉）

Standard EN14432 AND ASME Ⅷ DIV 1

Sealing PTFE

Connection Tank pad 6×φ14×PCD168

Outlet 3”BSP Thread male

Weight 12Kg

Fitting Details

BG021000X-X

TYPE

DWG	Material
BG021000P-X	304
BG021000R-X	316
BG021000T-X	Carbon

DWG	Handle position
BG021000X-L	Left handle
BG021000X-R	Right handle(Normal)

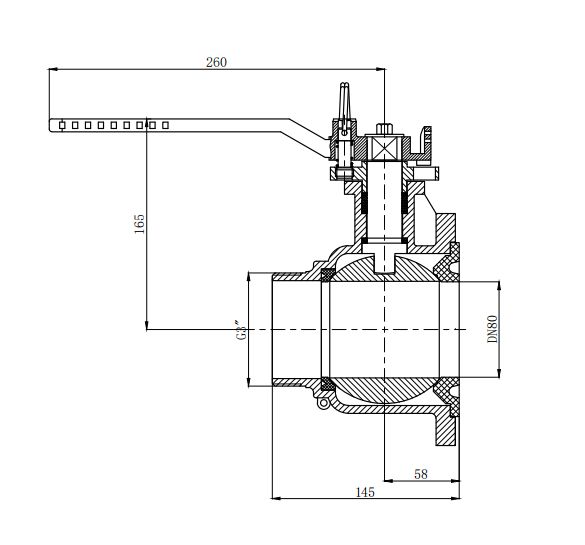

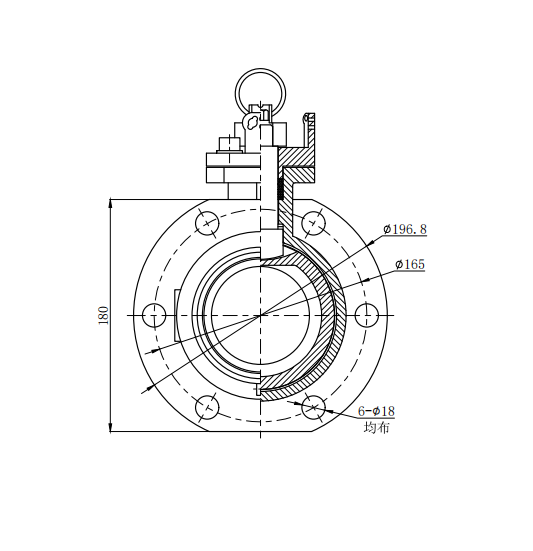

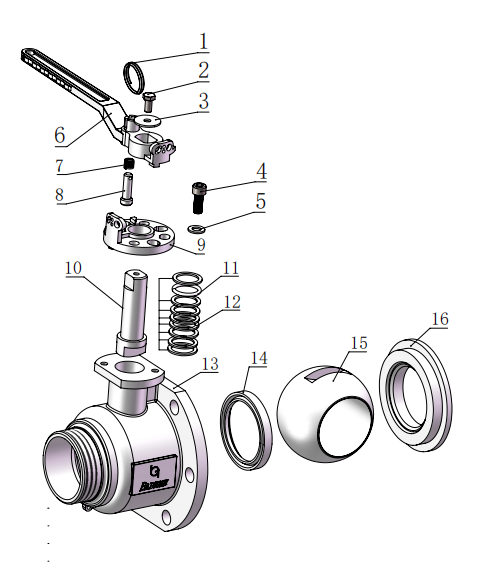

Part Drawing

No.	Part No.	Part Name
1	BG802202P	Split ring
2	BG800105P	Bolt
3	BG020809P	Washer
4	BG800410P	Screw
5	BG800605P	Washer
6	BG020808P	Handle
7	BG801005P	Spring
8	BG803001P	Pin
9	BG020807P	Clamp plate
10	BG020805RS	Stem
11	BG801201N	O Ring
12	BG020806F	PTFE
13	BG021001X	Valve body
14	BG020803F	PTFE
15	BG020804X	Ball
16	BG021002F	PTFE

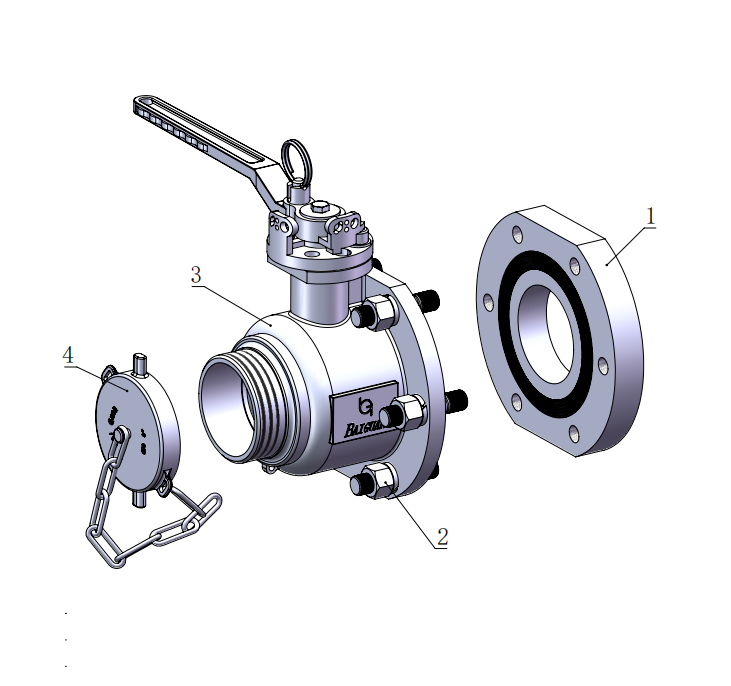

Installation Drawing

Item	Part Name	Part No.
1	Weld In Flange	BG902023X
2	Screw Kits	BG820128P
3	DN80 3＂BSP Discharge Ball Valve	BG021000X-X
4	3＂BSP Dust cap+PTFE+Chain	BG807535X-X
4	3＂BSP Dust cap+PTFE+Rope	BG807536X-X
