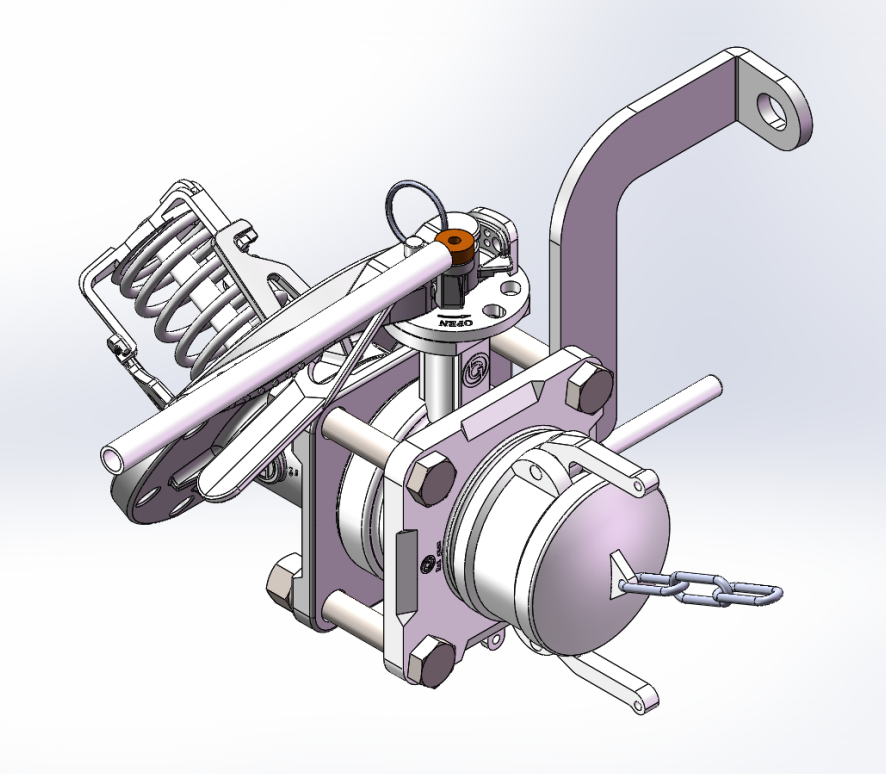

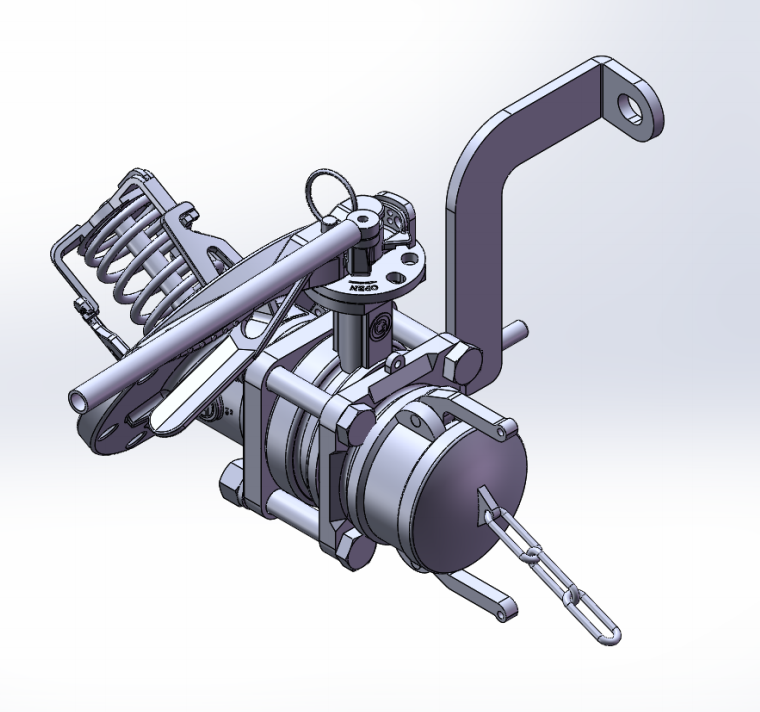

DN80 3＂Bottom Discharge Valve（With locking device）

Airline-liquid Locking Device，connect airline valve and liquid valve by locking. It prevent the tank container sucked.
1.5” BSP Airline ball valve(locking with bottom valve), with flange inlet and 1.5”BSP thread outlet. The air through it when loading and discharging. It also used with N2 protection in special condition. 1/4”BSP gauge connection and handle with TIR.
★Before discharging, the airline valve must be opened before opening bottom valve, or it is forbidden to open bottom valve.
★After discharging, the bottom valve must be closed before closing airline valve, or it is forbidden to close airline valve.

Email : panlijuan@bgjx.cn

WhatsApp : +8618136395626

PDF Download

Product Details

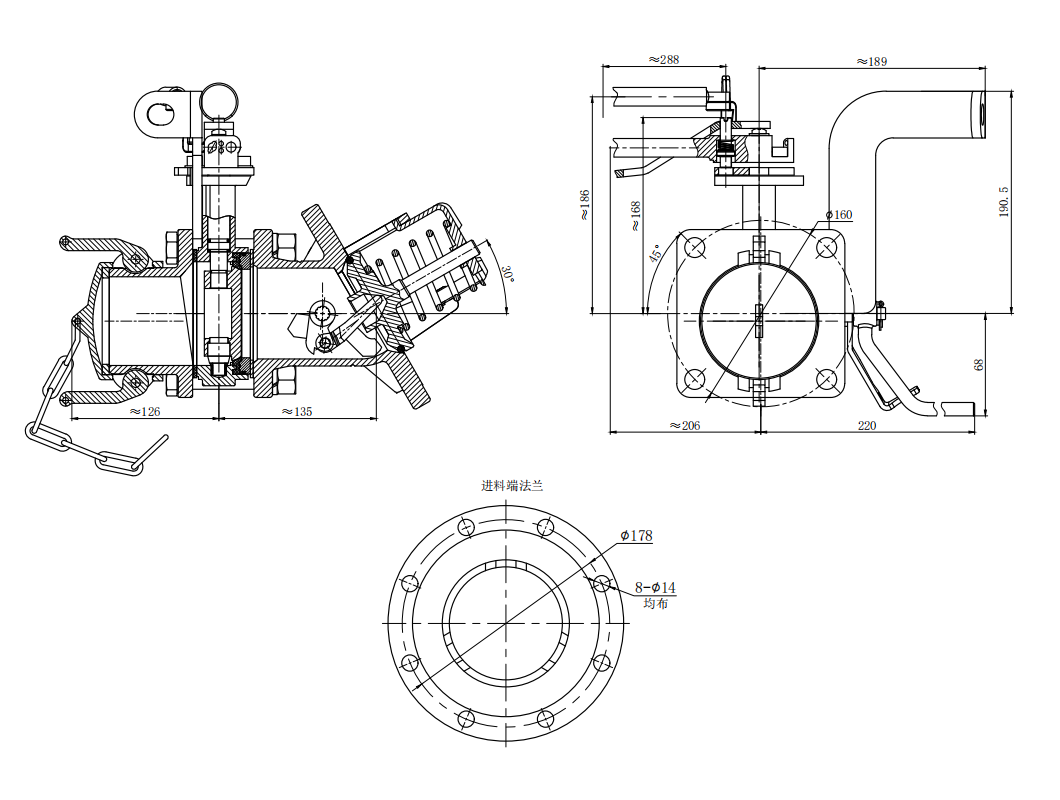

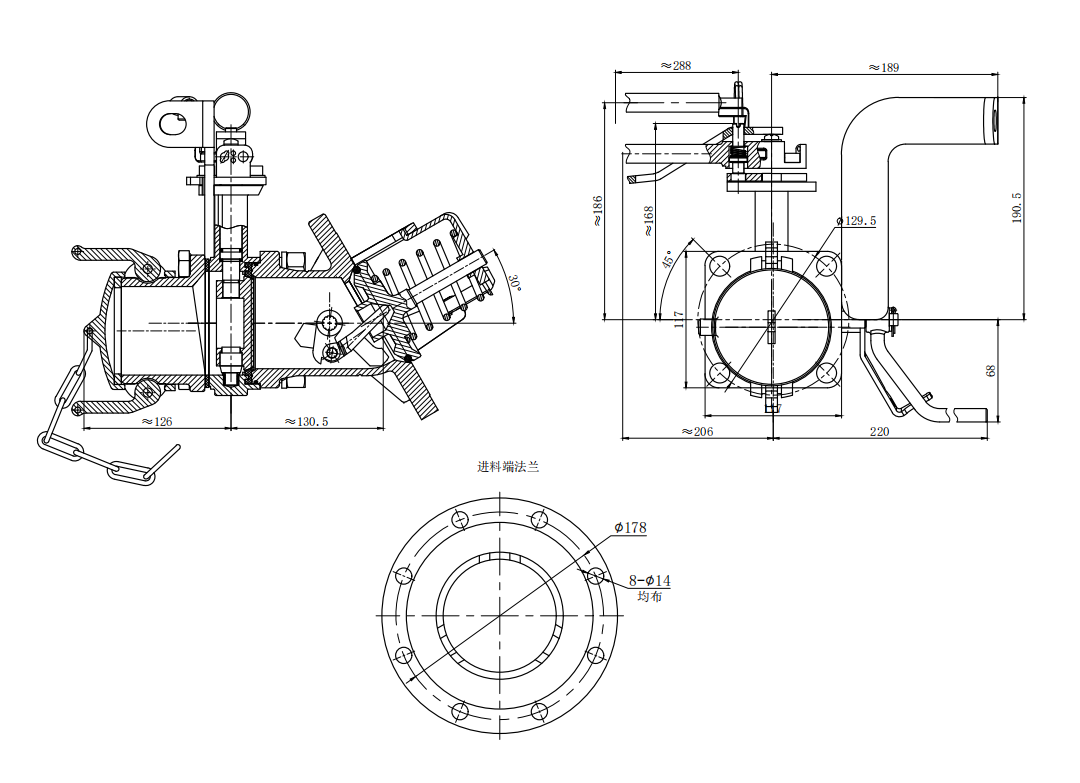

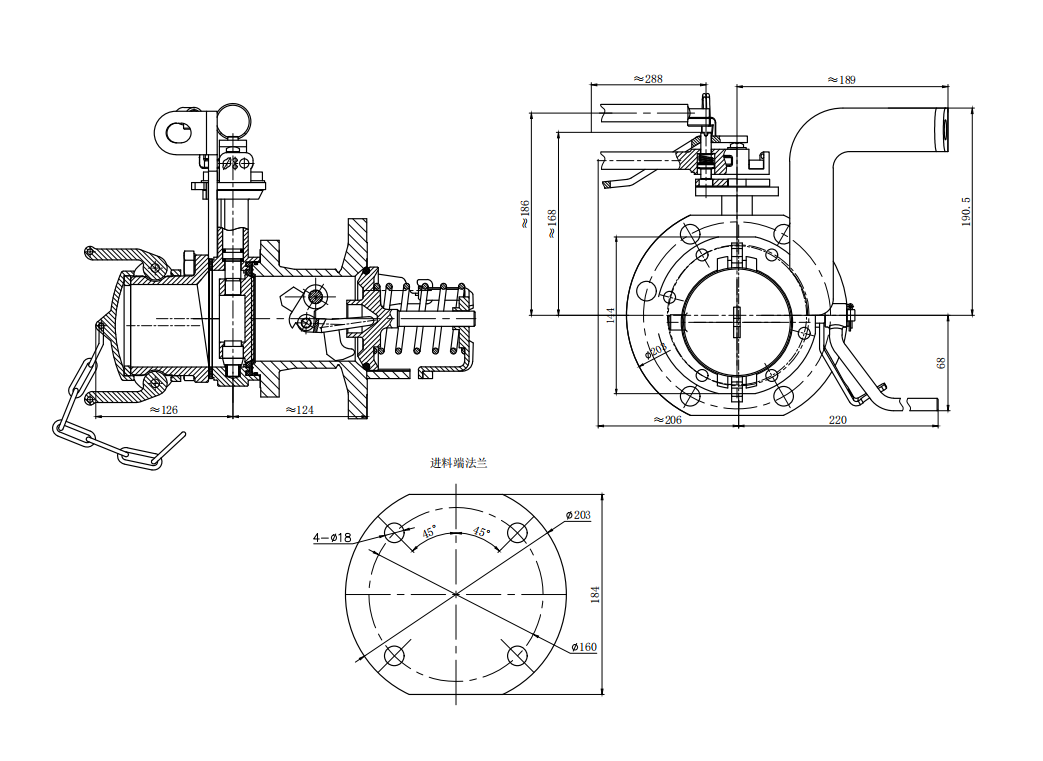

Part Drawing

No.	Part No.	Bottom Discharge Valve
1	BG110200P-XZ	3＂30°Bottom Discharge Valve/Normal
2	BG110250P-XZ	3＂30°Bottom Discharge Valve/Lightweight
3	BG1104X0X-XZ	3＂180°Bottom Discharge Valve

DWG	Specification	Connection

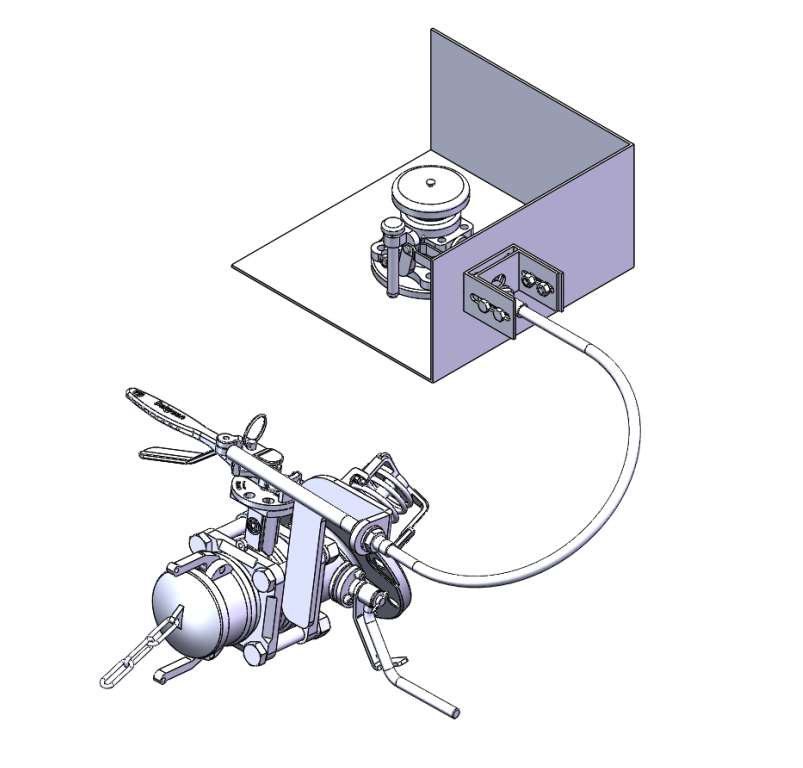

BG123000P-XX	Soft rope	1.5＂Airline Valve+3＂Bottom Discharge Valve
BG123010P-XX	Soft rope + Plastic Protection	1.5＂Airline Valve+3＂Bottom Discharge Valve
BG123020P-XX	Soft rope + Box guard	1.5＂Airline Valve+3＂Bottom Discharge Valve
BG123030P-XX	Soft rope + longer thread + Box guard	1.5＂Airline Valve+3＂Bottom Discharge Valve

DWG	Length of soft rope
BG1230X0P-2.5	Total 2.81m
BG1230X0P-3.0	Total 3.31m
BG1230X0P-3.5	Total 3.81m
BG1230X0P-4.0	Total 4.31m
BG1230X0P-4.5	Total 4.81m
BG1230X0P-5.0	Total 5.31m
BG1230X0P-5.5	Total 5.81m
BG1230X0P-6.0	Total 6.31m
BG1230X0P-6.5	Total 6.81m
