DN80 3＂45°Bottom Discharge Valve

DN80 3＂45°Bottom Discharge Valve，combined with highlift valve、butterfly valve and dust cover. It installed in the end of tank container. It has three seals to keep sealing.

Email : panlijuan@bgjx.cn

WhatsApp : +8618136395626

PDF Download

Product Details

Specification

Design Press. 6Bar（87PSI）

Test Press. 9Bar （130.5PSI）

Temperature -40℃～200℃ （-40℉～392℉）

Standard EN14433

Sealing PTFE、PFA+Si

Weight 20Kg

Connection Tank Pad 8×φ14×PCD178

Outlet 3”BSP or Camlock

Fitting Details

BG111XX0X-XX

TYPE

DWG	TYPE
BG111100X-XX	Normal+Camlock
BG111150X-XX	Lightweight+Camlock
BG111200X-XX	Normal+BSP Outlet
BG111250X-XX	Lightweight+BSP Outlet

DWG	Material
BG111XX0P-XX	304
BG111XX0R-XX	316
BG111XX0T-XX	Carbon

DWG	Material of dust cap seal
BG111XX0X-FX	PTFE
BG111XX0X-UX	FKM
BG111XX0X-BX	Si
BG111250X-EX	EPDM
BG111XX0X-PX	All seals food grade

图号/DWG	TYPE
BG111XX0X-XN	Normal
BG111XX0X-XD	+Synchronous device
BG111XX0X-XZ	+Locking device
BG111XX0X-XQ4	+1/2＂Sample valve
BG111XX0X-XQ6	+3/4＂Sample valve

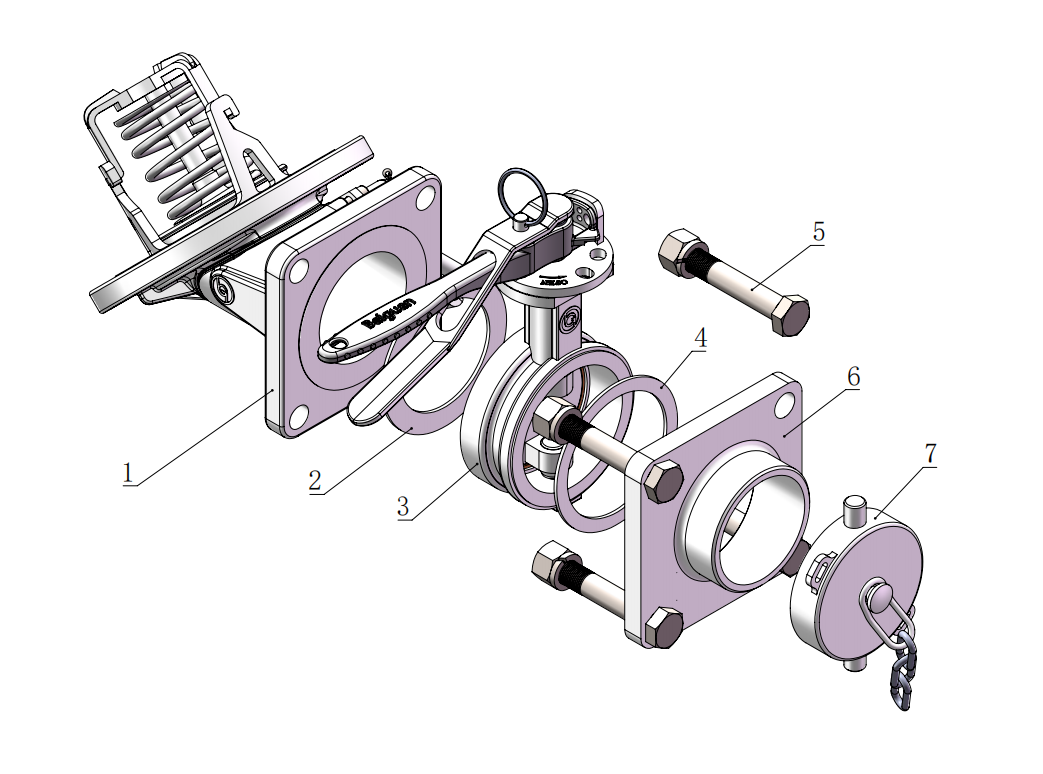

Part Drawing

No.	Part No.	Part Name
1	BG053600X	3＂45°Bottom Discharge Valve/Normal
1	BG051600X	3＂45°Bottom Discharge Valve/Lightweight
2	BG802829F	Seal
3	BG031400X	3＂Butterfly valve
4	BG802830F	Seal
5	BG803146P	3＂BSP Thread male/Normal
5	BG803169P	3＂BSP Thread male/Lightweight
6	BG070801X	3＂BSP Thread male/Normal
	BG070806X	3＂BSP Thread male/Lightweight
	BG070901X	3＂Camlock/Normal
	BG070906X	3＂Camlock/Lightweight
7	BG807535X-F	3＂BSP Dust cap ASSY（PTFE+Chain）
	BG807536X-F	3＂BSP Dust cap ASSY（PTFE+Wirerope）
	BG807535X-U	3＂BSP Dust cap ASSY（FKM+Chain）
	BG807536X-U	3＂BSP Dust cap ASSY（FKM+Wirerope）

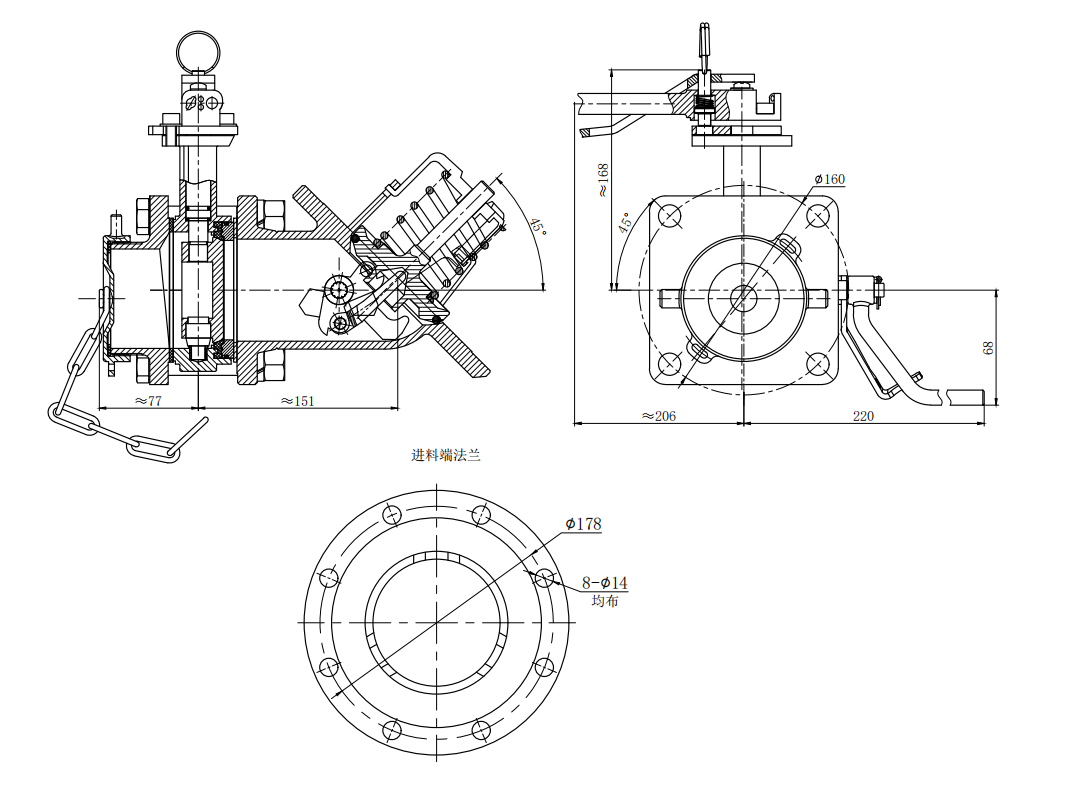

Installation Drawing

DWG	Part Name
BG9000F-324P/R/T	Welding flange
BG93SHF-324P/R/T	Welding flange with steam heating
BG015F-5005	Inlet Gasket（Material PTFE/CNAF） Tank pad seal
BG812008F	Inlet Gasket（Material PTFE） Tank pad seal
BG820141P	Inlet Bolt Pack(8×M12) Tank pad bolts Kit
