DN80 3＂180°Bottom Discharge Valve

DN80 3＂180°Bottom Discharge Valve，combined with highlift valve、butterfly valve and dust cover. It installed in the end of tank container. It has three seals to keep sealing.

Email : panlijuan@bgjx.cn

WhatsApp : +8618136395626

PDF Download

Product Details

Specification

Design Press. 6Bar（87PSI）

Test Press. 9Bar （130.5PSI）

Temperature -40℃～200℃ （-40℉～392℉）

Standard EN14433

Sealing PTFE、PFA+Si

Weight 20Kg

Connection Tank Pad 6×φ18×PCD172(unequal)

Tank Pad 4×φ18×PCD160

Outlet 3”BSP or Camlock

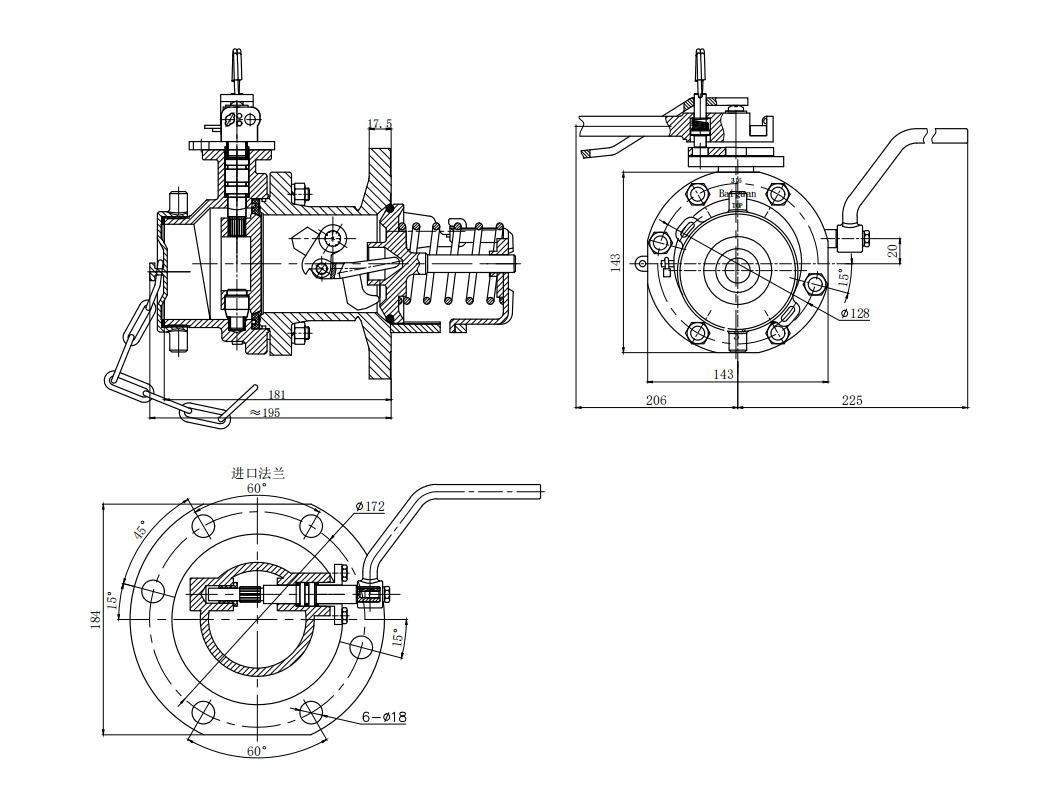

Fitting Details

BG1104X0X-XX

TYPE

DWG	Tank pad
BG110400X-XX	6×Φ18×PCD172(Non-Uniformly Distributed)
BG110450X-XX	4×Φ18×PCD160

DWG	Material
BG1104X0P-XX	304
BG1104X0R-XX	316
BG1104X0T-XX	Carbon

DWG	Material of dust cap seal
BG1104X0X-UX	PTFE
BG1104X0X-BX	FKM
BG1104X0X-EX	Si
BG1104X0X-PX	EPDM

DWG	TYPE
BG110XX0X-XN	Normal
BG110XX0X-XD	+Synchronous device
BG110XX0X-XZ	+Locking device
BG110XX0X-XQ4	+1/2＂Sample valve
BG110XX0X-XQ6	+3/4＂Sample valve

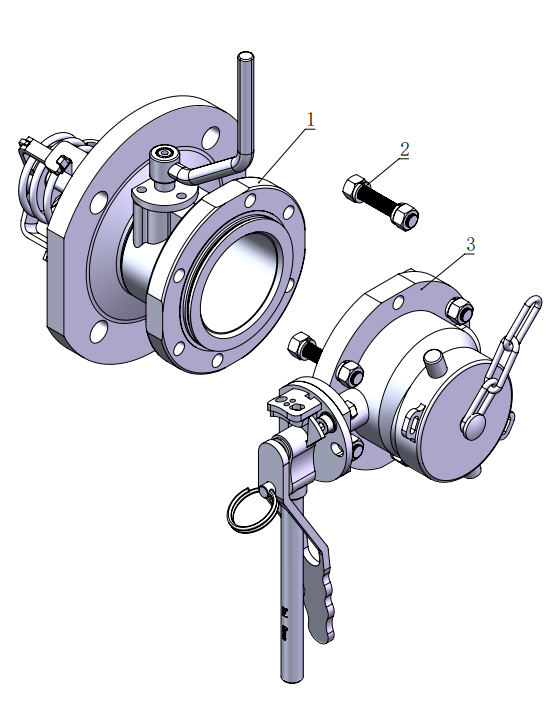

Part Drawing

No.	Part No.	Part Name
1	BG050800R	DN80 3＂180°Bottom Discharge Valve
2	BG820421P	Bolts ASSY
3	BG031200P	3＂BSP Male butterfly valve

Installation Drawing

DWG	Part Name
BGS0656P/R/T-B	Welding flange（Unequal）
BGS0656P/R/T	Welding flange
BG802835FQ	Inlet Gasket (6 Holes, Non-Uniformly Distributed)（Material PTFE/CNAF） Tank pad seal（PTFE/CNAF、6 holes unequal）
BG812006FQ	Inlet Gasket (4 Holes Evenly Distributed)（Material PTFE/CNAF） Tank pad seal（PTFE/CNAF、4 holes equal）
BG820059P	Inlet Bolt Pack(6×M16)/Tank pad bolts Kit
BG805110P	Remote Control Device (Crank + Spring) Urgent pull ASSY
