ANSI Flange

ASME B16.5, Raised Face / RF

Email : panlijuan@bgjx.cn

WhatsApp : +8618136395626

PDF Download

Product Details

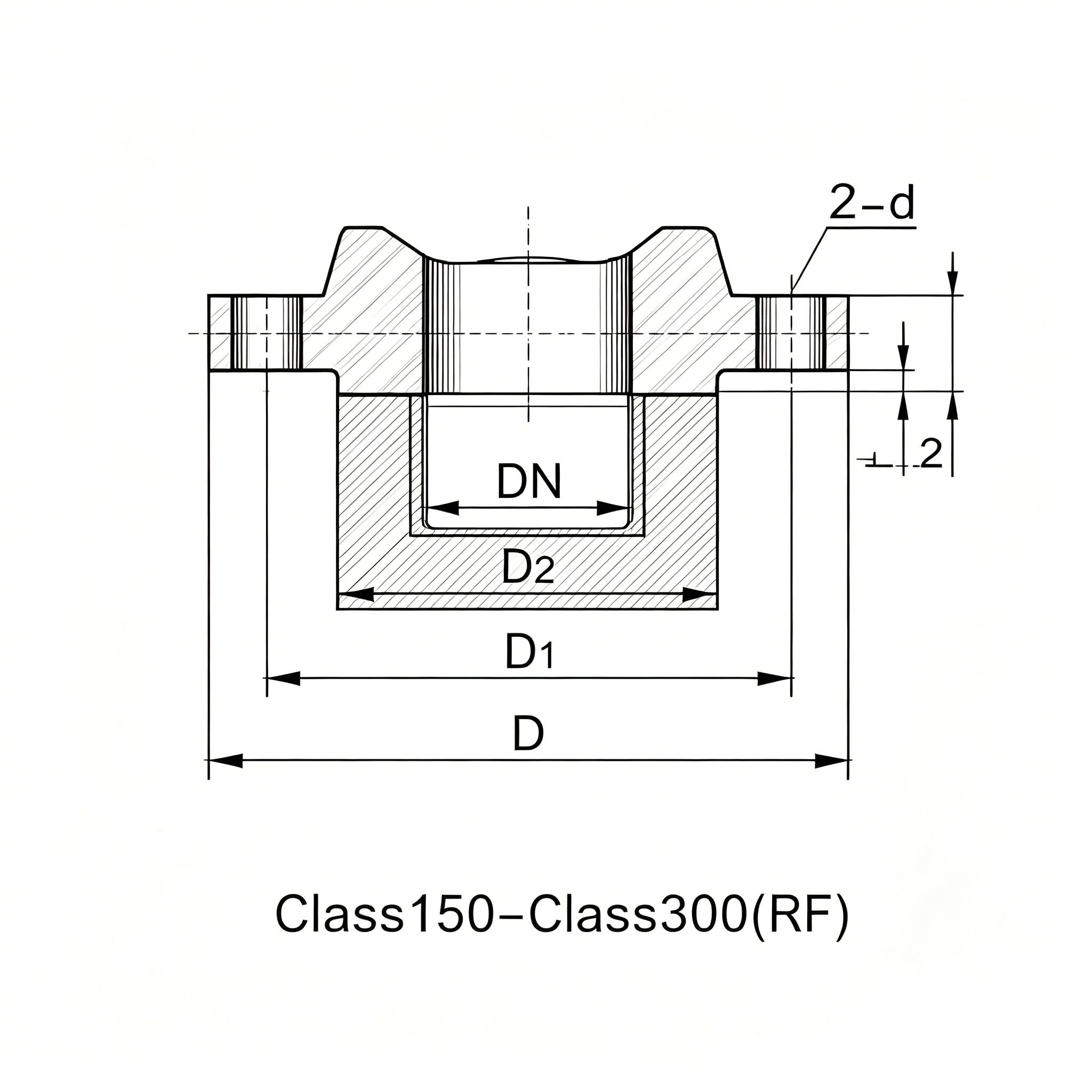

Connection dimension (ASME B16.5, Raised Face / RF)

Nominal Pressure	DN (mm)	DN (in)	D (mm)	D1 (mm)	D2 (mm)	b (mm)	Quantity of the bolt (Z)	Aperture of the bolt (Φ)
Class150	15	1/2	89	60.5	35	11.5	4	16
	20	3/4	98	70	43	12.5	4	16
	25	1	108	79.5	51	14	4	16
	32	1 1/4	117	89	64	16	4	16
	40	1 1/2	127	98.5	73	17.5	4	16
	50	2	152	120.5	92	19	4	19
	65	2 1/2	178	139.5	105	22.5	4	19
	80	3	190	152.5	127	24	4	19
	100	4	229	190.5	157	24	8	19
	125	5	254	216	186	24	8	22
	150	6	279	241.5	216	26	8	22
	200	8	343	298.5	270	29	8	22
	250	10	406	362	324	31	12	25
	300	12	483	432	381	32	12	25
	350	14	533	476	413	35	12	29
	400	16	597	540	470	37	16	29
	450	18	635	578	533	40	16	32
	500	20	699	635	584	43	20	32
	600	24	813	749.5	692	48	20	35
