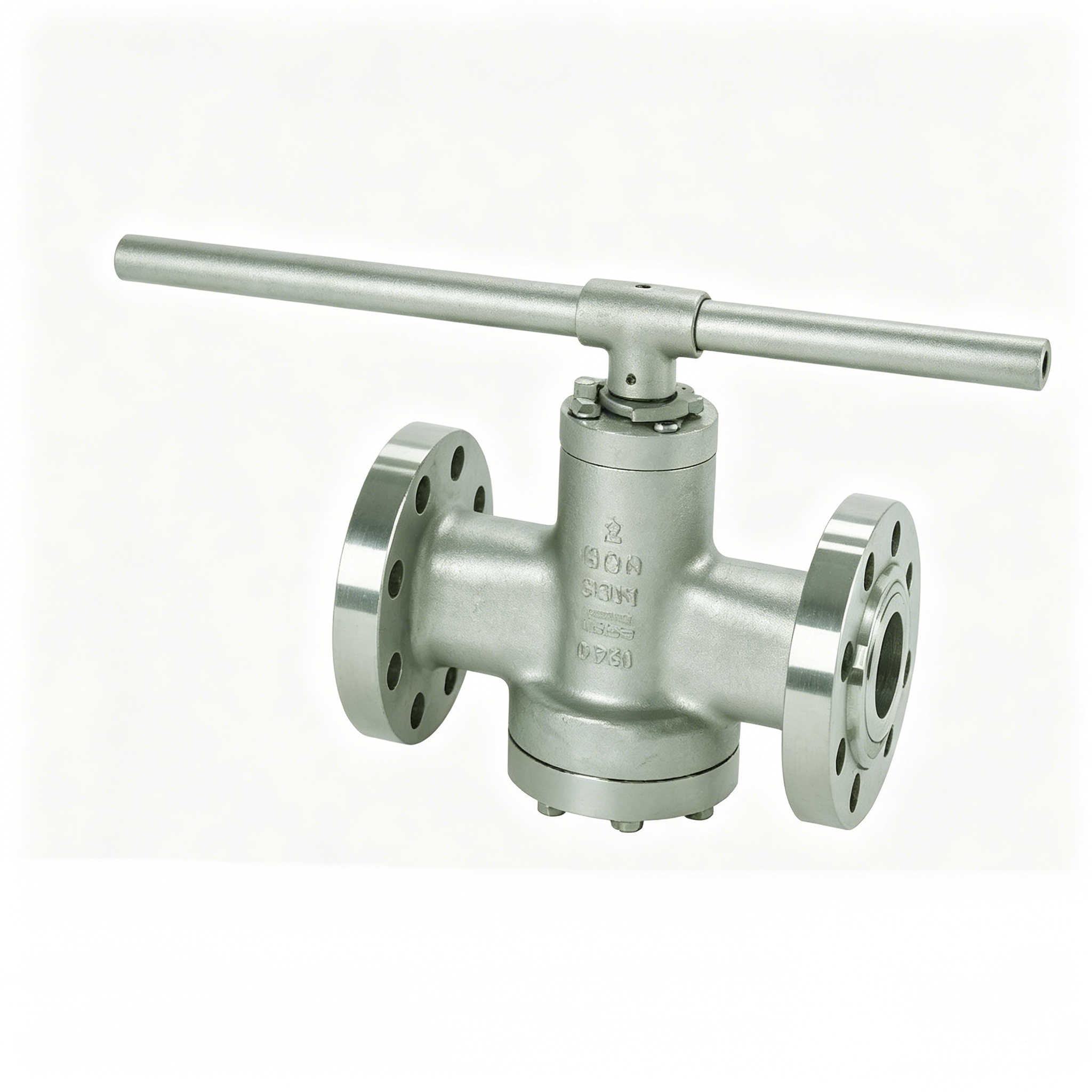

Pressure Balanced Plug Valve

Characters
1.Manual and gear operated. To avoid operating valve by mistake, valve can be with padlock fitting.
2.Anti-static design, fire-safe.
3.Sealant injection system on body and stem.

Email : panlijuan@bgjx.cn

WhatsApp : +8618136395626

PDF Download

Product Details

Main Size and Weight：

Short Pattern (Class 150 | PN1.6-2.0MPa)

NPS (inch)	A (mm)	A1 (mm)	D (mm)	H (mm)	H1 (mm)	W (mm)	WT (kg)	T (N.m)
2	178	267	152	175	108	350	18	80
3	203	330	190	180	127	600	31	180
4	229	356	229	214	158	700	50	250
6	267	457	279	270	185	900	93	320
*8	292	521	343	370	220	600	299	1100
*10	330	559	406	420	250	600	320	1520
*12	356	635	463	490	310	600	350	2100

Venturi Pattern (Class 150 | PN1.6-2.0MPa)

NPS (inch)	A (mm)	A1 (mm)	D (mm)	H (mm)	H1 (mm)	W (mm)	WT (kg)	T (N.m)
*10	533	559	406	420	250	600	335	1520
*12	610	635	483	490	310	600	365	2100
*14	686	686	533	495	315	600	386	2400
*16	762	762	597	640	360	700	495	2720
*18	864	864	635	680	420	762	620	2950
*20	914	914	698	735	470	762	700	3020
*24	1067	1067	813	790	520	762	820	3812

Short Pattern (Class 300 | PN2.5-5.0MPa)

NPS (inch)	A (mm)	A1 (mm)	D (mm)	H (mm)	H1 (mm)	W (mm)	WT (kg)	T (N.m)
2	216	267	165	184	104	500	23	100
3	283	330	210	185	117	600	38	250
4	305	356	254	265	143	700	68	356
6	403	457	318	307	180	900	142	720
*8	419	521	381	390	203	600	202	1450
*10	457	559	445	430	233	600	278	2210
*12	502	635	521	580	285	700	375	2712

Venturi Pattern (Class 300 | PN2.5-5.0MPa)

NPS (inch)	A (mm)	A1 (mm)	D (mm)	H (mm)	H1 (mm)	W (mm)	WT (kg)	T (N.m)
6	403	457	318	307	180	900	142	720
*8	419	521	381	390	203	600	202	1450
*10	457	559	445	430	233	600	278	2210
*12	502	635	521	580	285	700	375	2712
*14	762	762	584	630	312	700	510	3500
*16	838	838	648	735	345	762	620	4100
*18	914	914	711	780	410	762	730	5200
*20	991	991	775	830	470	762	870	6210
*24	1143	1143	914	880	520	762	1020	8100

Reduced Bore Pattern (Class 600 | PN6.4-10.0MPa)

NPS (inch)	A (mm)	A1 (mm)	D (mm)	H (mm)	H1 (mm)	W (mm)	WT (kg)	T (N.m)
2	292	292	165	175	101	500	24	200
3	356	356	210	180	121	770	45	380
4	432	432	273	250	150	1100	85	720
6	559	559	356	340	185	1100	194	1200
8	660	660	419	405	216	600	305	2500
*10	787	787	508	555	276	700	620	3000

Notes

* Gear operated

Characters

1.Manual and gear operated. To avoid operating valve by mistake, valve can be with padlock fitting.

2.Anti-static design, fire-safe.

3.Sealant injection system on body and stem.
