Pipe Flange Of Integral Steel

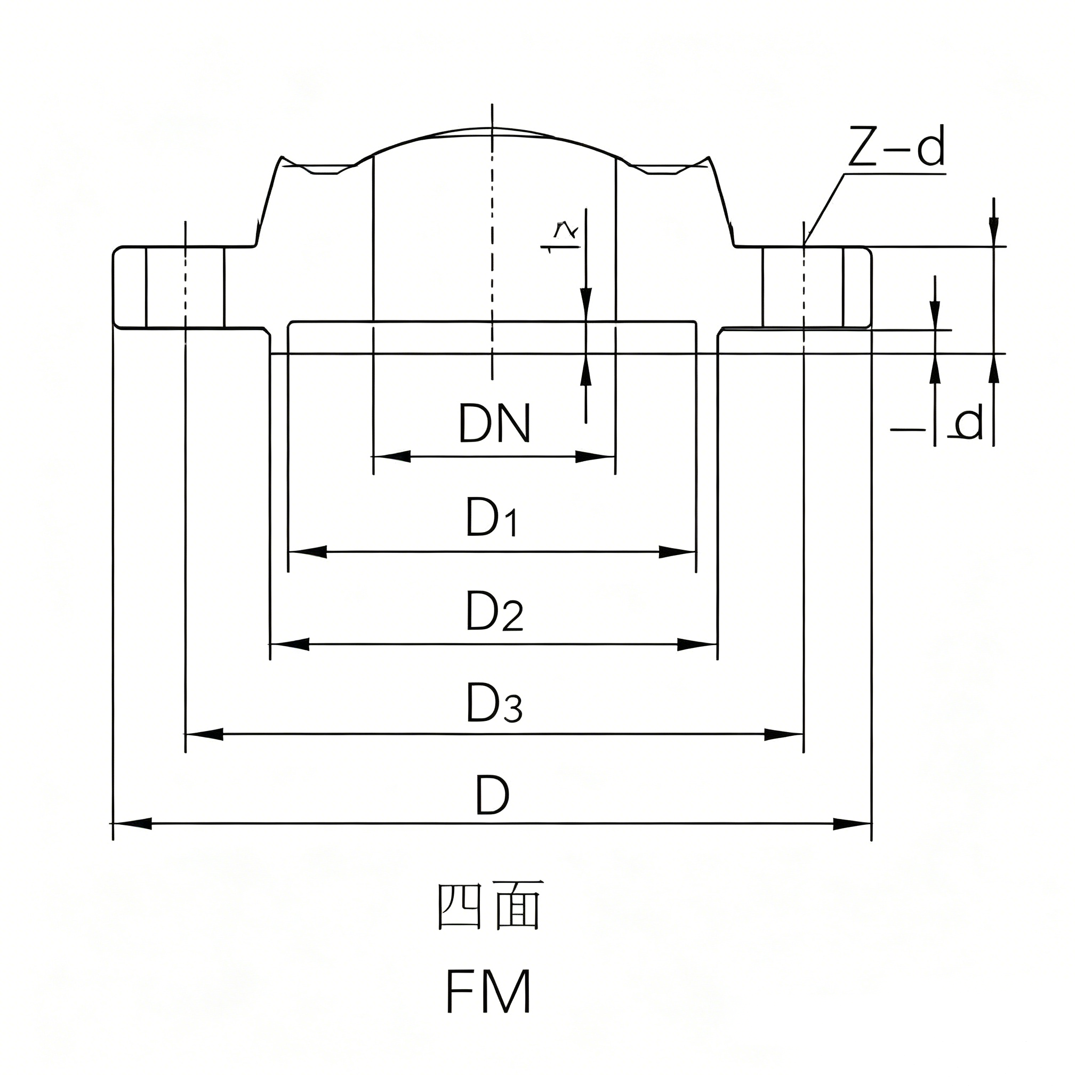

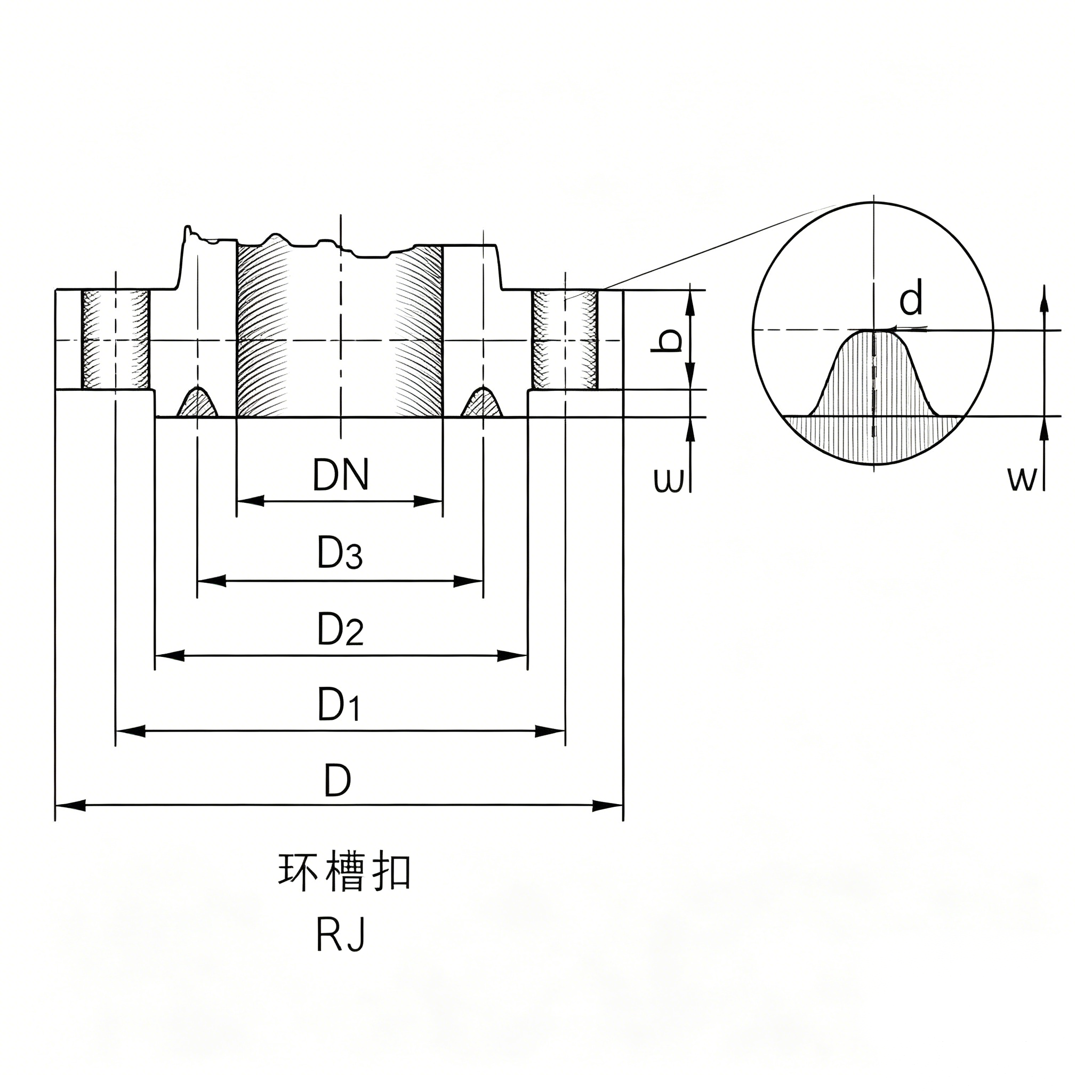

Connection dimension (Raised Face / RF)

Email : panlijuan@bgjx.cn

WhatsApp : +8618136395626

PDF Download

Product Details

Connection dimension (Raised Face / RF)

Nominal pressure PN 1.6 MPa

DN (mm)	D (mm)	D1 (mm)	D2 (mm)	b (mm)	f (mm)	z-d (mm)
15	95	65	45	14	2	4-14
20	105	75	55	14	2	4-14
25	115	85	65	14	2	4-14
32	135	100	78	16	2	4-18
40	145	110	85	16	3	4-18
50	160	125	100	16	3	4-18
65	180	145	120	18	3	4-18
80	195	160	135	20	3	8-18
100	215	180	155	20	3	8-18
125	245	210	185	22	3	8-18
150	280	240	210	24	3	8-23
200	335	295	265	26	3	12-23
250	405	355	320	30	3	12-25
300	460	410	375	30	4	12-25
350	520	470	435	34	4	16-25
400	580	525	485	36	4	16-30
450	640	585	545	40	4	20-30
500	705	650	608	44	4	20-34
600	840	770	718	48	5	20-41
700	910	840	788	50	5	24-41
800	1020	950	898	52	5	24-41
900	1120	1050	998	54	5	28-41
1000	1255	1170	1110	56	5	28-48
1200	1485	1390	1325	58	5	32-54

Nominal pressure PN 2.5 MPa

DN (mm)	D (mm)	D1 (mm)	D2 (mm)	b (mm)	f (mm)	z-d (mm)
10	90	60	40	16	2	4-14
15	95	65	45	16	2	4-14
20	105	75	55	16	2	4-14
25	115	85	65	16	2	4-14
32	135	100	78	18	2	4-18
40	145	110	85	18	3	4-18
50	160	125	100	20	3	4-18
65	180	145	120	22	3	8-18
80	195	160	135	22	3	8-18
100	230	190	160	24	3	8-23
125	270	220	188	28	3	8-25
150	300	250	218	30	3	8-25
200	360	310	278	34	3	12-25
250	425	370	332	36	3	12-30
300	485	430	390	40	4	16-30
350	550	490	448	44	4	16-34
400	610	550	505	48	4	16-34
450	680	600	555	50	4	20-34
500	730	660	610	52	4	20-41
600	840	770	718	56	5	20-41
700	955	875	815	60	5	24-48
800	1070	990	930	64	5	24-48
900	1180	1090	1025	66	5	28-54
1000	1305	1210	1140	67	5	28-58
1200	1525	1420	1350	72	5	32-58
