ANSI Cast Steel Globe Valve

The sizes of valve connecting flange and butt-welding terminas can be designed according to customer's requirement.

Product Details

Technical specification：

Item	Content
Structural formation	Bolt-jointed bonnet outside stem yoke structure
Driving manner	Hand-operated
Design standard	ASME B16.34、BS 1873
Face to face	ASME B16.10
Flanged ends	ASME B16.5
Test&inspection	API598、BS6755

Note：

The sizes of valve connecting flange and butt-welding terminas can be designed according to customer's requirement.

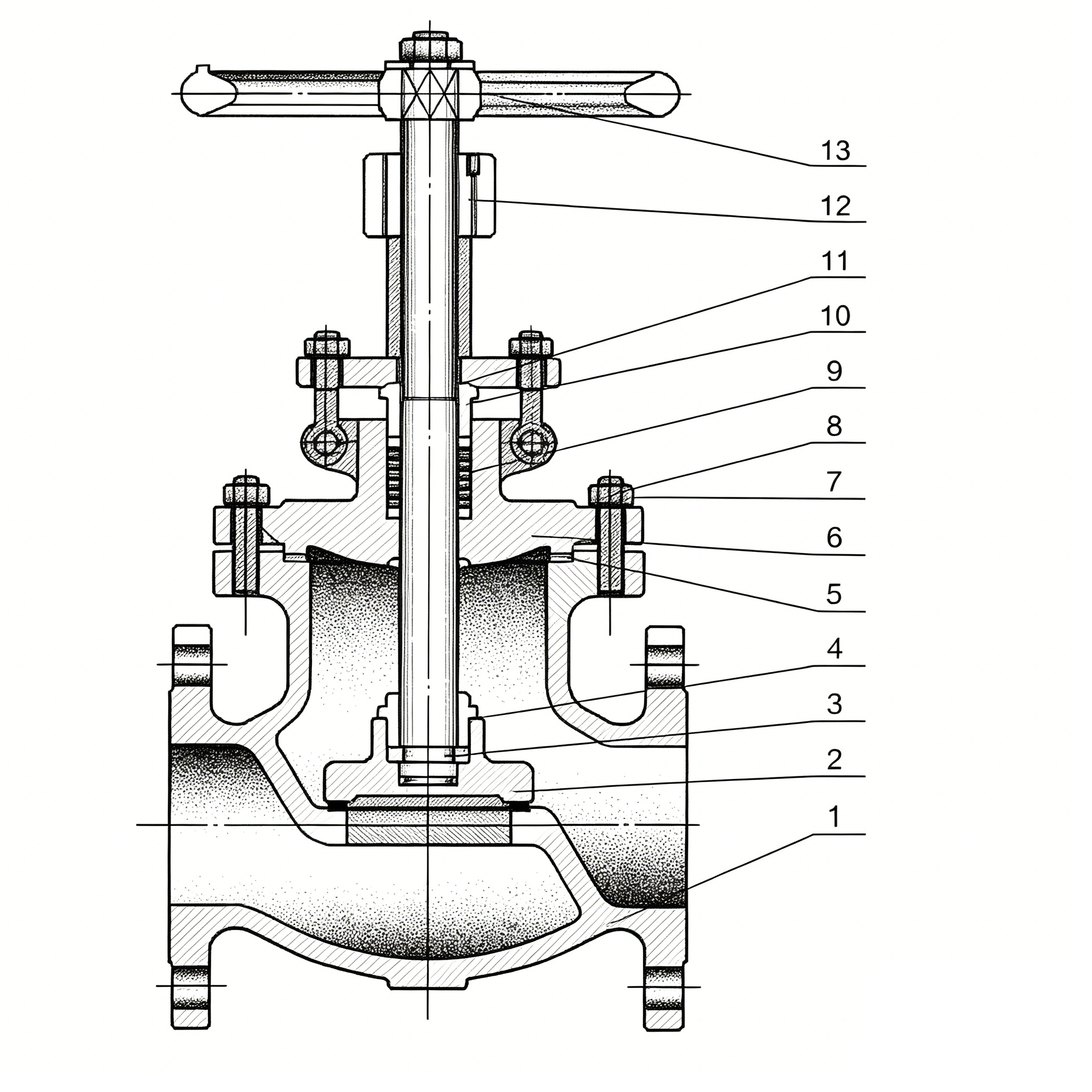

Major parts material form：

No	Part name	Material
1	Body	ASTM A216-WCB、ASTM217-WC1、WC6、WC9、C5ASTM A351-CF8、CF8M、CF8C、CF3、CF3M
2	Disc	ASTM A182.F6a、ASTM A182-F22ASTM A182-F304、F316、F321、F304L、F316L
3	Stem	ASTM A182.F6a、ASTM A182 F22ASTM A182-F304、F316、F321、F304L、F316L
4	Flat cover	ASTM A182.F6a、ASTM A182 F22ASTM A182-F304、F316、F321、F304L、F316L
5	Gasket	Graphite&Stainless steel, PTFE+Stainless steel
6	Bonnet	ASTM A216-WCB、ASTM217-WC1、WC6、WC9、WC5ASTM A351-CF8、CF8M、CF8C、CF3、CF3M
7	Stud	ASTM A193-B7、A193-B8、A193-B8MA193-B16
8	Nut	ASTM A194-2H、A194-8、A194-8M、A194-4
9	Packing	Graphite,PTFE
10	Packing press-sleeve	ASTM A182.F6a、ASTM A182-F304、F316、F321、F304L、F316L
11	Packing gland	ASTM A216-WCB、ASTM A351-CF8、CF8M、CF8C、CF3、CF3M
12	Valve stem nut	Copper alloy、ductile iron
13	Handwheel	ASTM A47-32510
