Bolted Bonnet Cast Steel Gate Valve

Model: Z40H、Z40Y、Z540H、Z540Y、Z940H、Z940Y

Product Details

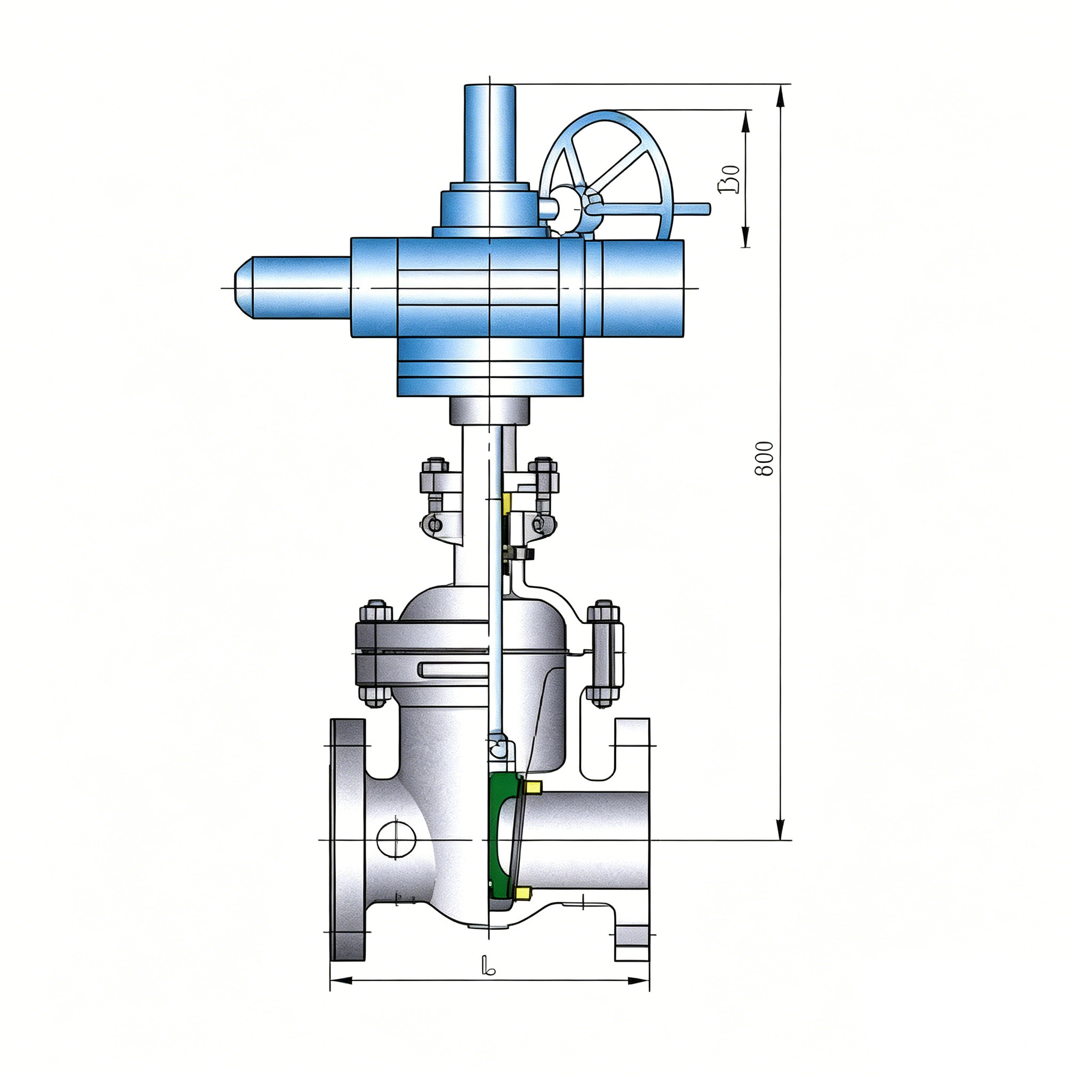

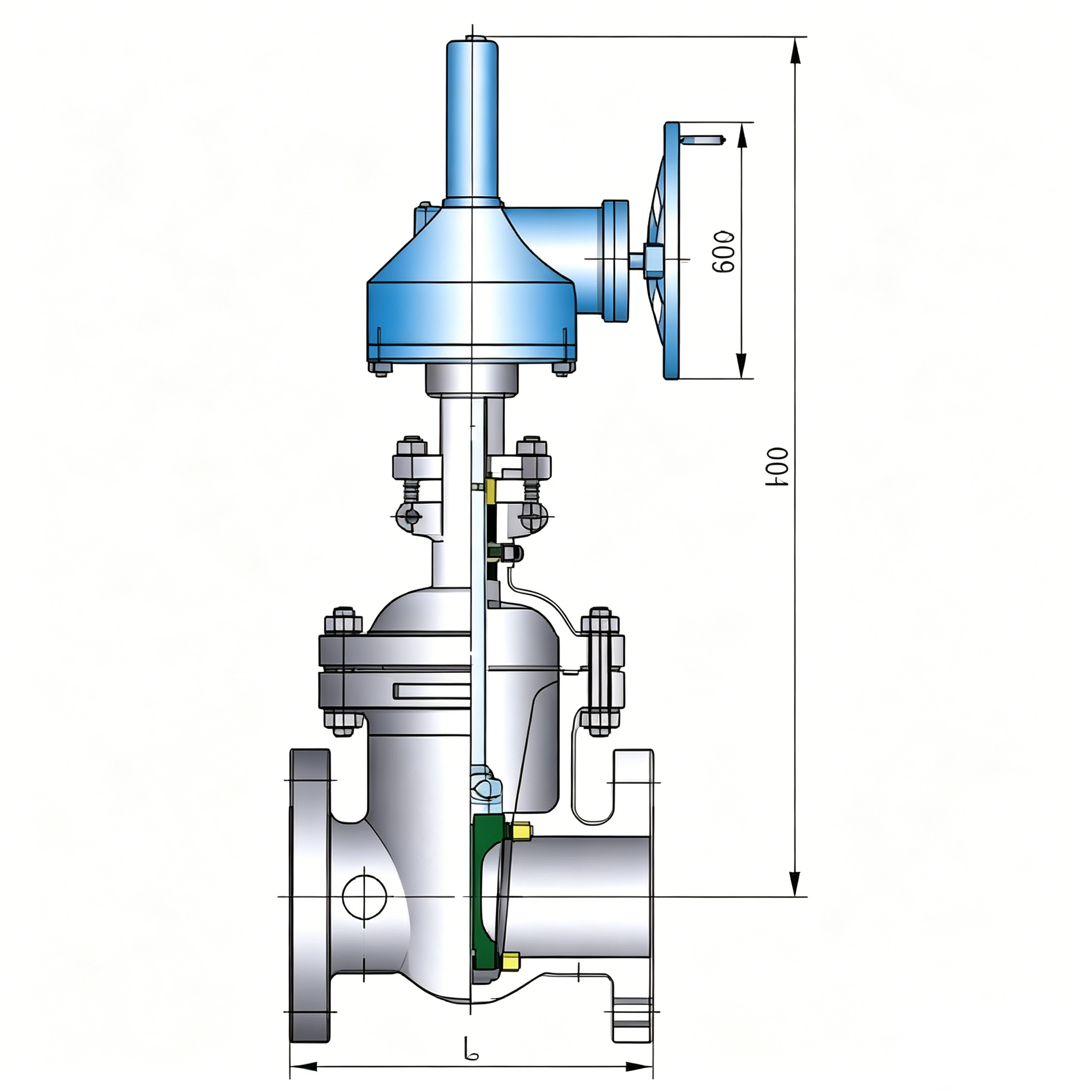

Main size of outside & weight：

Model: Z40H、Z40Y、Z540H、Z540Y、Z940H、Z940Y

Class	NPS (in)	L	（Hand operated）			（Gear operated）				（Electric driving）
			Ho	Do	Weight (kg)	H1	D1	Gear device	Weight (kg)	H2	D2	Electric driving	Weight (kg)
600	2	292	425	250	42	-	-	-	-	550	590	DZW20A	112
	2 1/2	330	485	300	62	-	-	-	-	600	590	DZW20A	135
	3	356	510	300	85	-	-	-	-	660	590	DZW30A	194
	4	432	610	400	120	-	-	-	-	780	590	DZW45A	223
	5	508	700	450	176	-	-	-	-	850	810	DZW60A	296
	6	559	820	500	230	840	310	BA-0	255	990	830	DZW90	385
	8	660	920	600	390	930	310	BA-0	418	1130	830	DZW120	541
	10	787	1080	600	620	1105	460	BA-1	674	1360	870	DZW180	816
	12	838	1220	650	880	1220	460	BA-1	935	1520	870	DZW250	1090
	14	889	1473	700	1350	1380	610	BA-2	1440	1730	1170	DZW350	1560
	16	991	1651	800	1700	1435	610	BA-2	1790	1840	1170	DZW500	1950
	18	1092	1727	800	2140	1915	610	BA-2	2230	2370	1060	DZW800	2390
	20	1194	2019	800	2450	2095	610	BAA-3	2540	2800	1060	DZW800	2580
	24	1397	-	-	-	2155	610	BAA-3	4550	3160	1060	DZW1000	4580
	26	1448	-	-	-	2271	610	BAA-3	5260	-	-	-	-
	28	1549	-	-	-	2436	610	BAA-3	5960	-	-	-	-
	30	1651	-	-	-	2577	610	BAA-3	6700	-	-	-	-
	32	1778	-	-	-	2781	610	BAA-3	8312	-	-	-	-
	36	2083	-	-	-	3113	610	BAA-3	10125	-	-	-	-
	40	2149	-	-	-	3241	610	BAA-3	14300	-	-	-	-
	42	2260	-	-	-	3572	610	BAA-3	16460	-	-	-	-
	48	2667	-	-	-	4261	610	BAA-3	22900	-	-	-	-
