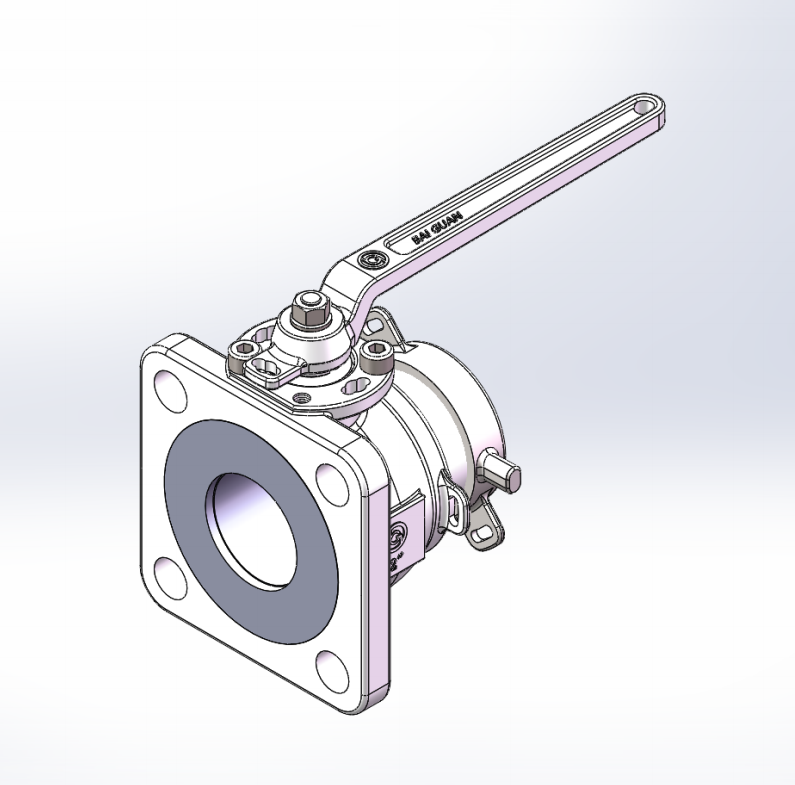

DN50 2” BSP Airline Ball Valve

2” BSP Airline ball valve, with flange inlet and 1.5”BSP thread outlet. The air through it when loading and discharging. It also used with N2 protection in special condition. 1/4”BSP gauge connection and handle with TIR. The airline valve must be opened before other operations.

Email : panlijuan@bgjx.cn

WhatsApp : +8618136395626

PDF Download

Product Details

Specification

Design Press. 10bar（145PSI）

Test Press. 15Bar （217.5PSI）

Temperature -40℃～200℃ （-40℉～392℉）

Standard EN14432 AND ASME Ⅷ DIV 1

Sealing PTFE

Tank Connection 4×φ18×PCD125

Outlet 2＂BSP male

Weight 8Kg

Fitting Details

BG023900X-X

TYPE

DWG	Material
BG023900P-X	304
BG023900R-X	316L
BG023900T-X	Carbon

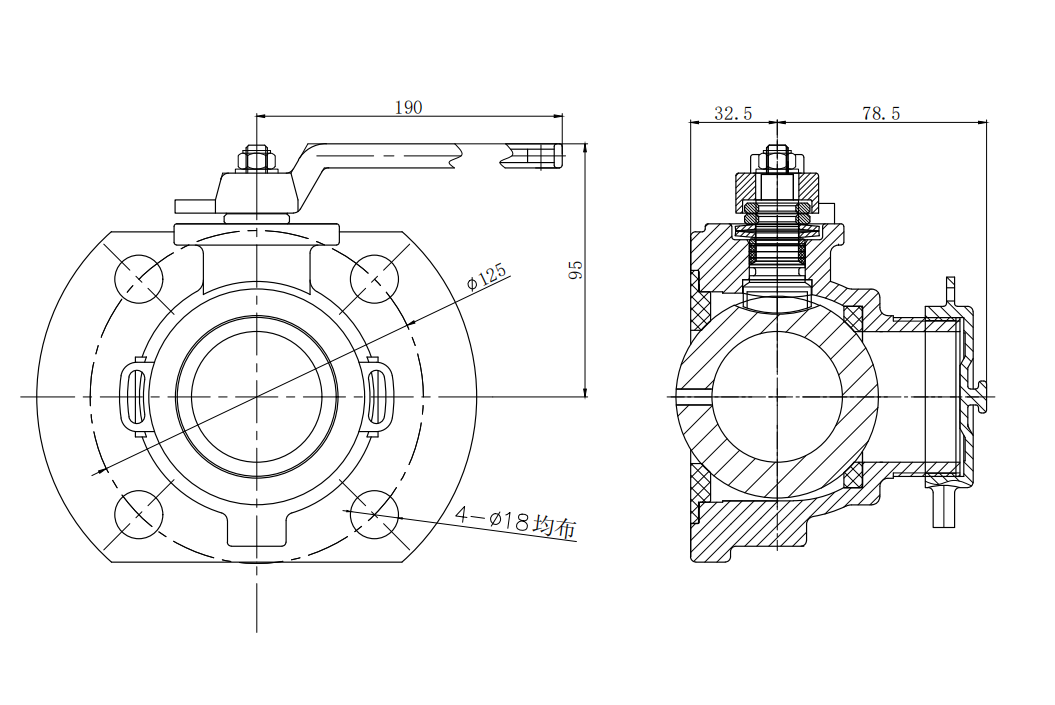

DWG

Handle Position

L/R

BG023900X-L

BG023900X-R

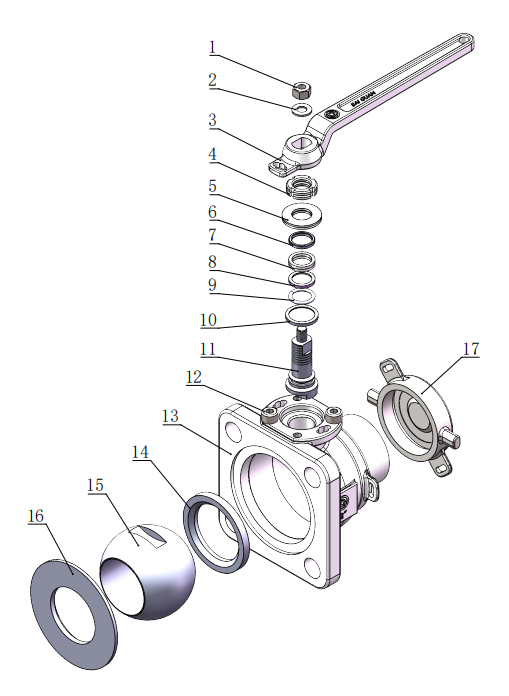

Part Drawing

No.	Part No.	Part Name
1	BG800306P	Nut
2	BG800604P	Washer
3	BG021711P	Handle
4	BG800314P	Nut
5	BG800608P	Spring washer
6	BG025901P	SS ring
7	BG025902F	PTFE
8	BG025903F	Seal
9	BG025904U	O ring
10	BG025902F	PTFE
11	BG025905RS	Stem
12	BG800105P	Bolt
13	BG025908X	Valve body
14	BG025909F	PTFE seal
15	BG025906X	Ball
16	BG025907F	PTFE seal
17	BG807530X-X	Dust Cover ASSY
17	BG807531X-X	Dust Cover ASSY

Installation Drawing

Item	Part Name	Part No.
1	Weld In Flange	BG2500P-190X
2	Weld In Flange	BG3140F-355-3X
3	PTFE Gasket	BG802842FQ
4	Screw Kits	BG820109P
5	Gauge guard	BG023905P
6	Pressure Gauge(Range 0-Xbar，1/4＂BSP) Gauge	BG804500P-X
7	2” BSP Airline Ball Valve	BG023900X-X
