Forged Steel Globe Valve

The sizes of valve connecting flange and butt-welding terminas can be designed according to customer's requirement.

Product Details

Technical specification：

Item	Content
Structural formation	Bolt-jointed bonnet outside stem yoke structure (Pressure sealed)
Driving manner	Hand-operated
Design standard	API602、BS 5352
Face to face	ASME B16.10
Flanged ends	ASME B16.5
Test&inspection	API598、BS6755

Note：

The sizes of valve connecting flange and butt-welding terminas can be designed according to customer's requirement.

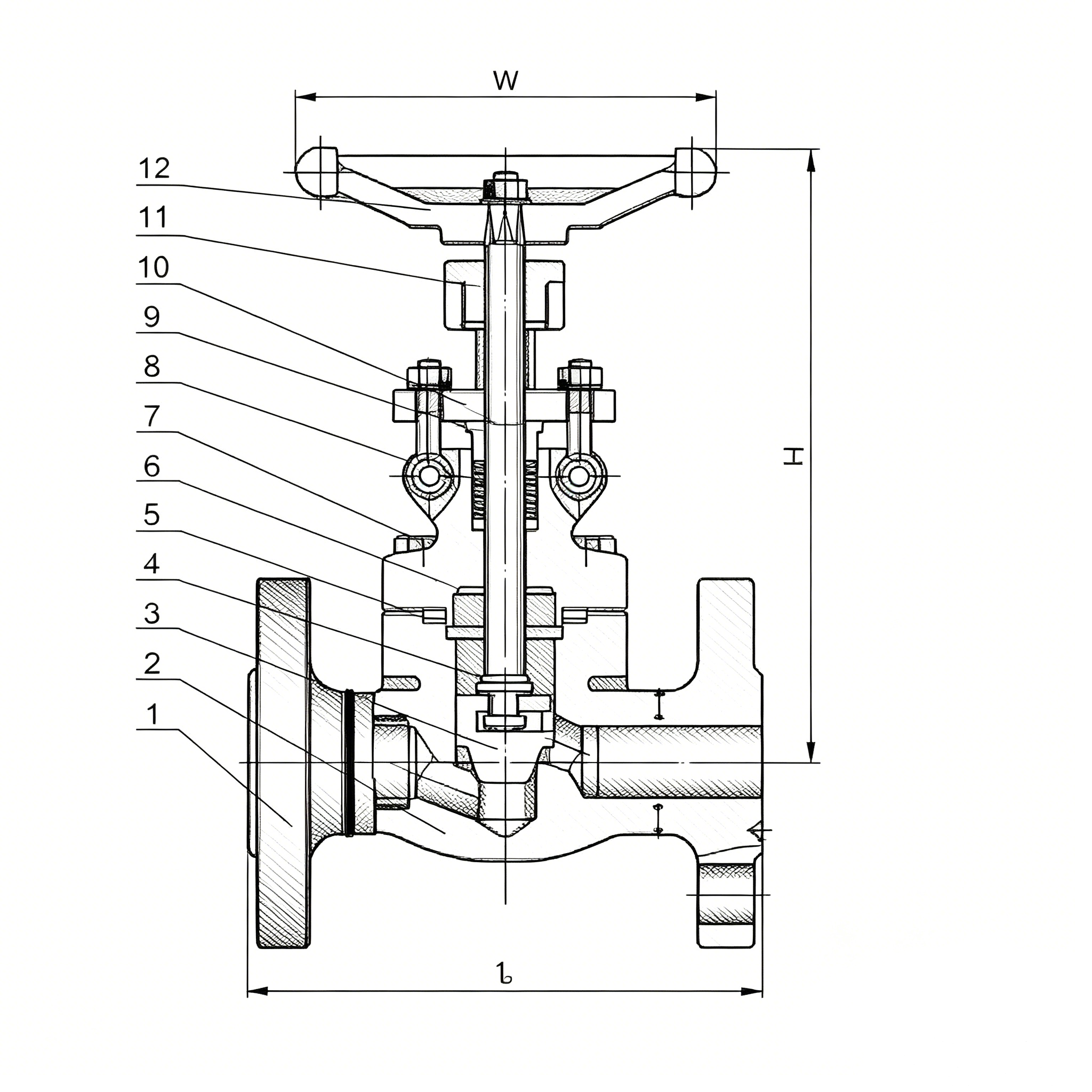

Major parts material form：

No	Part name	Material
1	Flange	ASTM A105、ASTM A182-F11、F22、F5、F9ASTM A182-F304、F316、F321、F304L、F316L
2	Body	ASTM A105、ASTM A182-F11、F22、F5、F9ASTM A182-F304、F316、F321、F304L、F316L
3	Disc	ASTM A105、ASTM A182-F11、F22、F5、F9ASTM A182-F304、F316、F321、F304L、F316L
4	Stem	ASTM A182Gr.F6a、ASTM A182F22ASTM A182-F304、F316、F321、F304L、F316L
5	Gasket	Graphite & stainless steel
6	Bonnet	ASTM A105、ASTM A182-F11、F22、F5、F9ASTM A182-F304、F316、F321、F304L、F316L
7	Bolt	ASTM A193-B7、A230-B8、A193-B8M、A193-B16
8	Packing	Graphite
9	Stuffing cover	ASTM A105、ASTM A182-F11、F22、F5、F9ASTM A182-F304、F316、F321、F304L、F316L
10	Gland	ASTM A105、ASTM A182-F11、F22、F5、F9ASTM A182-F304、F316、F321、F304L、F316L
11	Valve stem nut	Copper alloy、Nitrided steel
12	Handwheel	ASTM A47-32510
