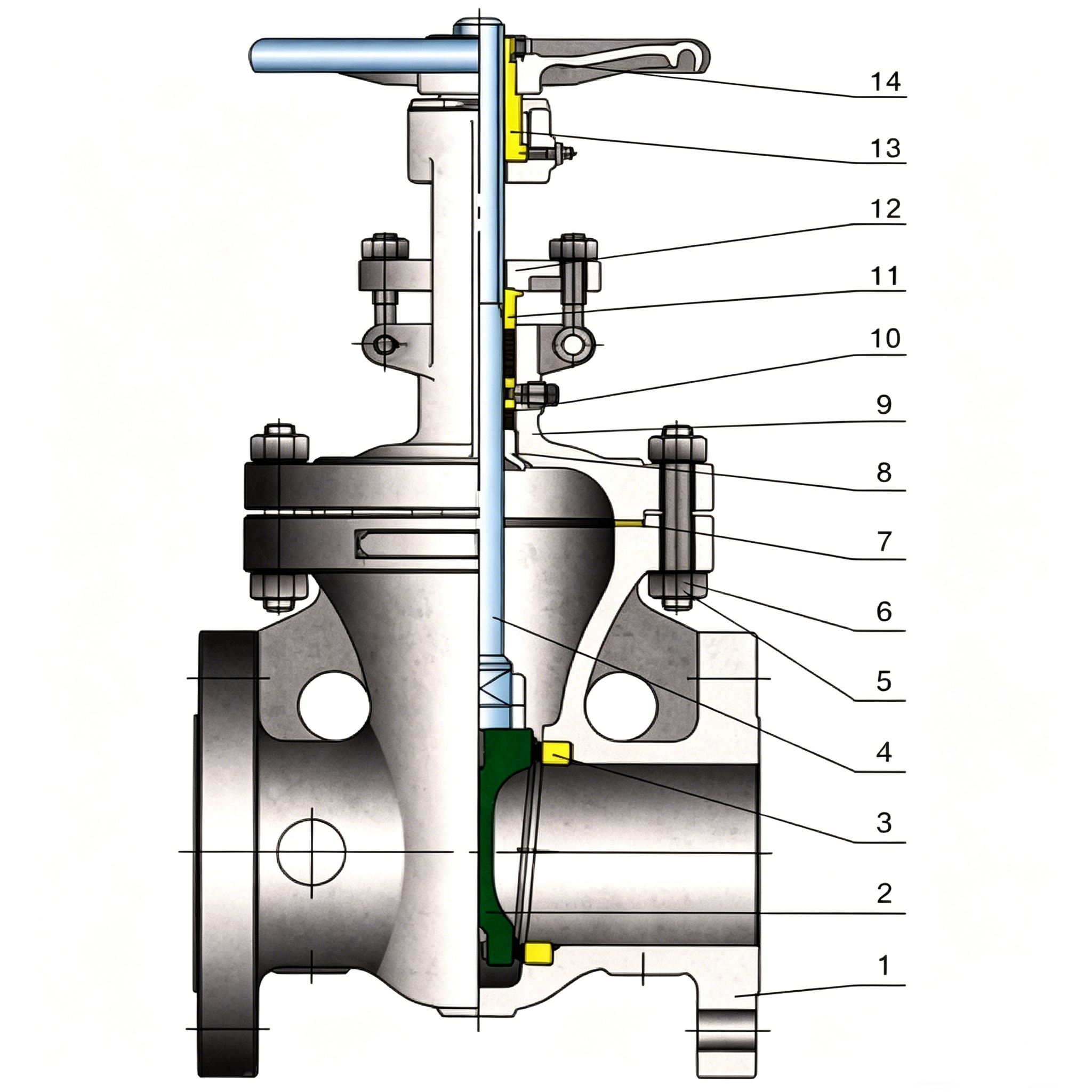

GB Cast Steel Gate Valve

Flanged ends cast steel gate valve are used to cut or connect the pipe media under norminal pressure between PN1.6~42.0MPa(Class150~2500),working temperatures ≤600℃,in oil industry,chemical industry ,fossil-fired power plants.

Email : panlijuan@bgjx.cn

WhatsApp : +8618136395626

PDF Download

Product Details

Products design features Flanged ends cast steel gate valve are used to cut or connect the pipe media under norminal pressure between PN1.6~42.0MPa(Class150~2500),working temperatures ≤600℃,in oil industry,chemical industry ,fossil-fired power plants. The main structure features include: 1.Both design and manufacture are carried out strictly following GB/T 12334,JB/T 7746,API600 and API602,The products featrure a reasonable structure,reliable seal,good performance and nice modeling. 2.Co hard alloy welded sealing surface,which is wearing resistant,erosion proof,abrasion proof and long-lived. 3.The surface and the adjusting media ofthe valve shaft are nitrogenized so that it is erosion and abrasion resistant. 4.PN≥ 15.0MPa ( Class900 ) ,the middle cavity uses a self-tightening sealing structure to have the sealing performance reinforced along with the pressure rise so as to ensure the sealing performance. 5.There is no backward sealing structure in the valve, so the sealing id reliable. 6.The material of the filling and the flange size can be chosen and matched according to the applications and requirements of the use's. That can satisfies all kinds of working requirements.

Main parameter of the products：

Project	Content
Serial models	(Hs、Ps)Z11H、(Hs、Ps)Z11Y、(Ps)Z41H、(Ps)Z440H、(Ps)Z440Y、(Ps)Z540H、(Ps)Z540Y、(Ps)Z940H、(Ps)Z940Y
Pressure grade range	PN1.6~42.0MPa(Class150~2500)
Drift diameter range	DN15~1000mm(1"~40")
Driving manner	Hand wheel driving	Gear driving and electric driving
Scope of application	Class150~300(PN1.6~5.0)1/2"~24"(DN15~600mm)	Class400~600(PN6.4~10.0)1/2"~12"(DN15~300mm)	Class900~2500(PN15.0~42.0)1/2"~10"(DN15~250mm)	2"~40"(DN50~1000mm)

Product Performance Specification：

Pressure		（MPa）Testing pressure at constant temperature (Mpa)			Applicable temperature	Applicable medium
		The shell testing	Seal and test	Have and seal testing
(Mpa)Nominalratingpressure(PN)	1.6	2.4	1.76	1.76	-196℃~600℃	Water,oil,steam,Corrosive medium,low temperature mediumetc etc.
	2.5	3.8	2.75	2.75
	4.0	6.0	4.4	4.4
	6.4	9.6	7.04	7.04
	10.0	15.0	11.0	11.0
	16.0	24.0	17.6	17.6
	25.0	37.5	27.5	27.5
Pound grade(Class)	150	3.0	2.2	2.2
	300	7.5	5.5	5.5
	600	15.0	11.0	11.0
	900	22.5	16.5	16.5
	1500	37.5	27.5	27.5
	2500	63.0	46.2	46.2
