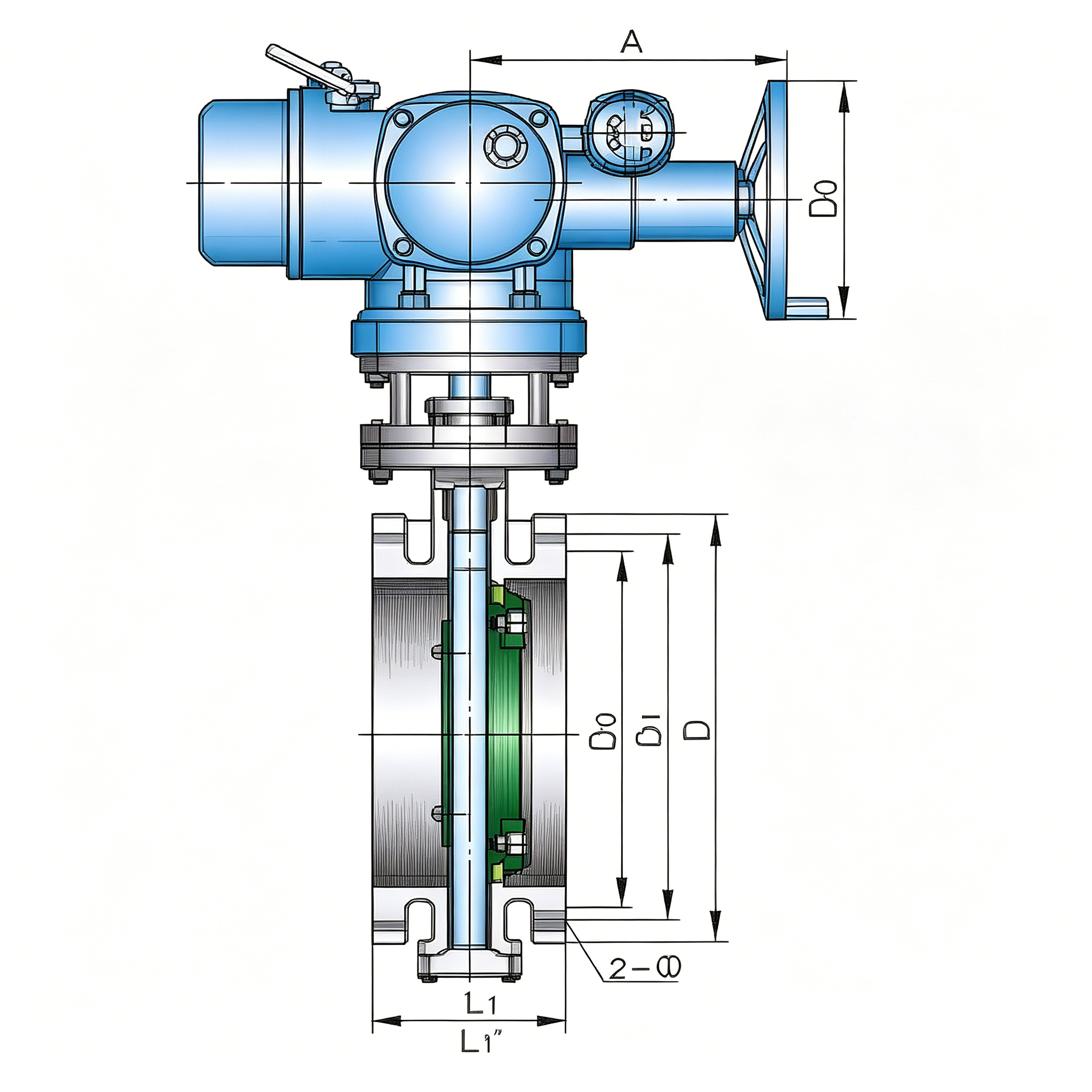

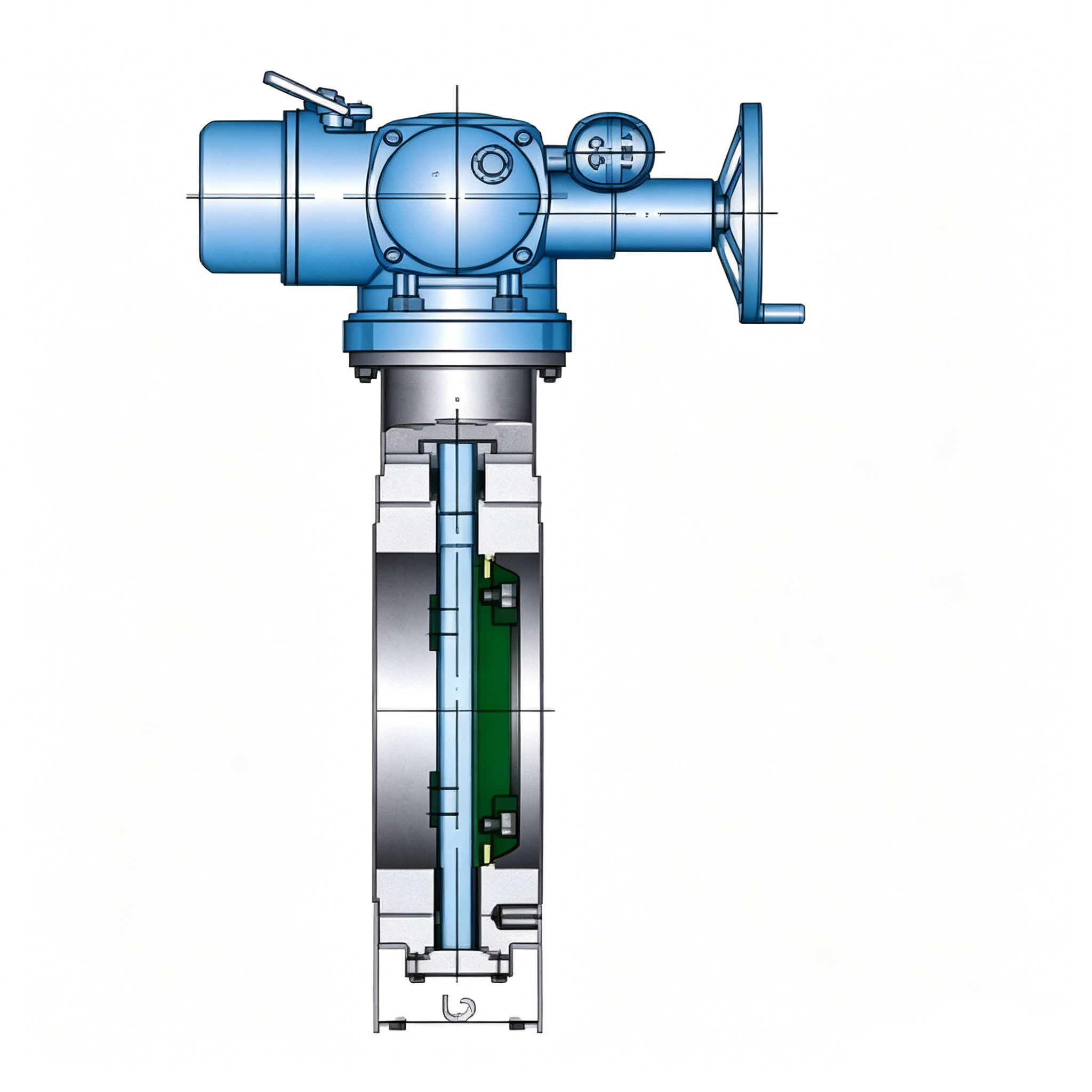

Main size of outside
Model: D9416、7/2(3、4、5)FIX、H、W、Y
| PN (MPa) | DN (mm) | Dimensions L1 (Short series, mm) | Dimensions L1' (Long series, mm) | Dimensions L2 (mm) | Dimensions L3 (mm) | Dimensions H0 (mm) | Dimensions H (mm) | Dimensions A (mm) | Dimensions B (mm) | Dimensions Do (mm) | Electric device |
| 0.6 / 1.0 | 80 | 114 | 180 | 180 | 49 | 185 | 320 | 180 | 178 | - | DQW10-1 |
| 0.6 / 1.0 | 100 | 127 | 190 | 190 | 56 | 198 | 340 | 180 | 178 | - | DQW10-1 |
| 0.6 / 1.0 | 125 | 140 | 200 | 200 | 64 | 205 | 415 | 180 | 178 | - | DQW20-1 |
| 0.6 / 1.0 | 150 | 140 | 210 | 210 | 70 | 241 | 415 | 180 | 178 | - | DQW20-1 |
| 0.6 / 1.0 | 200 | 152 | 230 | 230 | 71 | 263 | 512 | 370 | 235 | 365 | DZW10 |
| 0.6 / 1.0 | 250 | 165 | 250 | 250 | 76 | 292 | 570 | 370 | 235 | 365 | DZW10 |
| 0.6 / 1.0 | 300 | 178 | 270 | 270 | 83 | 340 | 668 | 370 | 235 | 365 | DZW20(II) |
| 0.6 / 1.0 | 350 | 190 | 290 | 290 | 92 | 385 | 745 | 370 | 235 | 365 | DZW20(II) |
| 0.6 / 1.0 | 400 | 216 | 310 | 310 | 102 | 425 | 827 | 370 | 235 | 365 | DZW30(II) |
| 0.6 / 1.0 | 450 | 222 | 330 | 330 | 114 | 462 | 915 | 370 | 235 | 365 | DZW30(II) |
| 0.6 / 1.0 | 500 | 229 | 350 | 350 | 127 | 500 | 995 | 370 | 235 | 365 | DZW30(II) |
| 0.6 / 1.0 | 600 | 267 | 390 | 390 | 154 | 605 | 1183 | 515 | 245 | 470 | DZW60 |
| 0.6 / 1.0 | 700 | 292 | 430 | 430 | 165 | 734 | 1460 | 515 | 245 | 470 | DZW60 |
| 0.6 / 1.0 | 800 | 318 | 470 | 470 | 190 | 803 | 1589 | 515 | 245 | 470 | DZW60 |
| 0.6 / 1.0 | 900 | 330 | 510 | 510 | 203 | 990 | 1856 | 540 | 360 | 550 | DZW90(II) |
| 0.6 / 1.0 | 1000 | 410 | 550 | 550 | 216 | 1050 | 1958 | 540 | 360 | 550 | DZW90(II) |
| 0.6 / 1.0 | 1200 | 470 | 630 | 630 | 254 | 1165 | 2013 | 540 | 360 | 550 | DZW120(II) |
| 0.6 / 1.0 | 1400 | 530 | 710 | 710 | 297 | 1312 | 2186 | 540 | 360 | 550 | DZW120(II) |
| 0.6 / 1.0 | 1600 | 600 | 790 | 790 | 318 | 1438 | 2531 | 565 | 385 | 320 | DZW250 |
| 0.6 / 1.0 | 1800 | 670 | 870 | 870 | 356 | 1580 | 2795 | 565 | 385 | 320 | DZW250 |
| 0.6 / 1.0 | 2000 | 760 | 950 | 950 | 406 | 1726 | 3055 | 770 | 300 | 570 | DZW500 |
