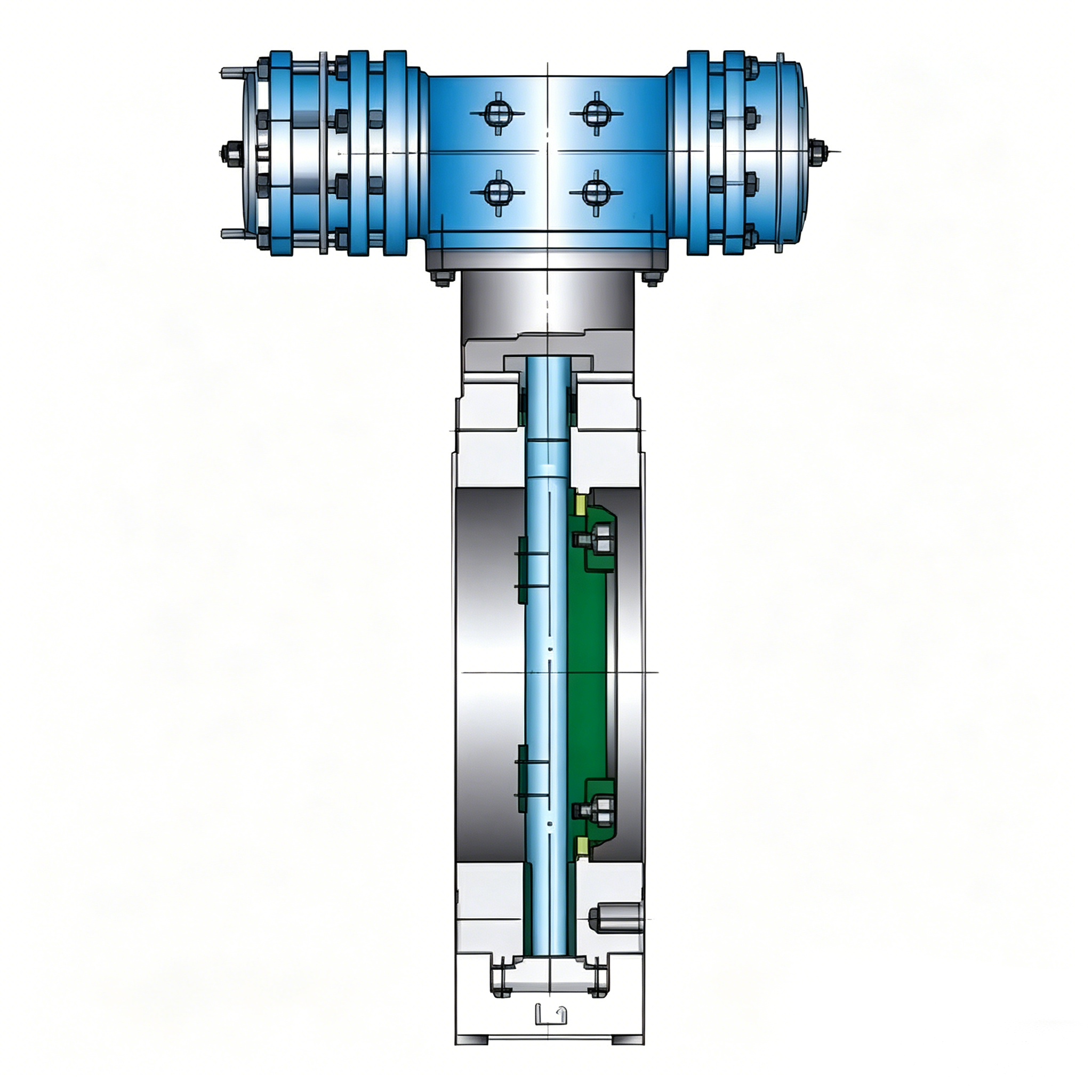

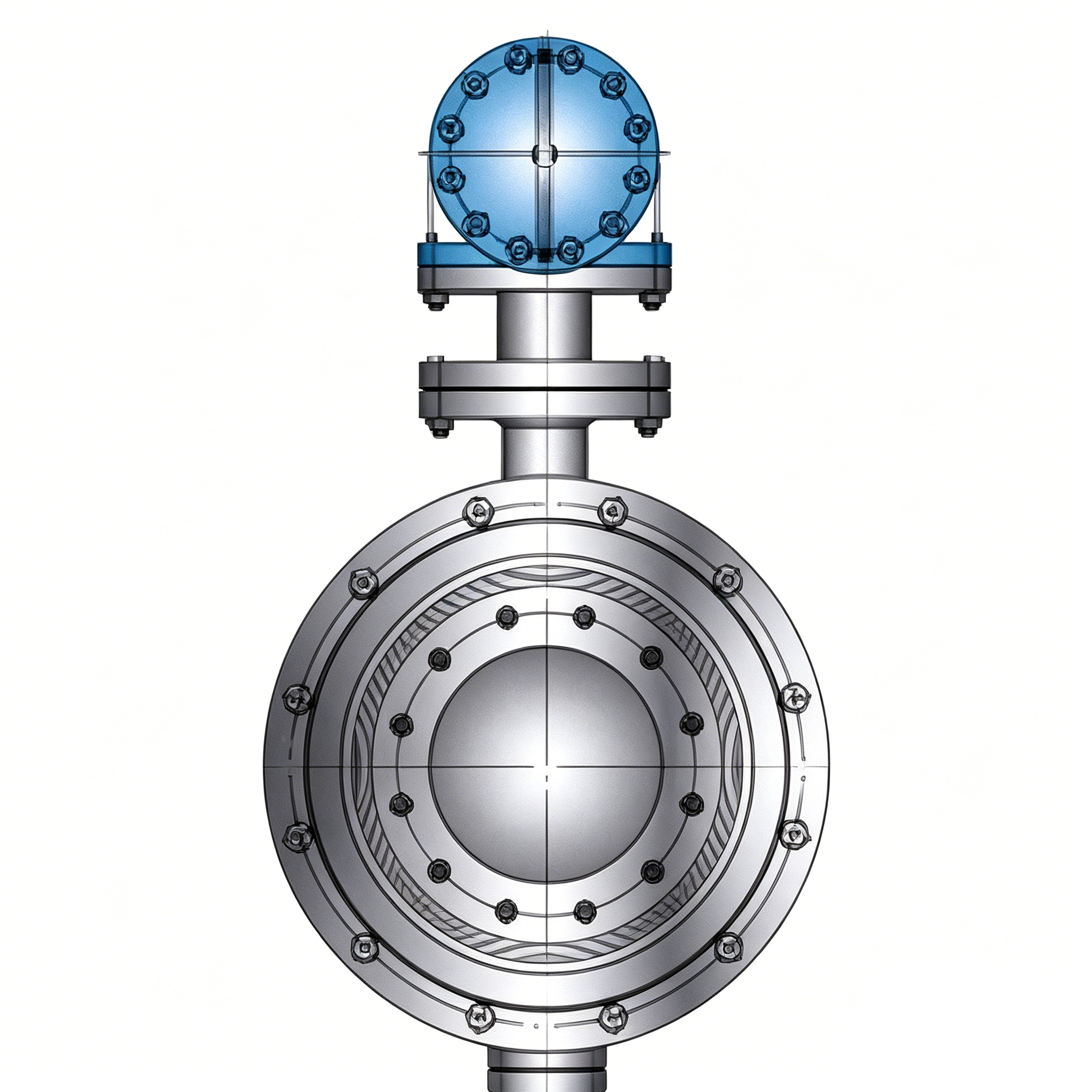

Pneumatic Driven Butterfly Valve

Model: D64(6, 7)2(3, 4, 5)F(X, H, W, Y)

Email : panlijuan@bgjx.cn

WhatsApp : +8618136395626

PDF Download

Product Details

Main size of outside

Model: D64(6, 7)2(3, 4, 5)F(X, H, W, Y)

PN (MPa)	DN (mm)	Dimensions L1 (Short series, mm)	Dimensions L1' (Long series, mm)	Dimensions L2 (mm)	Dimensions L3 (mm)	Dimensions H0 (mm)	Dimensions H (mm)	Dimensions A (mm)	Pneumatic device
0.6	200	152	230	230	71	325	695	275	TAW13
0.6	250	165	250	250	76	355	750	275	TAW13
0.6	300	178	270	270	83	475	935	378	TAW17
0.6	350	190	290	290	92	510	1000	378	TAW17
0.6	400	216	310	310	102	590	1145	378	TAW17
0.6	450	222	330	330	114	632	1205	530	TAW20
0.6	500	229	350	350	127	665	1256	530	TAW20
0.6	600	267	390	390	154	830	1526	530	TAW20
0.6	700	292	430	430	165	903	1640	530	TAW20
0.6	800	318	470	470	190	972	1786	680	TAW28
0.6	900	330	510	510	203	1052	1917	680	TAW28
0.6	1000	410	550	550	216	1170	2600	680	TAW28
1.0	200	152	230	230	71	367	740	275	TAW13
1.0	250	165	250	250	76	443	900	378	TAW17
1.0	300	178	270	270	83	493	990	378	TAW17
1.0	350	190	290	290	92	575	1155	378	TAW17
1.0	400	216	310	310	102	600	1205	530	TAW20
1.0	450	222	330	330	114	643	1290	530	TAW20
1.0	500	229	350	350	127	705	1395	530	TAW20
1.0	600	267	390	390	154	838	1665	530	TAW20
1.0	700	292	430	430	165	942	1882	680	TAW28
1.0	800	318	470	470	190	1066	2093	680	TAW28
