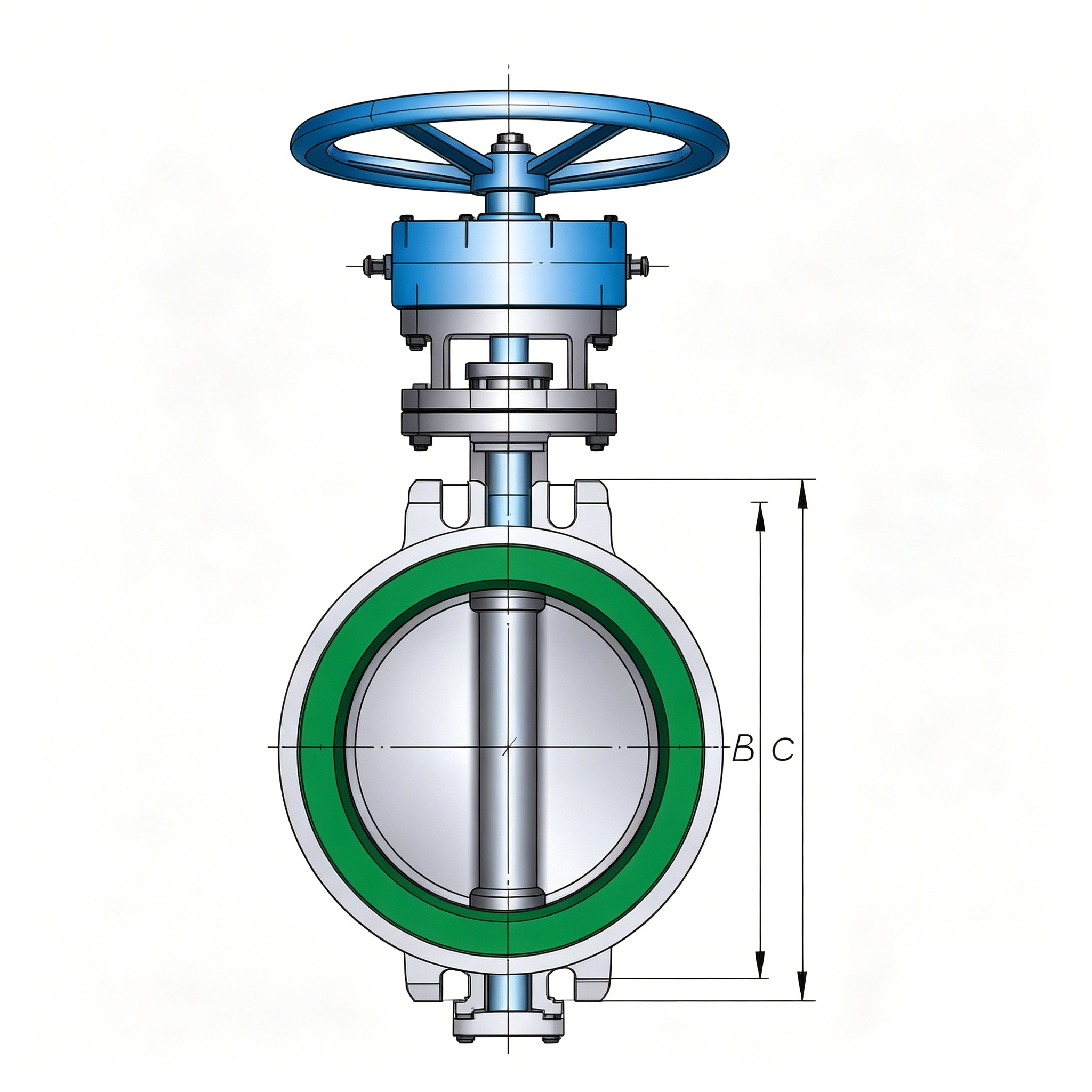

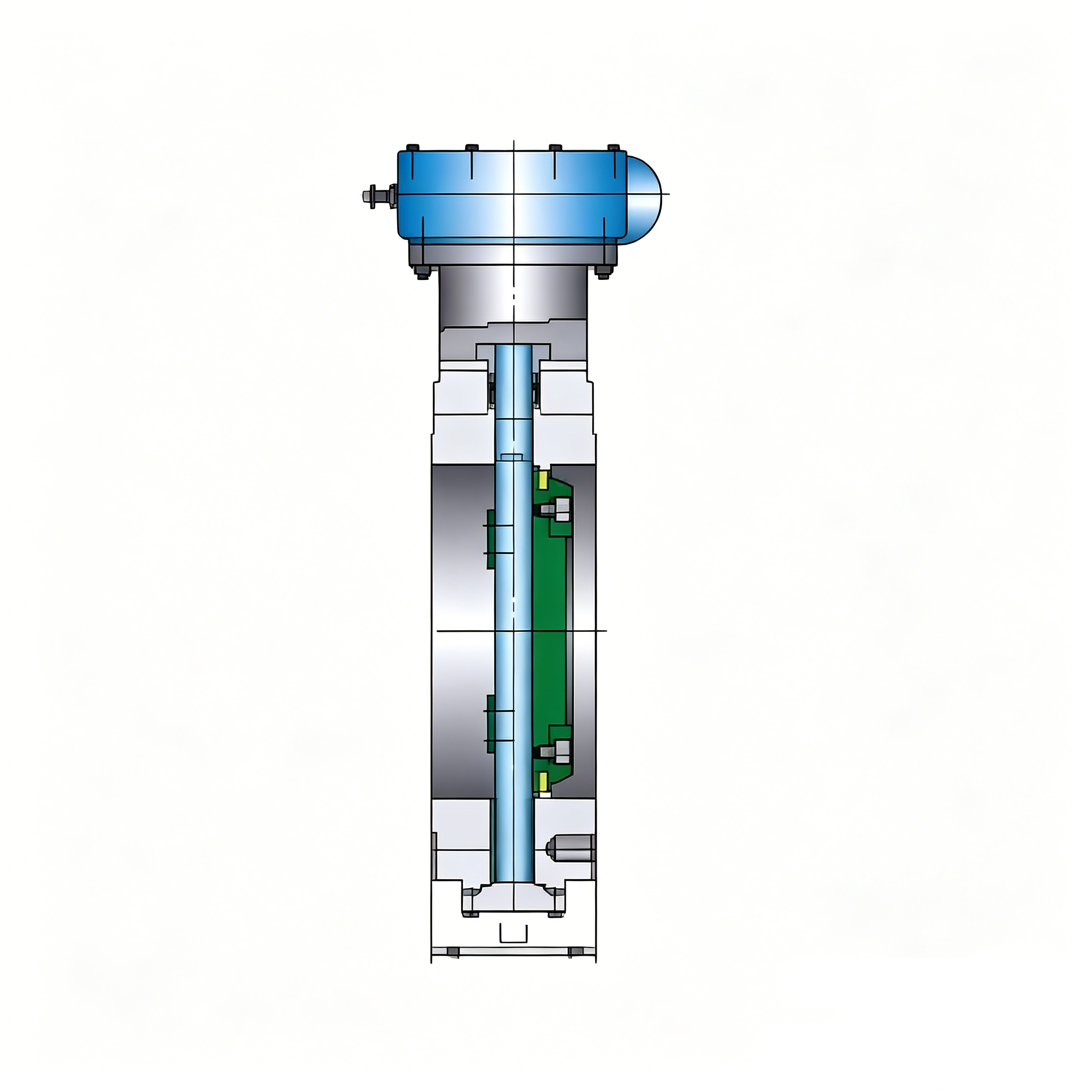

Main size of outside
Model: D3416、7/2(3、4、5)FIX、H、W、Y
| PN (MPa) | DN (mm) | Dimensions L1 (mm) | Dimensions L1' (mm) | Dimensions L2 (mm) | Dimensions L3 (mm) | Dimensions H0 (mm) | Dimensions H (mm) | Dimensions A (mm) | Dimensions B (mm) | Dimensions Do (mm) | Worm device |
| 0.6 / 1.0 | 65 | 112 | 170 | 170 | 46 | 180 | 290 | 63 | 140 | 180 | O type |
| 0.6 / 1.0 | 80 | 114 | 180 | 180 | 49 | 190 | 320 | 63 | 140 | 180 | O type |
| 0.6 / 1.0 | 100 | 127 | 190 | 190 | 56 | 198 | 342 | 63 | 140 | 240 | A type |
| 0.6 / 1.0 | 150 | 140 | 210 | 210 | 70 | 246 | 415 | 63 | 140 | 240 | A type |
| 0.6 / 1.0 | 200 | 152 | 230 | 230 | 71 | 298 | 470 | 84 | 170 | 300 | B type |
| 0.6 / 1.0 | 250 | 165 | 250 | 250 | 76 | 328 | 535 | 84 | 170 | 300 | B type |
| 0.6 / 1.0 | 300 | 178 | 270 | 270 | 83 | 365 | 606 | 108 | 200 | 400 | C type |
| 0.6 / 1.0 | 350 | 190 | 290 | 290 | 92 | 408 | 695 | 108 | 200 | 400 | C type |
| 0.6 / 1.0 | 400 | 216 | 310 | 310 | 102 | 446 | 755 | 128 | 240 | 400 | C type |
| 0.6 / 1.0 | 450 | 222 | 330 | 330 | 114 | 475 | 815 | 152 | 240 | 600 | D type |
| 0.6 / 1.0 | 500 | 229 | 350 | 350 | 127 | 525 | 905 | 168 | 300 | 600 | D type |
| 0.6 / 1.0 | 600 | 267 | 390 | 390 | 154 | 610 | 1050 | 320 | 192 | 600 | D type |
| 0.6 / 1.0 | 700 | 292 | 430 | 430 | 165 | 795 | 1276 | 237 | 192 | 350 | DA type |
| 0.6 / 1.0 | 800 | 318 | 470 | 470 | 190 | 837 | 1384 | 237 | 168 | 350 | DA type |
| 0.6 / 1.0 | 900 | 330 | 510 | 510 | 203 | 885 | 1500 | 237 | 168 | 350 | DA type |
| 0.6 / 1.0 | 1000 | 410 | 550 | 550 | 216 | 946 | 1620 | 785 | 30 | 450 | DB type |
| 0.6 / 1.0 | 1200 | 470 | 630 | 630 | 254 | 1165 | 2185 | 785 | 30 | 450 | DB type |
| 0.6 / 1.0 | 1400 | 530 | 710 | 710 | 279 | 1310 | 2315 | 785 | 30 | 450 | DB type |
| 0.6 / 1.0 | 1600 | 600 | 790 | 790 | 318 | 1440 | 2675 | 785 | 30 | 450 | DB type |
| 0.6 / 1.0 | 1800 | 670 | 870 | 870 | 356 | 1580 | 2920 | 865 | 50 | 600 | DC type |
| 0.6 / 1.0 | 2000 | 760 | 950 | 950 | 406 | 1725 | 3170 | 865 | 50 | 600 | DC type |
| 0.6 / 1.0 | 2200 | 760 | 1000 | 1000 | - | 1845 | 3415 | 865 | 50 | 600 | DC type |
| 0.6 / 1.0 | 2400 | 760 | 1100 | 1100 | - | 1972 | 3670 | 865 | 50 | 600 | DC type |
| 0.6 / 1.0 | 2600 | 760 | 1200 | 1200 | - | 2100 | 3830 | 865 | 50 | 600 | DD type |
| 0.6 / 1.0 | 2800 | 760 | 1300 | 1300 | - | 2235 | 4100 | 865 | 50 | 600 | DD type |
| 0.6 / 1.0 | 3000 | 760 | 1400 | 1400 | - | 2370 | 4380 | 865 | 50 | 600 | DD type |
