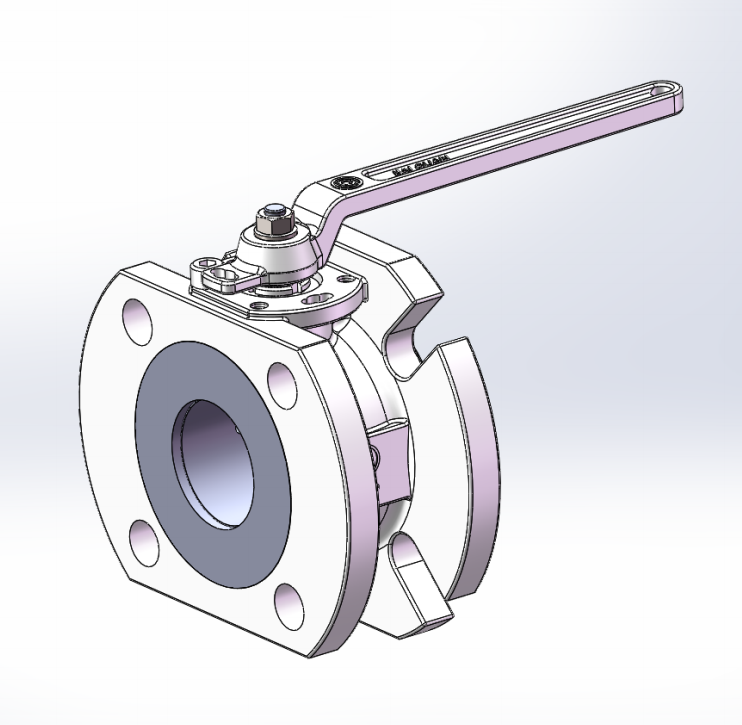

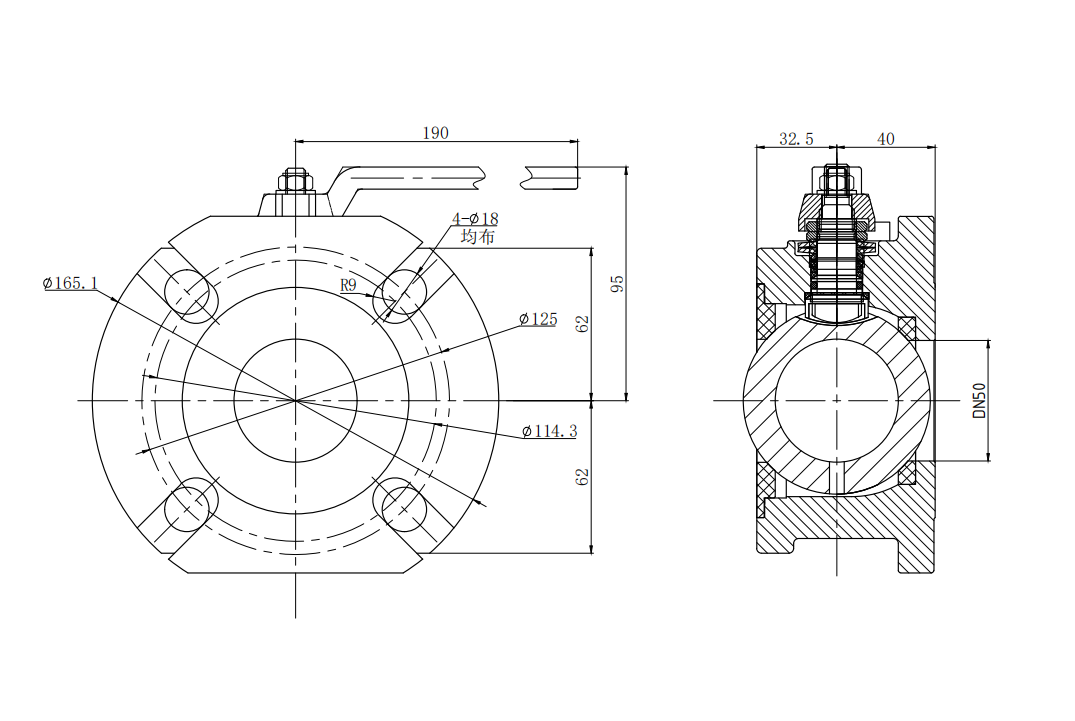

DN50 2” Flanged Airline Ball Valve

2” Flanged Airline ball valve, with flange inlet and outlet. The air through it when loading and discharging. It also used with N2 protection in special condition. 1/4”BSP gauge connection and handle with TIR. The airline valve must be opened before other operations.

Email : panlijuan@bgjx.cn

WhatsApp : +8618136395626

PDF Download

Product Details

Specification

Design Press. 10bar（145PSI）

Test Press. 15Bar （217.5PSI）

Temperature -40℃～200℃ （-40℉～392℉）

Standard EN14432 AND ASME Ⅷ DIV 1

Sealing PTFE

Tank Connection 4×φ18×PCD125

Outlet 4×φ18×PCD114.3-200

Weight 8Kg

Fitting Details

BG021700X-XX

TYPE

DWG	Material
BG021700P-XX	304
BG021700R-XX	316L
BG021700T-XX	Carbon

DWG	TYPE
DWG	Handle Position L/R	Gauge guard Y/N
BG021700X-LN	L	×
BG021700X-LY	L	√
BG021700X-RN	R	×
BG021700X-RY	R	√

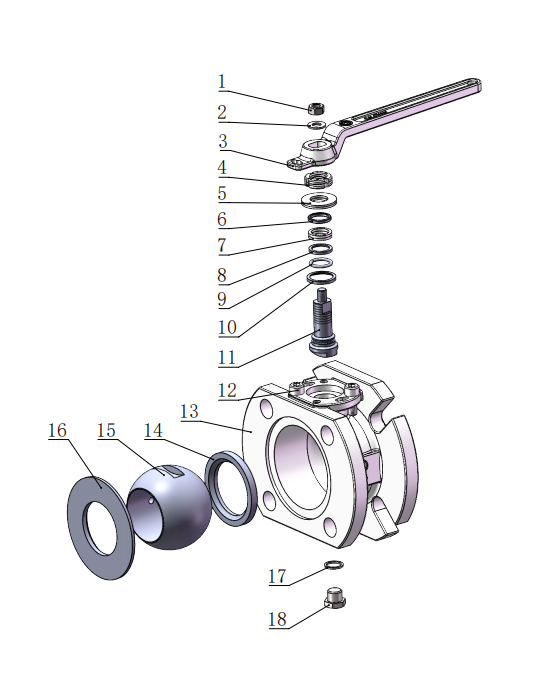

Part Drawing

No.	DWG	Part Name
1	BG800306P	Nut
2	BG800604P	Washer
3	BG021711P	Handle
4	BG800314P	Nut
5	BG800608P	Spring washer
6	BG021710R	SS ring
7	BG021709F	PTFE
8	BG021708F	PTFE
9	BG021707U	O-Ring
10	BG021706F	O Ring
11	BG021705RS	Stem
12	BG800105P	Bolt
13	BG021701R	Valve body
14	BG021702F	PTFE seal
15	BG021704R	Ball
16	BG021703F	PTFE seal
17、18	BG020113X	Screw ASSY

Installation Drawing

Item	Part Name	Part No.
1	Weld In Flange	BG2500P-190X
2	Weld In Flange	BG3140F-355-3X
3	Blind Flange	BG4239F-370-CX
4	PTFE Gasket	BG802842FQ
5	Screw Kits	BG820109P
6	Screw Kits	BG803192P
7	Pressure Gauge(Range 0-Xbar，1/4＂BSP)	BG804500P-X
8	2” Flanged Airline Ball Valve	BG021700X-XX
