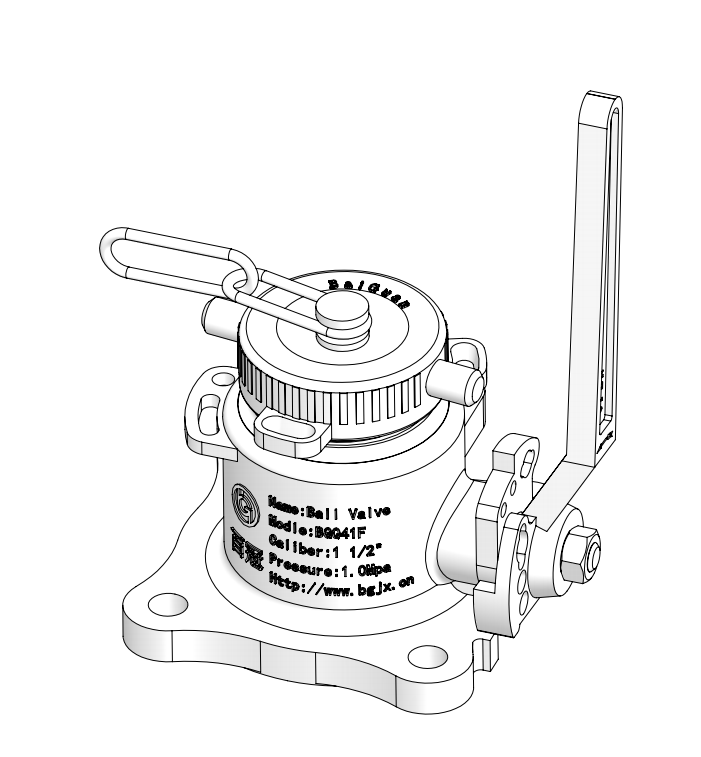

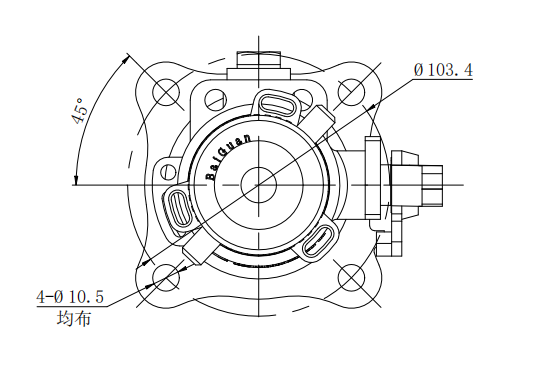

DN40 1.5” BSP Airline Ball Valve

1.5” BSP Airline ball valve, with flange inlet and 1.5”BSP thread outlet. The air through it when loading and discharging. It also used with N2 protection in special condition. 1/4”BSP gauge connection and handle with TIR. The airline valve must be opened before other operations.

Email : panlijuan@bgjx.cn

WhatsApp : +8618136395626

PDF Download

Product Details

Specification

Design Press. 10bar（145PSI）

Test Press. 15Bar （217.5PSI）

Temperature -40℃～200℃ （-40℉～392℉）

Standard EN14432 AND ASME Ⅷ DIV 1

Sealing PTFE

Weight 1.5Kg

Fitting Details

BG020100X-X

TYPE

DWG	Material
BG020100P-X	304
BG020100R-X	316L
BG020100T-X	WCB/Carbon

DWG	Options
DWG	Filter ASSY	Gauge ASSY
BG020100X-N	×	×
BG020100X-WY	√	√
BG020100X-W	√	×
BG020100X-Y	×	√

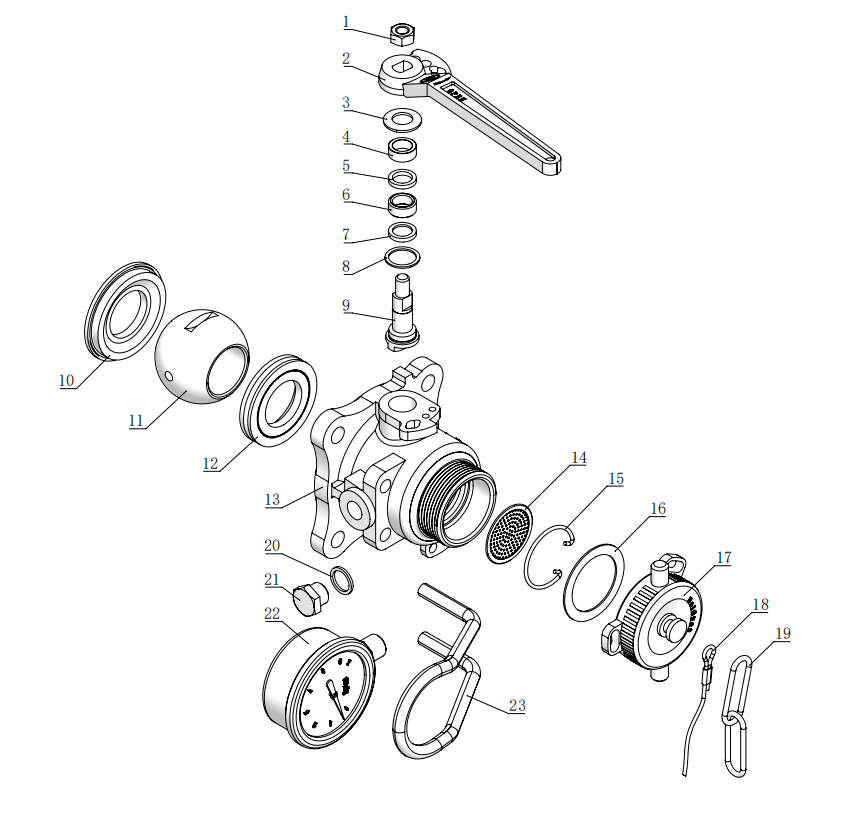

Part Drawing

No.	Part No.	Part Name
1	BG800313P	Self-locking nut
2	BG020107P	Handle
3	BG801001P	Washer
4、6	BG020111R	SS ring
5、7、8	BG020116F	Seal PKG for spindle
9	BG020112RS	Spindle
10、12	BG020117F	Seal PKG for ball
11	BG020103X	Ball
13	BG020102X	Valve body
14、15	BG020119R	Filter ASSY
16、17、19	BG020120X	Dust cover ASSY
16、17、18	BG020121X	Dust cover ASSY
20、21	BG020118X	Screw and seal
22	BG804500P-7	Pressure Gauge (Range0-7bar，1/4＂BSP) Gauge
23	BG020115P	Pressure Gauge Bracket (Material304)Gauge guard
Repair Kit	BG020126X	9、11
Seal Kit	BG020127F	5、7、8、10、12、16、20

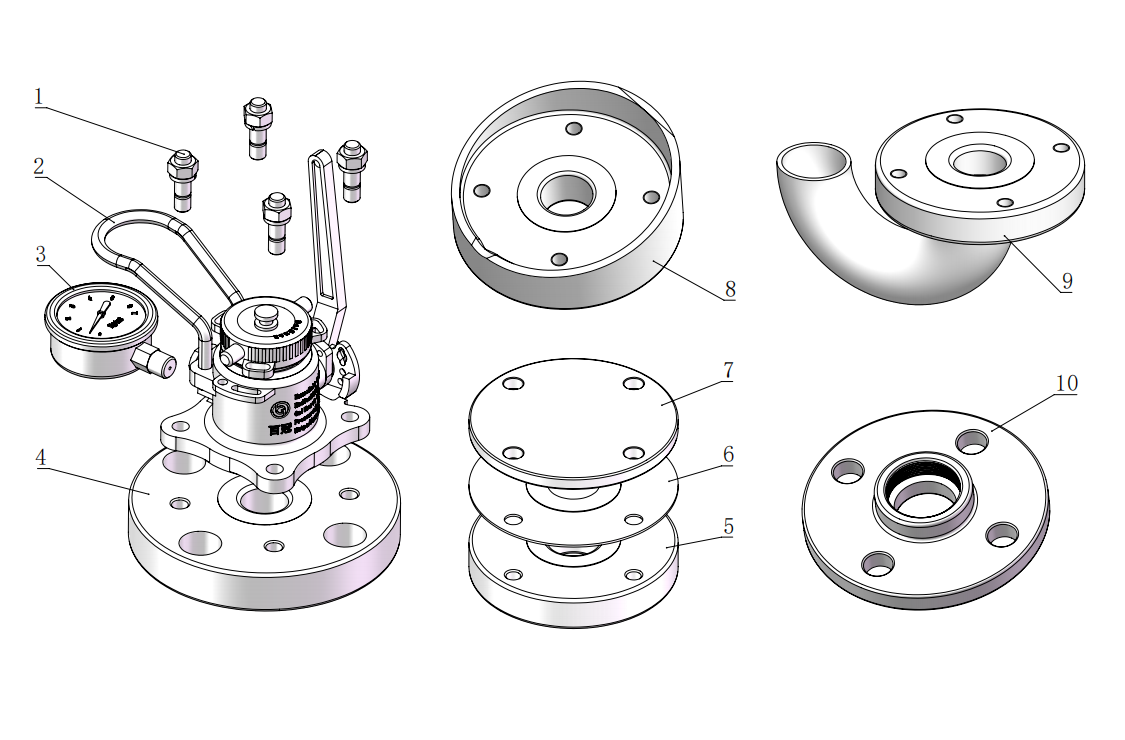

Installation Drawing

Item	Part Name	Part No.
1	Screw Kits	BG820130P
2	DN40 BSP Airline Ball Valve	BG020100X-X
3	Pressure Gauge (Range 0-Xbar，1/4＂BSP)	BG804500P-X
4	Adapter Flange	BG0060P-350X
5	Weld In Flange	BG0025F-350X
6	PTFE Gasket	BG802870FQ
7	Blind Flange	BG5700P-192X
8	Weld In Flange	BG0032F-350X
9	Welded Flange (Welded U-Shaped Bend)	BG901071X-B
10	Adapter	BG901303X
